ELECTRICAL ENCLOSURES

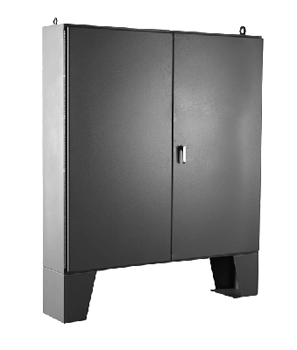

Type 12 Double Door Floor Mount Painted Enclosures - Less Panel

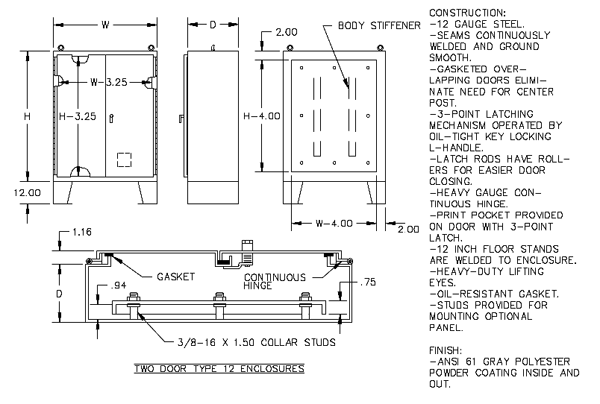

Double Door Floor Mount Cut Sheetpdf logo
Corresponding Catalog Pagepdf logo



for large quantities call factory --- for custom sizes call factory
Height" Width" Depth" Catalog Number Weight List Price UPC_12Digit Panel Catalog Number List Price Weight UPC_12Digit
54 42 8 D54428N12 210   806101017905 D5442P   62 806101018117
60 48 8 D60488N12 319   806101017912 D6048P   103 806101016236
60 48 10 D604810N12 330   806101017929 D6048P   103 806101016236
60 60 10 D606010N12 390   806101017936 D6060P   130 806101016243
72 60 10 D726010N12 450   806101017943 D7260P   158 806101016250
72 72 10 D727210N12 525   806101017950 D7272P   191 806101016267
60 48 12 D604812N12 360   806101017967 D6048P   103 806101016236
60 60 12 D606012N12 400   806101017974 D6060P   130 806101016243
72 60 12 D726012N12 475   806101017981 D7260P   158 806101016250
72 72 12 D727212N12 560   806101017998 D7272P   191 806101016267
60 48 16 D604816N12 420   806101018001 D6048P   103 806101016236
60 60 16 D606016N12 520   806101018018 D6060P   130 806101016243
72 60 16 D726016N12 582   806101018025 D7260P   158 806101016250
72 72 16 D727216N12 630   806101018032 D7272P   191 806101016267
60 48 20 D604820N12 486   806101018049 D6048P   103 806101016236
72 60 20 D726020N12 577   806101018056 D7260P   158 806101016250
72 72 20 D727220N12 650   806101018063 D7272P   191 806101016267
60 48 24 D604824N12 500   806101018070 D6048P   103 806101016236
60 60 24 D606024N12 566   806101018087 D6060P   130 806101016243
72 60 24 D726024N12 614   806101018094 D7260P   158 806101016250
72 72 24 D727224N12 690   806101018100 D7272P   191 806101016267
