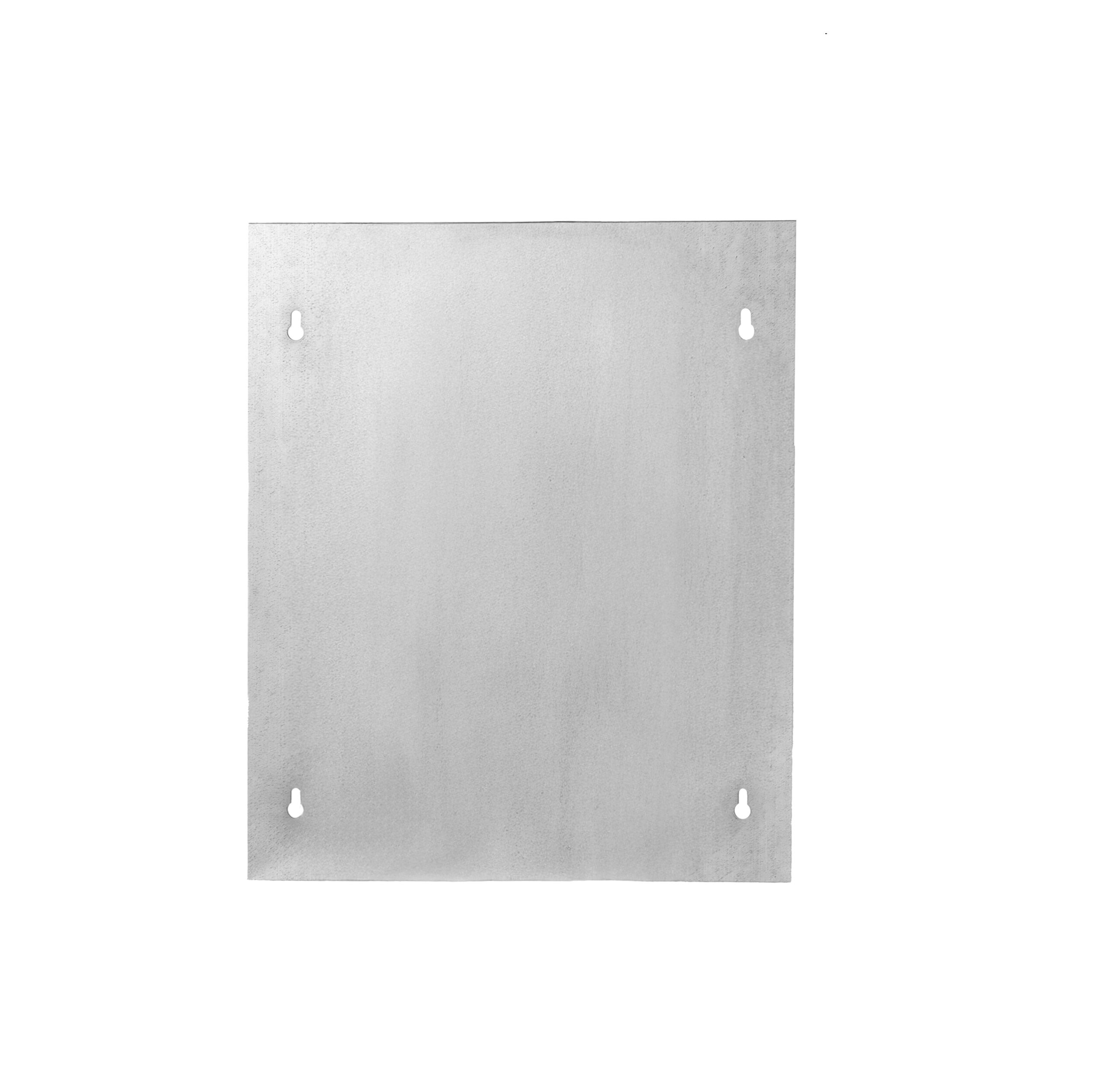

TYPE 1 GALVANIZED FLUSH COVER ONLY

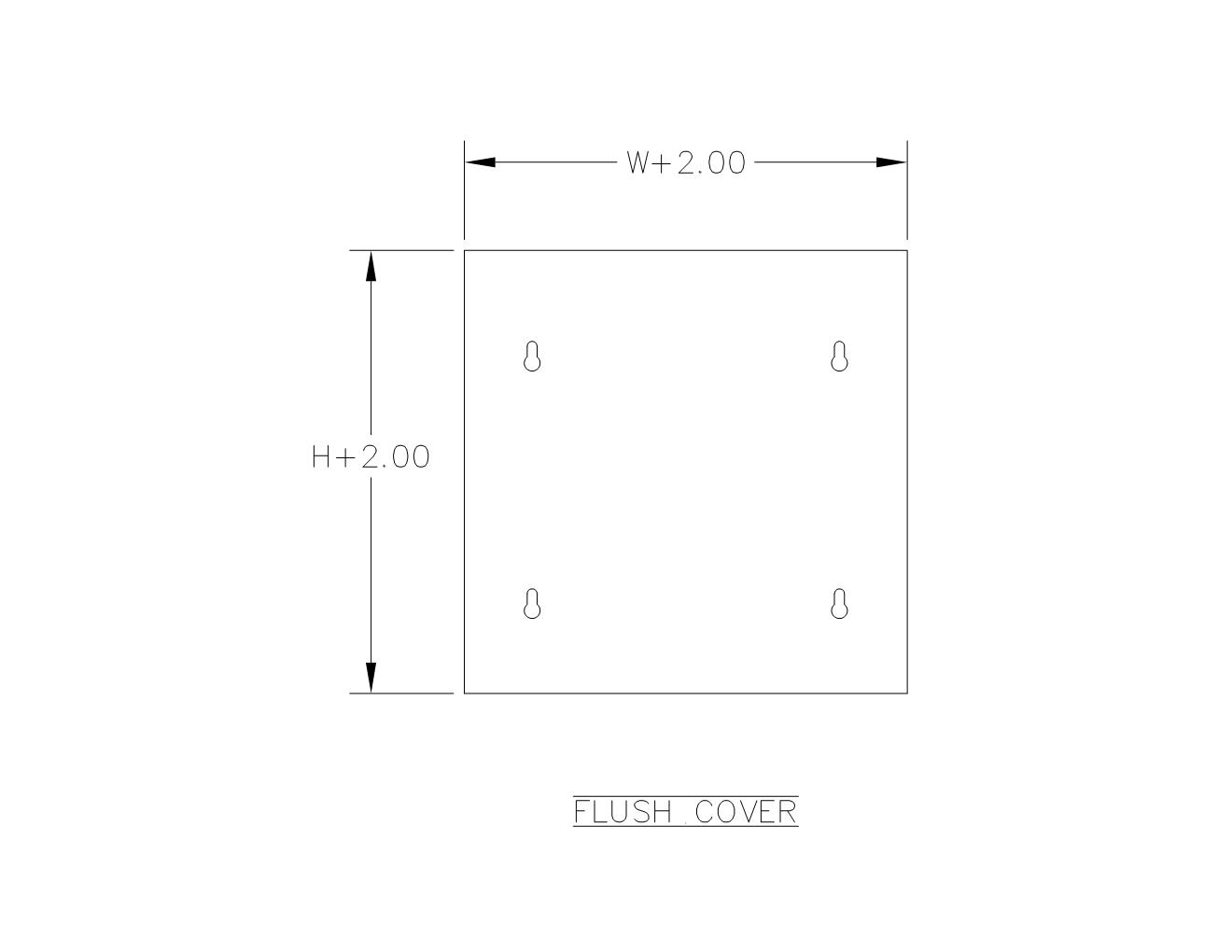

TYPE 1 GALVANIZED FLUSH COVER ONLY - Image 2
,
, ,

TYPE 1 GALVANIZED FLUSH COVER ONLY

Construction:
  • CODE GAUGE G90 GALVANIZED STEEL
  • FLAT REMOVABLE COVERS FASTENED WITH PLATED STEEL SCREWS
  • KEYHOLE SCREW SLOTS IN THE COVER PERMIT REMOVAL OF THE COVER WITHOUT EXTRACTING THE SCREWS.
Finish:
  • TYPE 1 SCREW COVERS ARE PROVIDED IN GALVANIZED G-60 or G-90

Indoor use primarily to provide protection against contact with the enclosed equipment and against a limited amount of falling dirt.

DOWNLOAD SPEC SHEET

SKU: FC COVER Categories: , ,

For large quantities or custom sizes call factory
Enclosure Size HxWxDCatalog NumberWeightUPC_12Digit
6x644FC1 lbs806101021810
8x866FC1 lbs806101021827
10x886FC2 lbs806101021834
10x1088FC2 lbs806101021841
12x10108FC3 lbs806101021858
14x10128FC4 lbs806101021872
12x121010FC4 lbs806101021865
14x121210FC4 lbs806101021889
14x141212FC5 lbs806101021896
17x141512FC6 lbs806101021902
20x141812FC7 lbs806101021926
17x171515FC7 lbs806101021919
20x171815FC8 lbs806101021933
18x181616FC8 lbs
20x201818FC10 lbs806101021940
26x202418FC12 lbs806101021957
26x262424FC16 lbs806101021964
