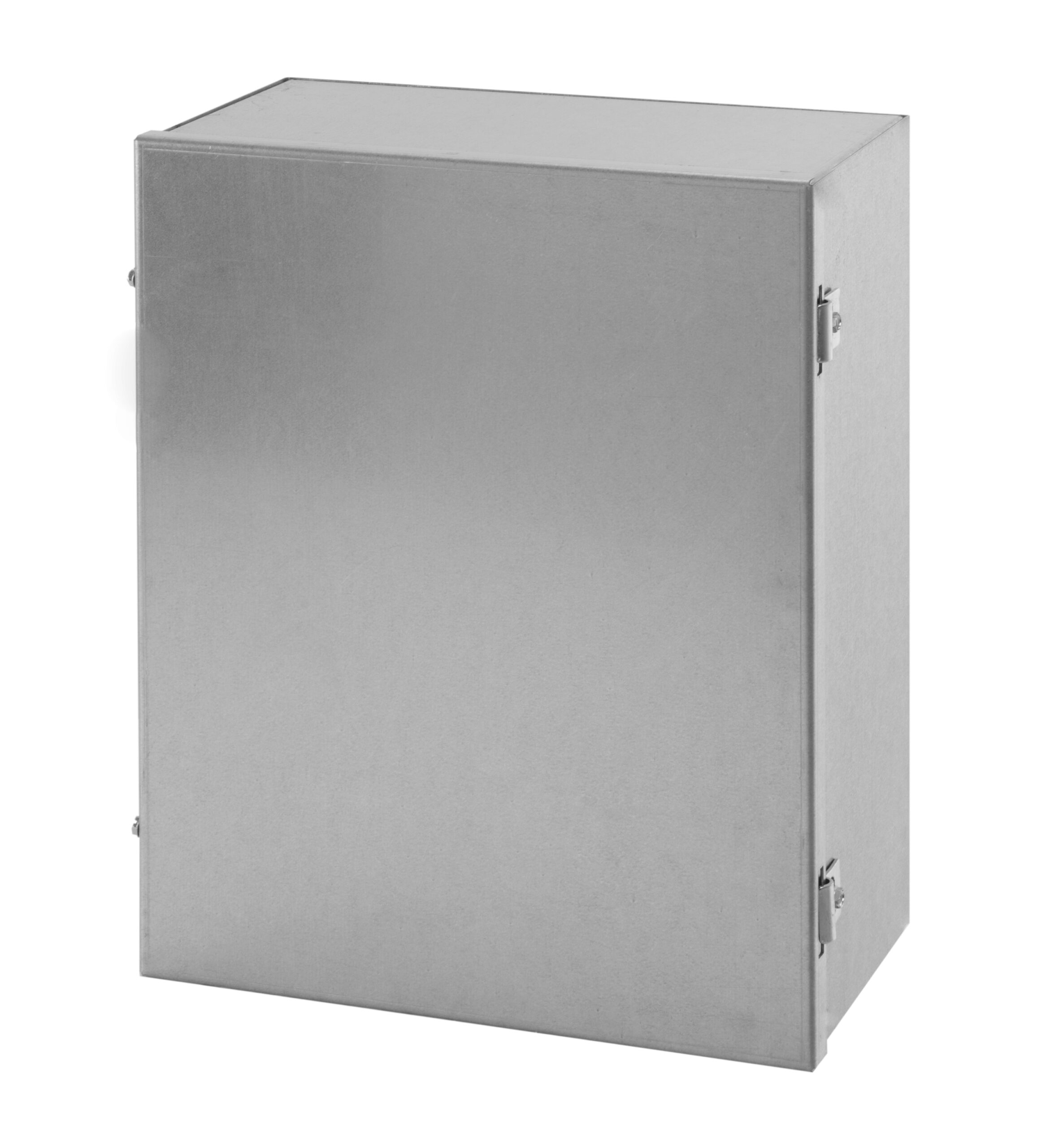

TYPE 1 GALVANIZED HINGED COVER BOX NO KO'S
TYPE 1 GALVANIZED HINGED COVER BOX NO KO'S - Image 2
,

TYPE 1 GALVANIZED HINGED COVER BOX NO KO’S

Construction:
  • CODE GAUGE G-90 GALVANIZED STEEL
  • HINGED COVERS ARE FASTENED WITH PLATED STEEL SCREWS
  • BOLT-ON HINGES ON SMALLER ENCLOSURES AND BUTT HINGES ON LARGER ENCLOSURES
  • NO KO'S
Finish:
  • TYPE 1 HINGE COVER BOXES ARE PROVIDED IN G-60 or G-90 GALVANIZED STEEL

Indoor use primarily to provide protection against contact with the enclosed equipment and against a limited amount of falling dirt.

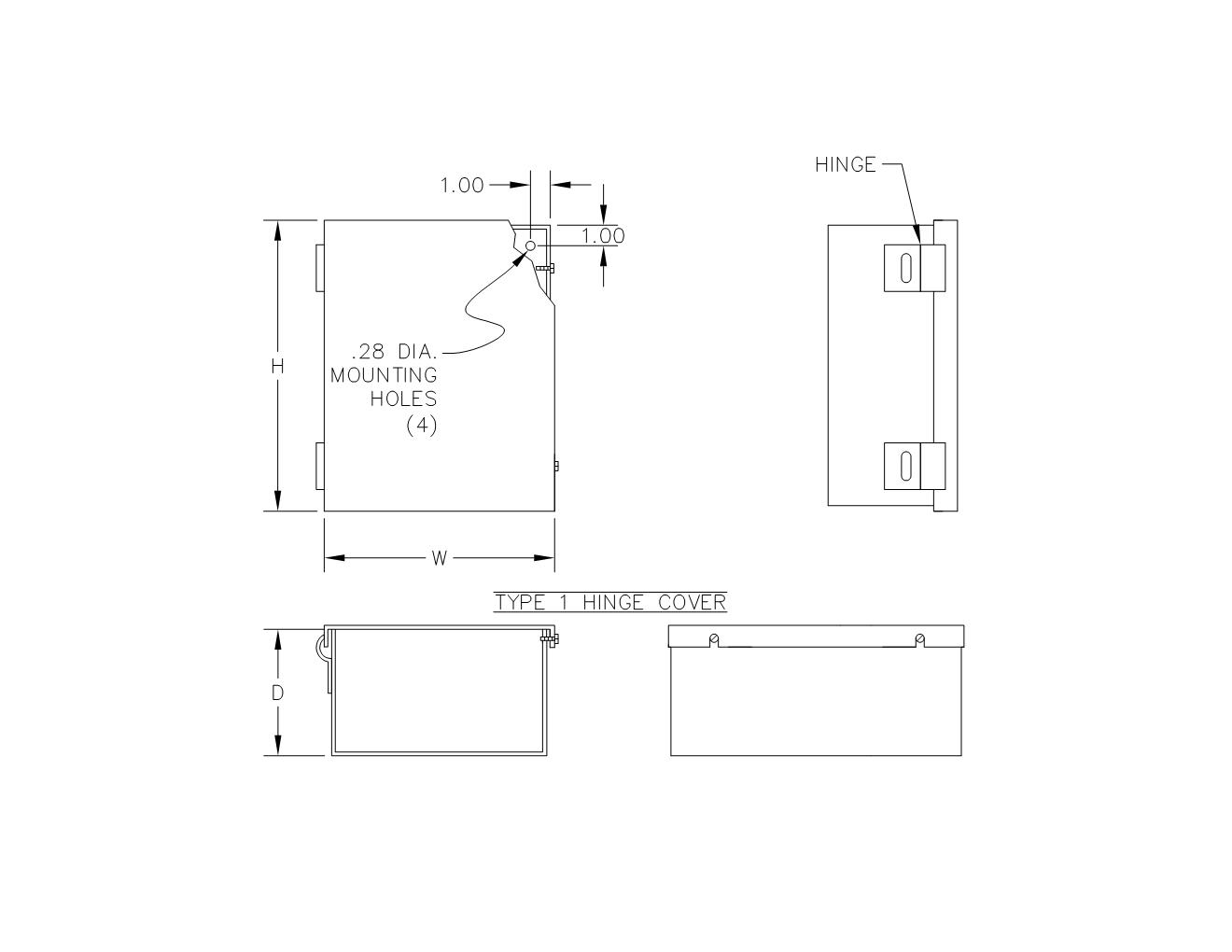

DOWNLOAD SPEC SHEET

SKU: HC Categories: ,

For large quantities or custom sizes call factory
Enclosure Size HxWxDCatalog NumberWeightUPC_12Digit
4x4x4444HC4 lbs806101001775
6x4x4644HC5 lbs806101001782
6x6x4664HC5 lbs806101001799
8x6x4864HC6 lbs806101001805
8x8x4884HC7 lbs806101001812
10x6x41064HC7 lbs806101001829
12x6x41264HC8 lbs806101001850
10x8x41084HC9 lbs806101001836
12x8x41284HC10 lbs806101001867
10x10x410104HC10 lbs806101001843
12x10x412104HC11 lbs806101001874
12x12x412124HC13 lbs806101001881
15x12x415124HC15 lbs806101001898
15x15x415154HC16 lbs806101001904
18x12x418124HC18 lbs806101001911
18x15x418154HC21 lbs806101001928
18x18x418184HC24 lbs806101001935
24x12x424124HC22 lbs806101001942
24x18x424184HC30 lbs806101001959
24x24x424244HC39 lbs806101001966
30x24x430244HC47 lbs806101001973
36x24x436244HC54 lbs806101001980
6x6x6666HC6 lbs806101001997
8x6x6866HC7 lbs806101002000
8x8x6886HC9 lbs806101002017
10x8x61086HC10 lbs806101002024
12x8x61286HC12 lbs806101002048
10x10x610106HC12 lbs806101002031
12x10x612106HC11 lbs806101002055
12x12x612126HC15 lbs806101002062
15x12x615126HC18 lbs806101002079
15x15x615156HC21 lbs806101002086
18x12x618126HC20 lbs806101002093
18x15x618156HC24 lbs806101002109
18x18x618186HC28 lbs806101002116
24x12x624126HC26 lbs806101002123
24x18x624186HC34 lbs806101002130
24x24x624246HC43 lbs806101002147
30x24x630246HC51 lbs806101002154
30x30x630306HC62 lbs806101002161
36x24x636246HC60 lbs806101002178
36x30x636306HC72 lbs806101002185
36x36x636366HC116 lbs806101002192
48x24x648246HC77 lbs806101002208
48x36x648366HC148 lbs806101002215
48x48x648486HC190 lbs806101002222
8x8x8888HC10 lbs806101002239
10x10x810108HC14 lbs806101002246
12x12x812128HC17 lbs806101002253
15x12x815128HC20 lbs806101002260
15x15x815158HC24 lbs806101002277
18x12x818128HC23 lbs806101002284
18x15x818158HC27 lbs806101002291
18x18x818188HC31 lbs806101002307
24x12x824128HC29 lbs806101002314
24x18x824188HC38 lbs806101002321
24x24x824248HC47 lbs806101002338
30x24x830248HC56 lbs806101002345
30x30x830308HC67 lbs806101002352
36x24x836248HC65 lbs806101002369
36x30x836308HC78 lbs806101002376
36x36x836368HC125 lbs806101002383
48x24x848248HC87 lbs806101002390
48x36x848368HC158 lbs806101002406
48x48x848488HC202 lbs806101002413
12x12x10121210HC20 lbs806101002420
18x12x10181210HC26 lbs806101002437
18x18x10181810HC34 lbs806101002444
24x18x10241810HC42 lbs806101002451
24x24x10242410HC50 lbs806101002468
30x24x10302410HC61 lbs806101002482
30x30x10303010HC73 lbs806101002475
36x24x10362410HC71 lbs806101002499
36x30x10363010HC84 lbs806101002505
36x36x10363610HC134 lbs806101002512
48x36x10483610HC169 lbs806101002529
48x48x10484810HC214 lbs806101002536
12x12x12121212HC22 lbs806101002543
18x12x12181212HC29 lbs806101002550
18x18x12181812HC37 lbs806101002567
24x12x12241212HC36.12 lbs806101002574
24x18x12241812HC46 lbs806101002581
24x24x12242412HC57 lbs806101002598
30x30x12303012HC79 lbs806101002604
36x24x12362412HC72 lbs806101002611
36x36x12363612HC143 lbs806101002628
48x36x12483612HC180 lbs806101002635
48x48x12484812HC226 lbs806101002642
