Wireway Fittings, Type 1

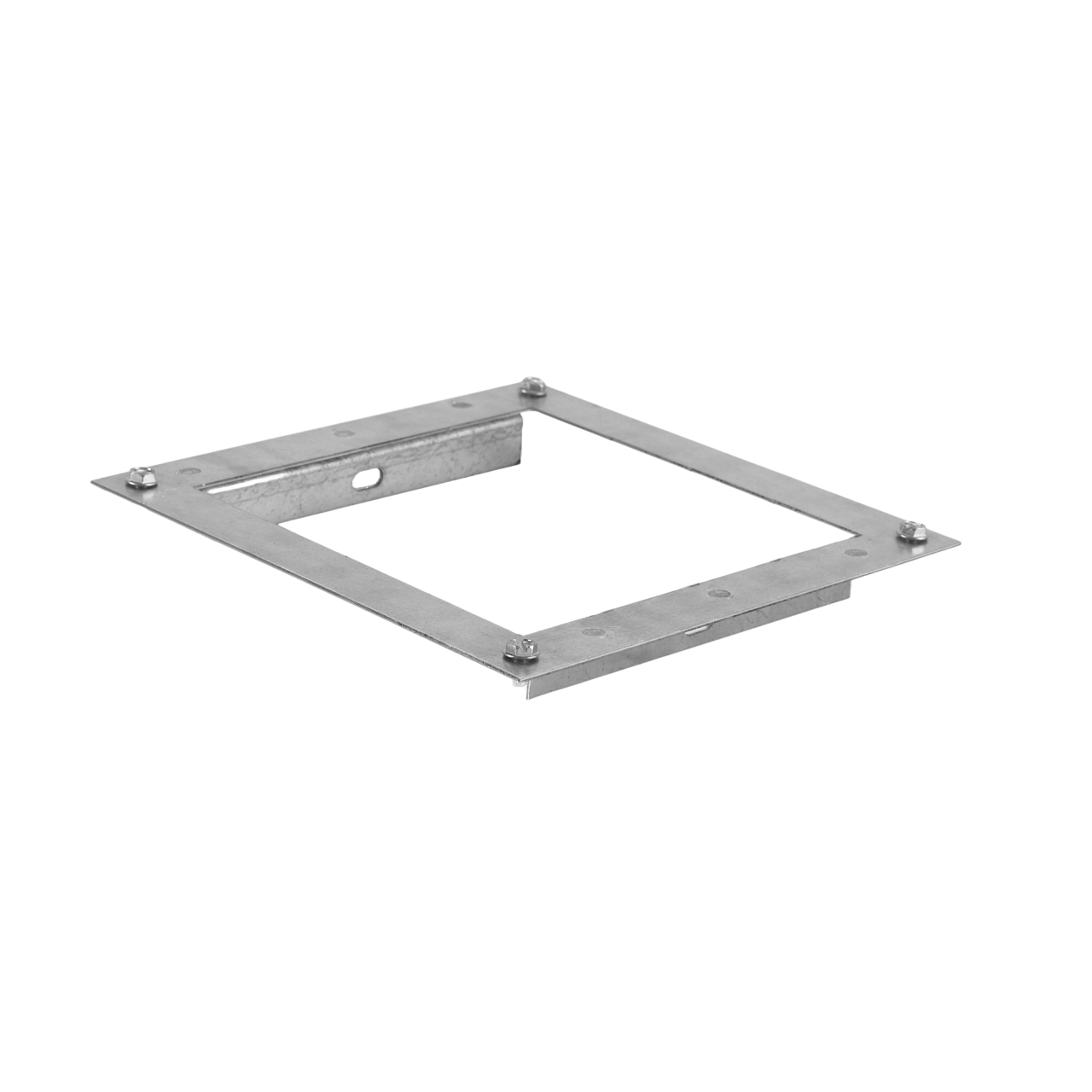

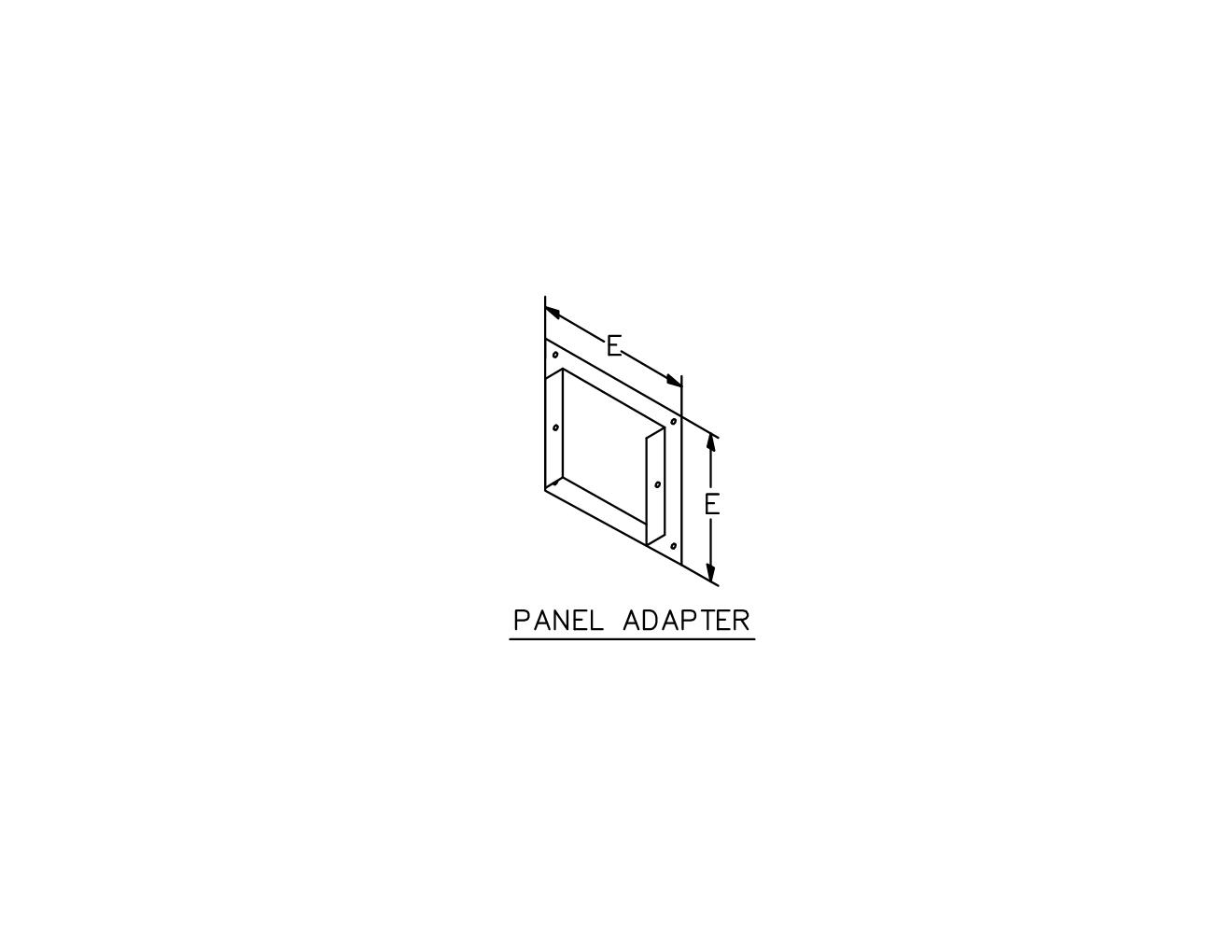

TYPE 1 GALVANIZED PANEL ADAPTER FOR WIREWAY
Construction:- CODE GAUGE G-60 or G-90 GALVANIZED STEEL
- THE PURPOSE OF THE PANEL ADAPTER IS TO CONNECT THE WIREWAY TO AN EXISTING ENCLOSURE OR PIECE OF GEAR.
- TYPE 1 WIREWAY FITTINGS ARE PROVIDED IN G-60 or G-90 GALVANIZED STEEL
Indoor use primarily to provide protection against contact with the enclosed equipment and against a limited amount of falling dirt.
For large quantities or custom sizes call factory
| Wireway Size LxHxD | Catalog Number | Weight | UPC_12Digit |
|---|---|---|---|
| 4x4 | 4-PA | 1 lbs | 806101008422 |
| 6x6 | 6-PA | 2 lbs | 806101008613 |
| 8x8 | 8-PA | 2 lbs | 806101008804 |
| 10x10 | 10-PA | 2 lbs | 806101008996 |
| 12x12 | 12-PA | 3 lbs | 806101009184 |
