Type 1, Wireway Fittings

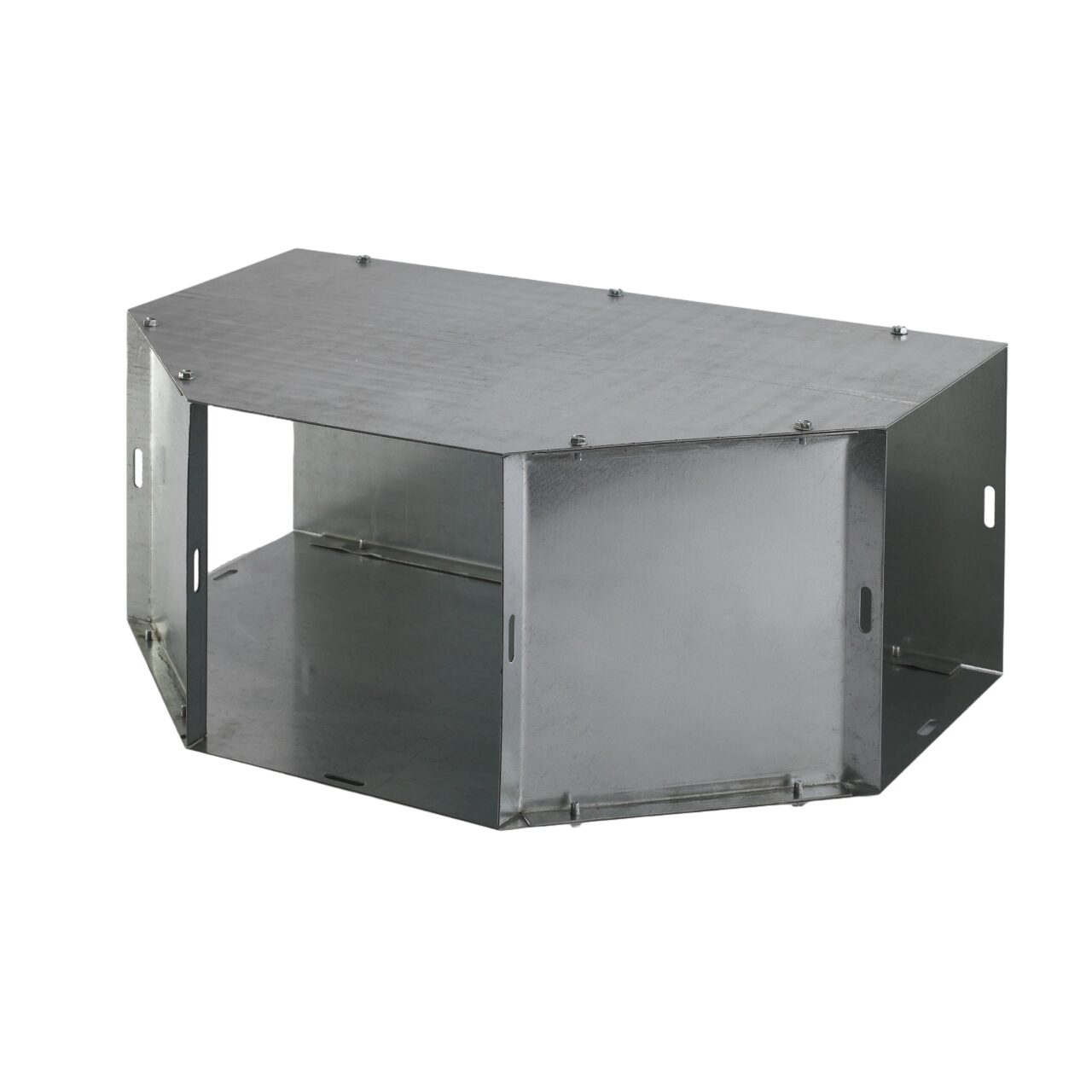

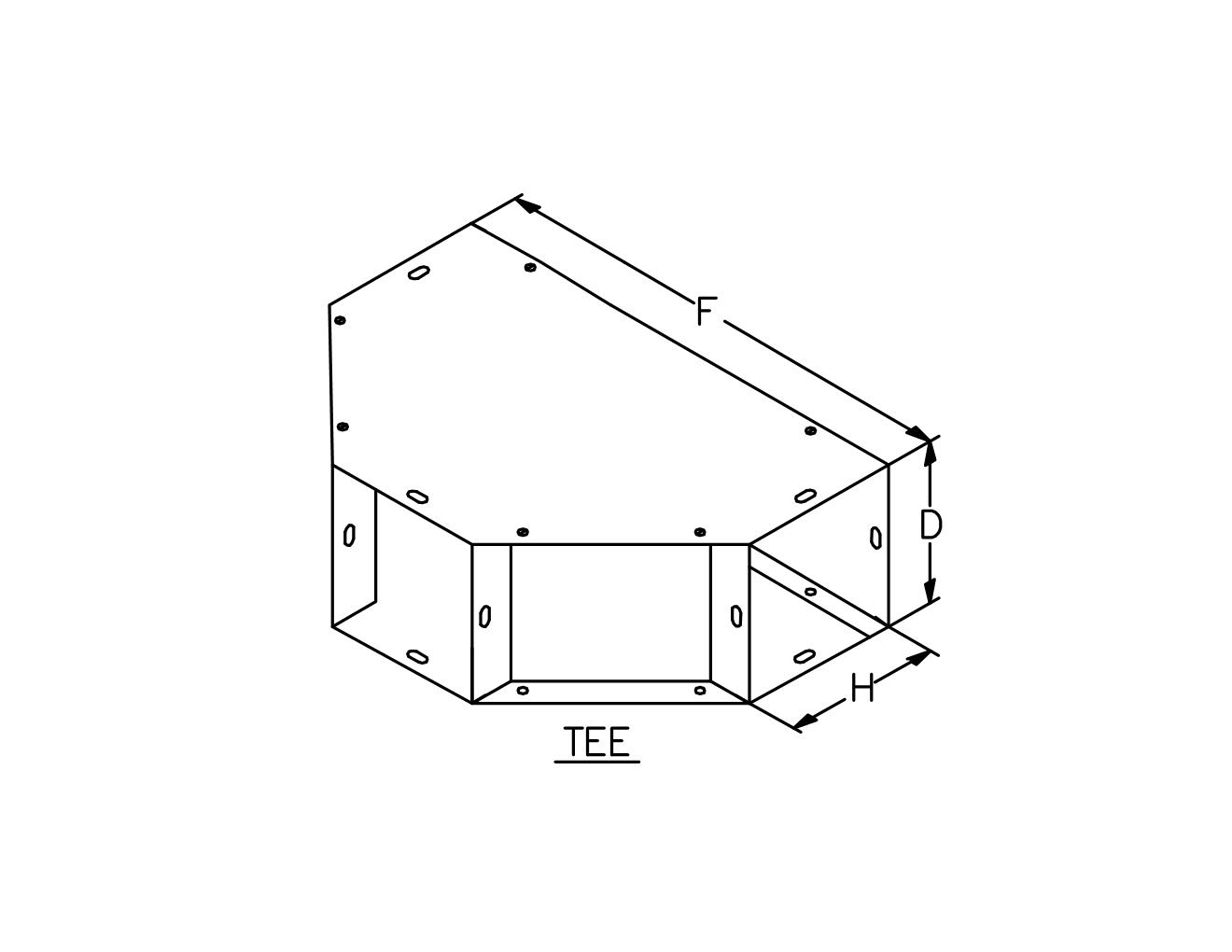

TYPE 1 GALVANIZED TEE FOR WIREWAY
Construction:- CODE GAUGE G-60 or G-90 GALVANIZED STEEL
- THIS FITTING CAN BE OPENED ON ANY SIDE TO PERMIT THE LAYING IN OF ENTIRE RUNS OF WIRING
- REMOVABLE COVER FASTENED WITH PLATED STEEL SCREWS
- TYPE 1 WIREWAY FITTINGS ARE PROVIDED IN G-60 or G-90 GALVANIZED STEEL
Indoor use primarily to provide protection against contact with the enclosed equipment and against a limited amount of falling dirt.
Select your size
For large quantities or custom sizes call factory
| Wireway Size LxHxD | Catalog Number | Weight | UPC_12Digit |
|---|---|---|---|
| 4x4 | 4-T | 5 lbs | 806101008477 |
| 6x6 | 6-T | 8 lbs | 806101008668 |
| 8x8 | 8-T | 14 lbs | 806101008859 |
| 10x10 | 10-T | 20 lbs | 806101009047 |
| 12x12 | 12-T | 26 lbs | 806101009238 |
