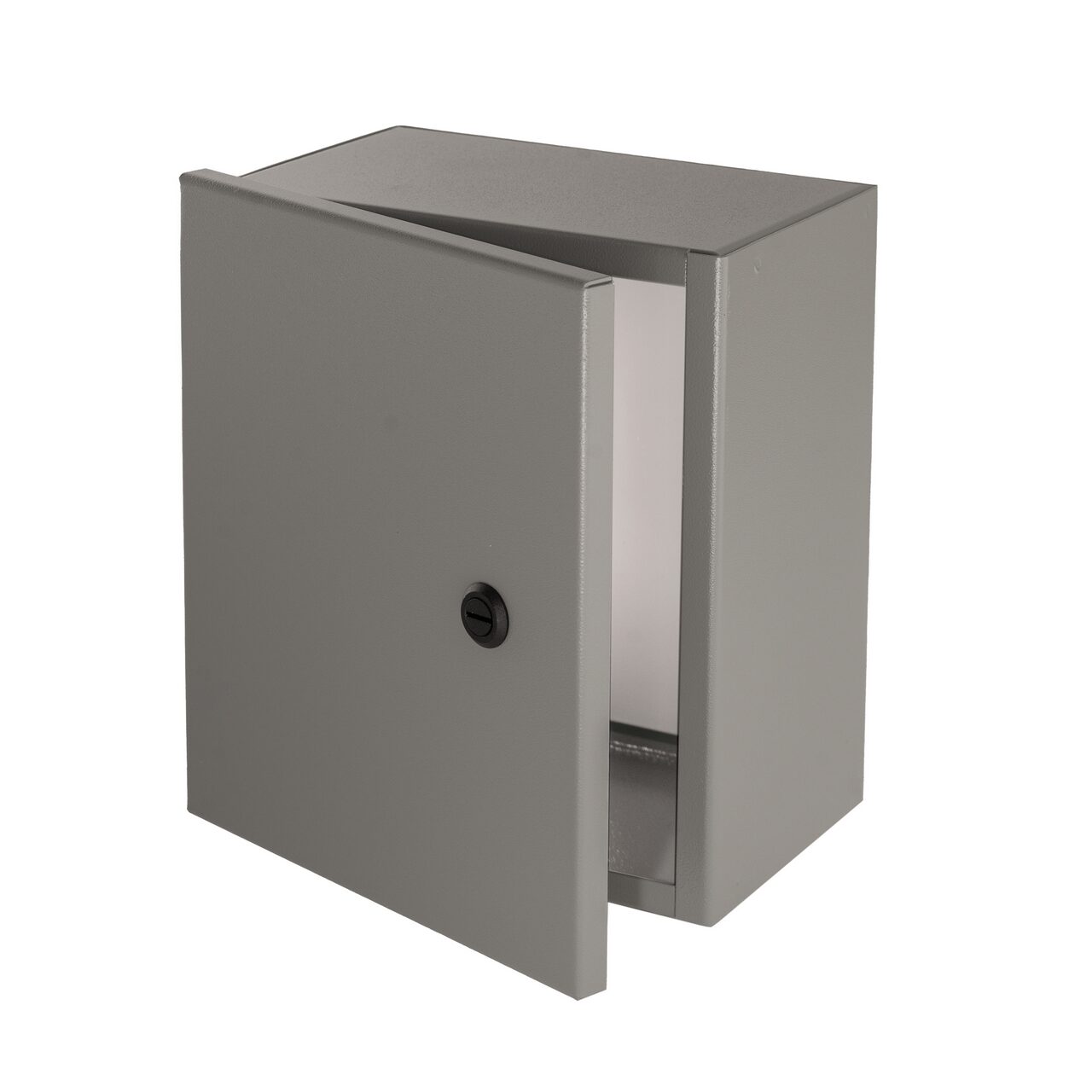

TYPE 1 PAINTED HINGED ENCLOSURE W/ KEYLOCKING LATCH & PANEL INSTALLED
TYPE 1 PAINTED HINGED ENCLOSURE W/ KEYLOCKING LATCH & PANEL INSTALLED - Image 2
TYPE 1 PAINTED HINGED ENCLOSURE W/ KEYLOCKING LATCH & PANEL INSTALLED - Image 3
,

TYPE 1 PAINTED HINGED ENCLOSURE W/ KEYLOCKING LATCH & PANEL INSTALLED

Construction:
  • CODE GAUGE PAINT GRIP GALVANIZED STEEL
  • BUTT HINGES
  • REMOVEABLE STEEL PAINTED WHITE BACK PANEL INSTALLED/INCLUDED
  • NEARLY FLUSH, KEYLOCKING LATCH
Finish:
  • ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL

Indoor use primarily to provide protection against contact with the enclosed equipment and against a limited amount of falling dirt.

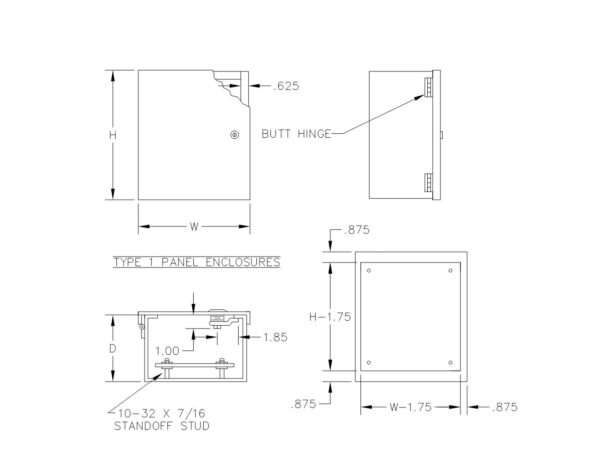

DOWNLOAD SPEC SHEET 15X11 AND SMALLER

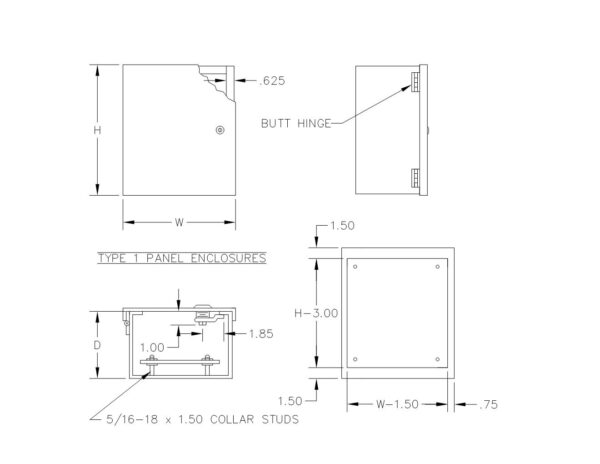

DOWNLOAD SPEC SHEET 16X12 AND LARGER

SKU: HLL Categories: ,

For large quantities or custom sizes call factory
Enclosure Size HxWxDCatalog NumberWeightUPC_12Digit
6x6x4664HLL7 lbs806101034896
8x6x4864HLL8 lbs806101034902
10x8x41084HLL13 lbs806101034926
10x10x410104HLL12 lbs806101034933
12x10x412104HLL14 lbs806101034940
12x12x412124HLL15 lbs806101034957
14x12x414124HLL17 lbs806101034964
8x6x6866HLL9 lbs806101034971
10x8x61086HLL15 lbs806101026594
10x10x610106HLL15 lbs806101026587
12x10x612106HLL16 lbs806101026600
12x12x612126HLL17 lbs806101026617
14x12x614126HLL20 lbs806101026631
16x12x616126HLL24 lbs806101026655
16x16x616166HLL31 lbs806101026679
18x18x618186HLL37 lbs
20x16x620166HLL37 lbs806101026686
20x20x620206HLL49 lbs806101026709
24x16x624166HLL44 lbs806101026723
24x20x624206HLL42 lbs806101026747
24x24x624246HLL62 lbs806101026778
30x20x630206HLL65 lbs806101026792
30x24x630246HLL70 lbs806101026839
36x24x636246HLL87 lbs806101026860
36x30x636306HLL106 lbs806101026907
12x12x812128HLL21 lbs806101026624
14x12x814128HLL22 lbs806101026648
16x12x816128HLL26 lbs806101026662
20x16x820168HLL41 lbs806101026693
20x20x820208HLL49 lbs806101026716
24x20x824208HLL54 lbs806101026754
24x24x824248HLL60 lbs806101026785
30x20x830208HLL70 lbs806101026808
30x24x830248HLL75 lbs806101026846
30x30x830308HLL91 lbs806101026853
36x24x836248HLL93 lbs806101026877
36x30x836308HLL112 lbs806101026914
42x24x842248HLL105 lbs806101026921
36x36x836368HLL125 lbs
24x20x10242010HLL50 lbs806101026730
30x24x10302410HLL89 lbs806101026815
36x30x10363010HLL119 lbs806101026884
24x24x12242412HLL76 lbs806101026761
30x24x12302412HLL85 lbs806101026822
36x30x12363012HLL122 lbs806101026891
36x36x12363612HLL177 lbs
