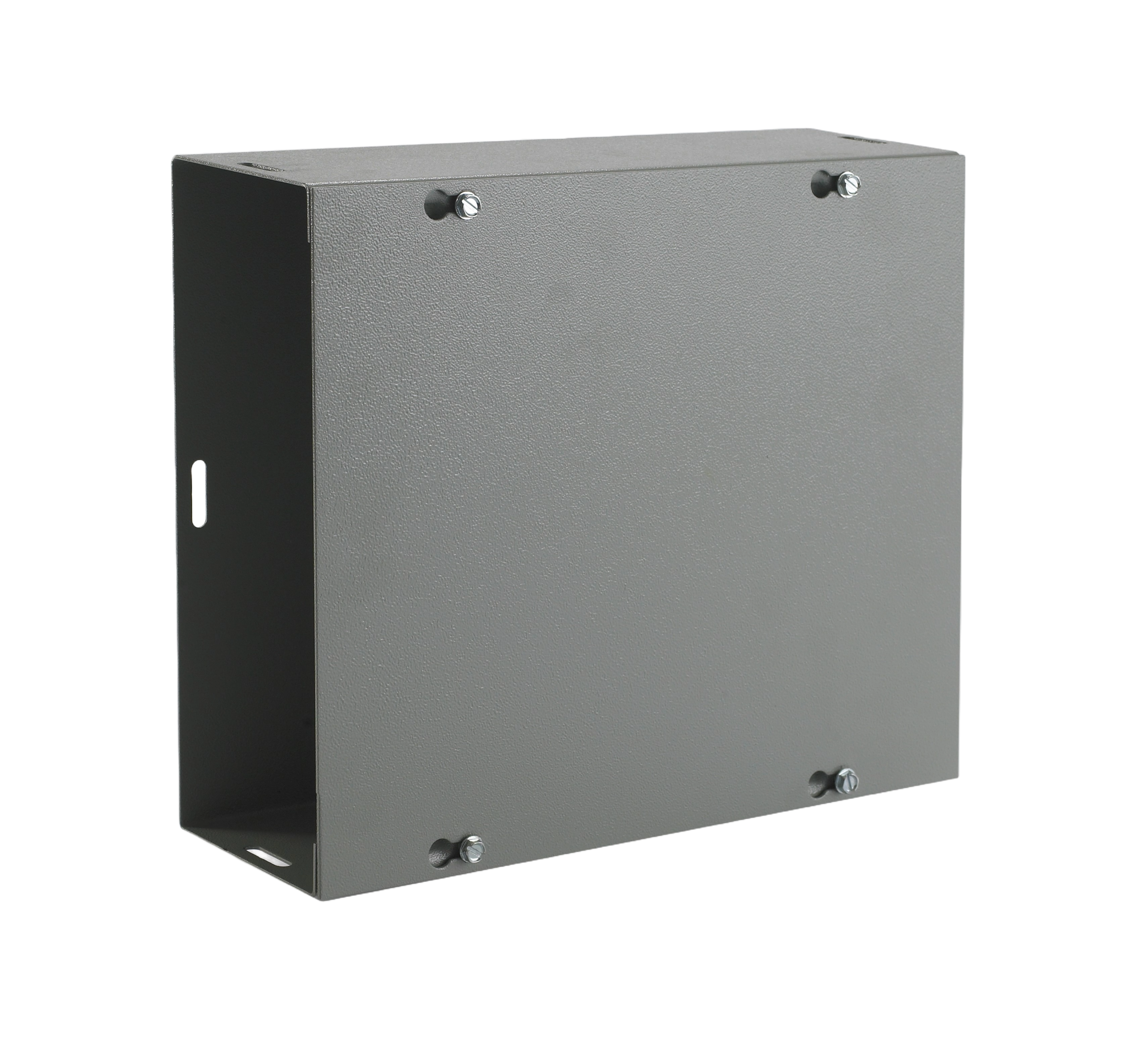

TYPE 1 PAINTED X-RAY DUCT
Construction:- CODE GAUGE PAINT GRIP GALVANIZED STEEL
- FLAT REMOVABLE COVER FASTENED WITH PLATED STEEL SCREWS
- ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL
Indoor use primarily to provide protection against contact with the enclosed equipment and against a limited amount of falling dirt.
For large quantities or custom sizes call factory

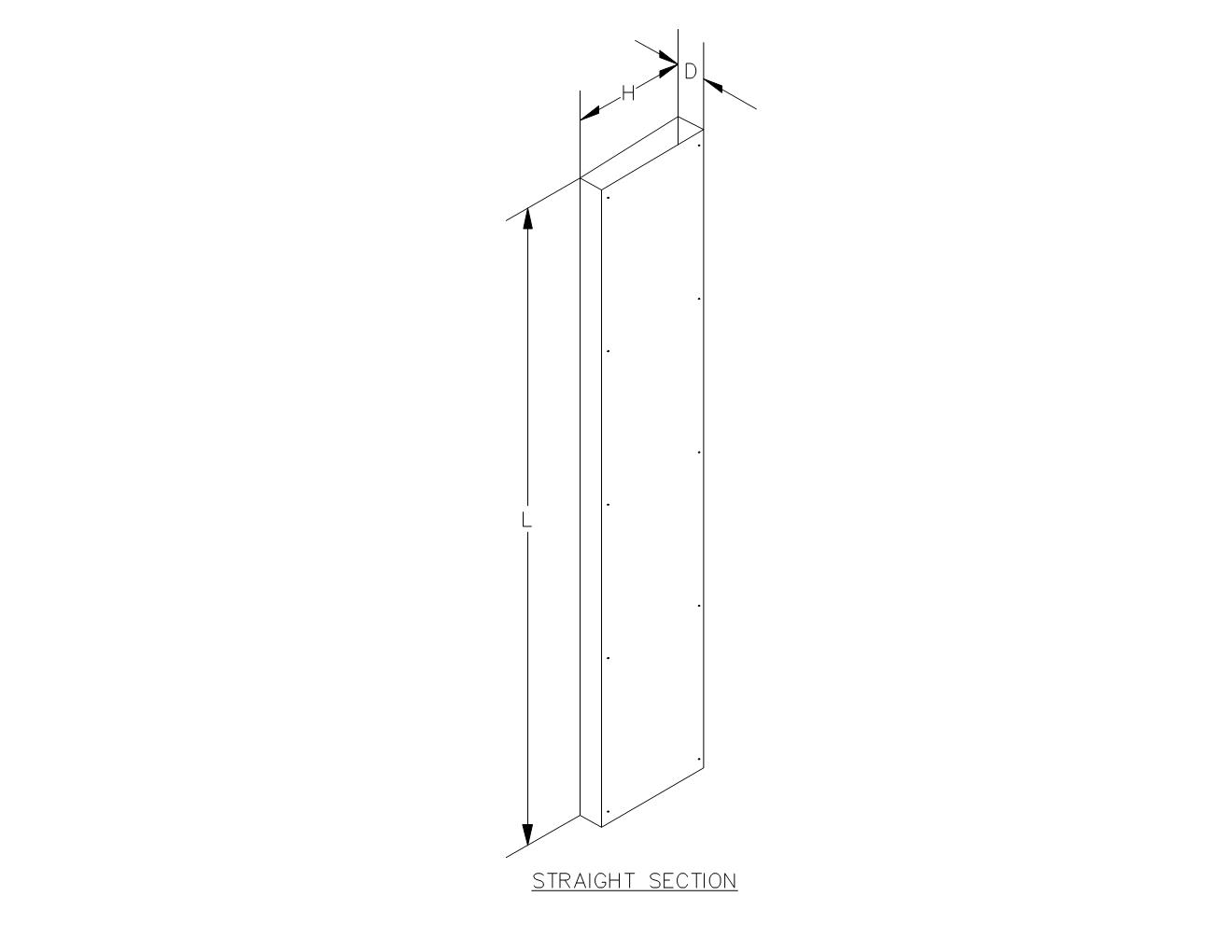

| Wireway Size LxHxD | Catalog Number | Weight | UPC_12Digit |
|---|---|---|---|
| 60x4x3.50 | 5-43X | 23 lbs | |
| 60x6x3.50 | 5-63X | 30 lbs | |
| 119x6x3.50 | 10-63X | 49 lbs | |
| 12x10x3.50 | 1-103X | 8 lbs | 806101013037 |
| 24x10x3.50 | 2-103X | 15 lbs | 806101013044 |
| 36x10x3.50 | 3-103X | 19 lbs | 806101013051 |
| 48x10x3.50 | 4-103X | 35 lbs | 806101013068 |
| 60x10x3.50 | 5-103X | 43 lbs | 806101013075 |
| 72x10x3.50 | 6-103X | 50 lbs | 806101013082 |
| 84x10x3.50 | 7-103X | 54 lbs | 806101013099 |
| 96x10x3.50 | 8-103X | 62 lbs | 806101013105 |
| 119x10x3.50 | 10-103X | 73 lbs | 806101013112 |
| 119x12x3.50 | 10-123X | 84 lbs | |
| 12x18x3.50 | 1-183X | 12 lbs | 806101013211 |
| 24x18x3.50 | 2-183X | 24 lbs | 806101013228 |
| 36x18x3.50 | 3-183X | 43 lbs | 806101013235 |
| 48x18x3.50 | 4-183X | 56 lbs | 806101013242 |
| 60x18x3.50 | 5-183X | 62 lbs | 806101013259 |
| 72x18x3.50 | 6-183X | 50 lbs | 806101013266 |
| 84x18x3.50 | 7-183X | 86 lbs | 806101013273 |
| 96x18x3.50 | 8-183X | 104 lbs | 806101013280 |
| 119x18x3.50 | 10-183X | 117 lbs | 806101013297 |
