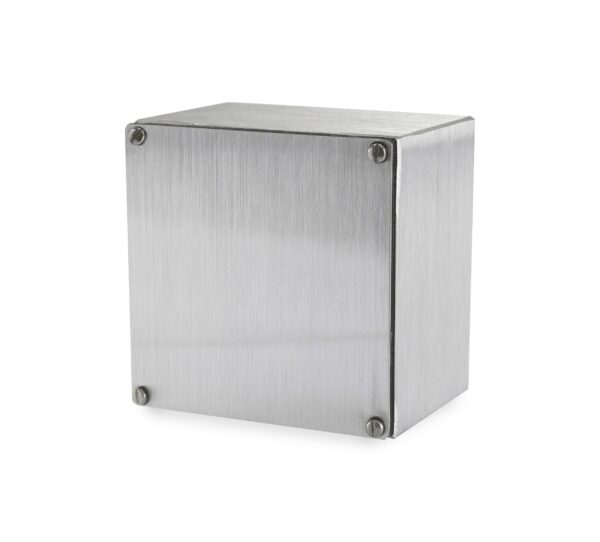

TYPE 3 & 12 304 STAINLESS STEEL GASKETED SCREW COVER BOX
Construction:- SEAMS CONTINUOUSLY WELDED AND GROUND SMOOTH
- REMOVABLE GASKETED COVER FASTEND WITH STAINLESS STEEL SCREWS
- CODE GAUGE TYPE 304 STAINLESS STEEL
- NUMBER 3 BRUSHED FINISH
Satisfies both UL Type 3 and 12 intended uses. Type 3-Outdoor use to provide a degree of protection against wind blown dust and wind blown rain; undamaged by the formation of ice on the enclosure. Type 12-Indoor use to provide a degree of protection against dust, dirt, fiber, flyings, dripping water and external condensation of non corrosive liquids.

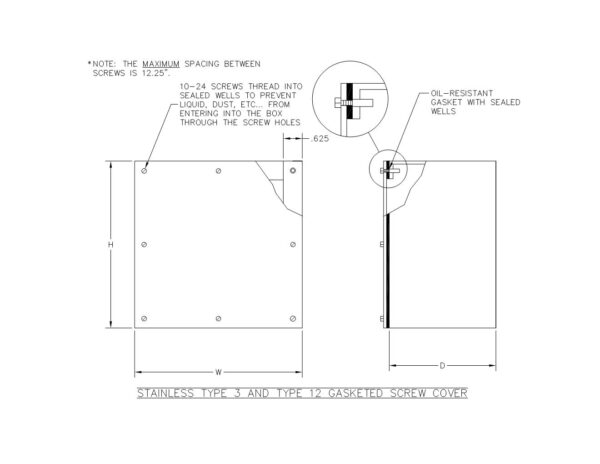

DOWNLOAD SPEC SHEET 4X4 – 35X35 AND SMALLER

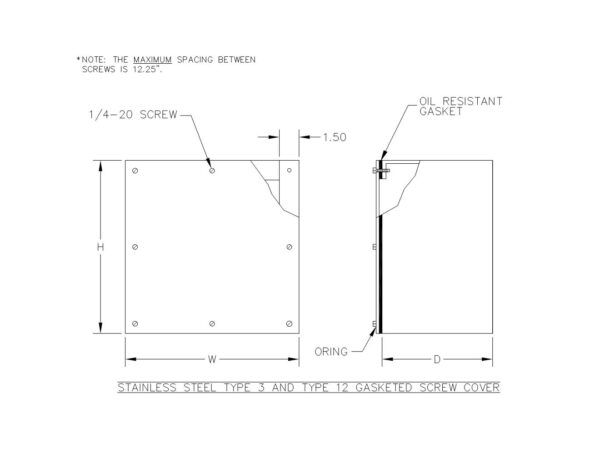

DOWNLOAD SPEC SHEET 36X36 & LARGER
For large quantities or custom sizes call factory
| Enclosure Size HxWxD | Catalog Number | Weight | UPC_12Digit |
|---|---|---|---|
| 4x4x4 | S444SG | 3 lbs | 806101013761 |
| 6x6x4 | S664SG | 5 lbs | 806101013778 |
| 8x6x4 | S864SG | 6 lbs | 806101013785 |
| 8x8x4 | S884SG | 7 lbs | 806101013792 |
| 10x8x4 | S1084SG | 8 lbs | 806101013808 |
| 10x10x4 | S10104SG | 10 lbs | 806101013815 |
| 12x10x4 | S12104SG | 11 lbs | 806101013822 |
| 12x12x4 | S12124SG | 13 lbs | 806101013839 |
| 6x6x6 | S666SG | 6 lbs | 806101013846 |
| 8x8x6 | S886SG | 8 lbs | 806101013853 |
| 10x10x6 | S10106SG | 12 lbs | 806101013860 |
| 12x12x6 | S12126SG | 15 lbs | 806101013877 |
| 15x12x6 | S15126SG | 18 lbs | 806101013884 |
| 15x15x6 | S15156SG | 21 lbs | 806101013891 |
| 18x18x6 | S18186SG | 28 lbs | 806101013907 |
| 24x18x6 | S24186SG | 35 lbs | 806101013914 |
| 24x24x6 | S24246SG | 44 lbs | 806101013921 |
| 8x8x8 | S888SG | 10 lbs | 806101013938 |
| 12x12x8 | S12128SG | 17 lbs | 806101013945 |
| 18x18x8 | S18188SG | 31 lbs | 806101013952 |
| 24x24x8 | S24248SG | 48 lbs | 806101013969 |
| 30x24x8 | S30248SG | 58 lbs | 806101013976 |
| 30x30x8 | S30308SG | 69 lbs | 806101013983 |
| 36x24x8 | S36248SG | 67 lbs | 806101013990 |
| 36x30x8 | S36308SG | 80 lbs | 806101014003 |
| 18x18x10 | S181810SG | 35 lbs | 806101014010 |
| 24x24x10 | S242410SG | 53 lbs | 806101014027 |
| 30x24x10 | S302410SG | 63 lbs | 806101014034 |
| 30x30x10 | S303010SG | 75 lbs | 806101014041 |
| 36x24x10 | S362410SG | 73 lbs | 806101014058 |
| 18x18x12 | S181812SG | 38 lbs | 806101014065 |
| 24x24x12 | S242412SG | 58 lbs | 806101014072 |
| 30x30x12 | S303012SG | 81 lbs | 806101014089 |
| 36x36x12 | S363612SG | 147 lbs | 806101014096 |
