Products, Type 3

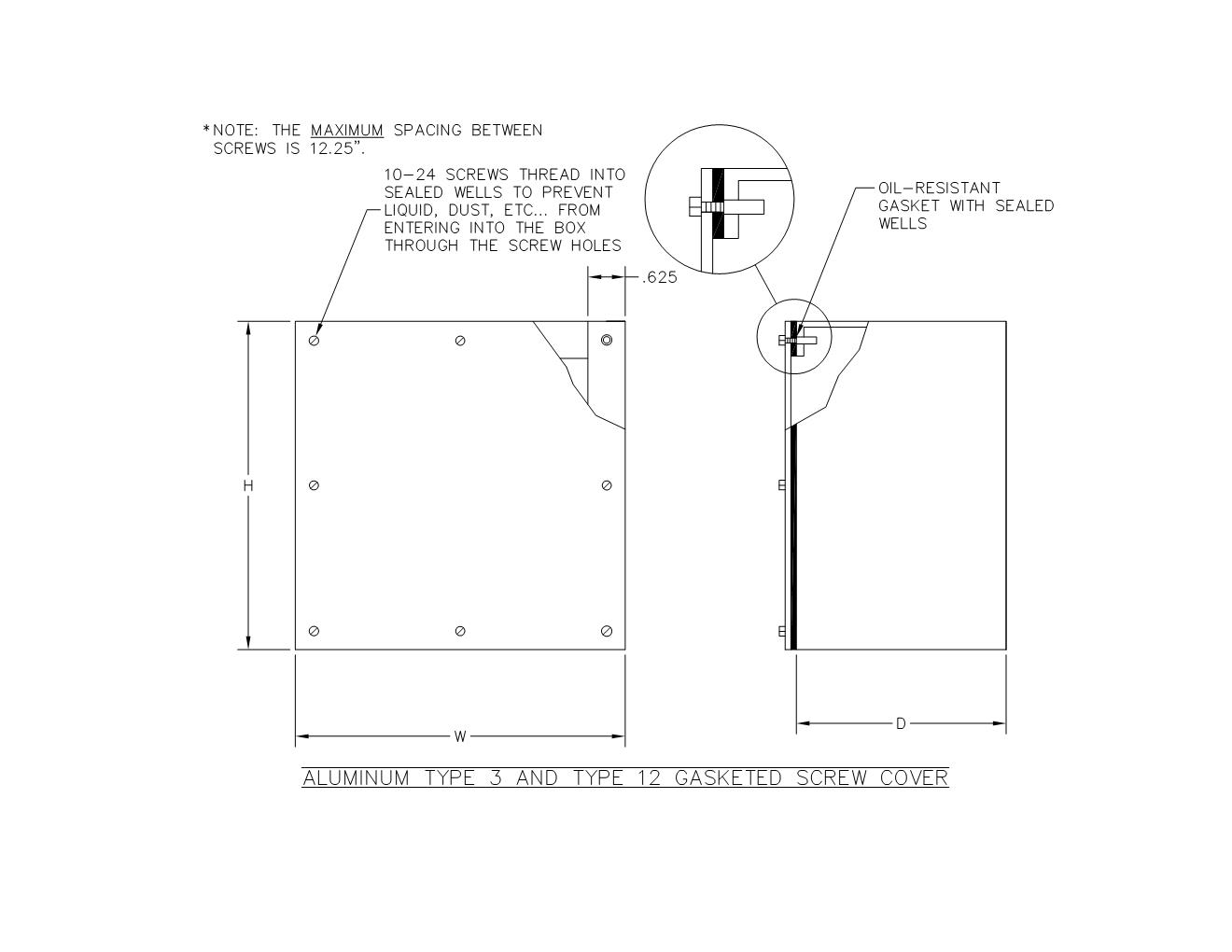

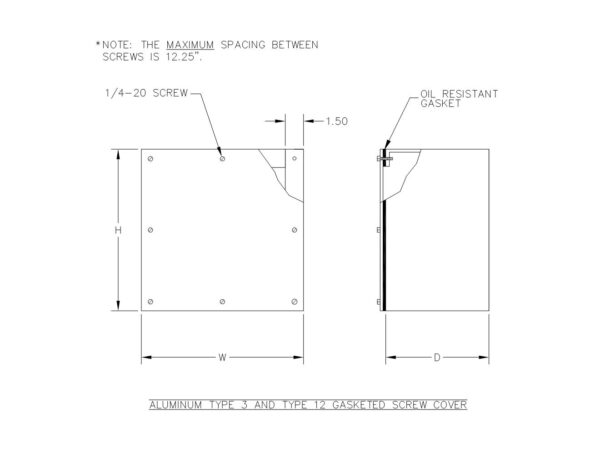

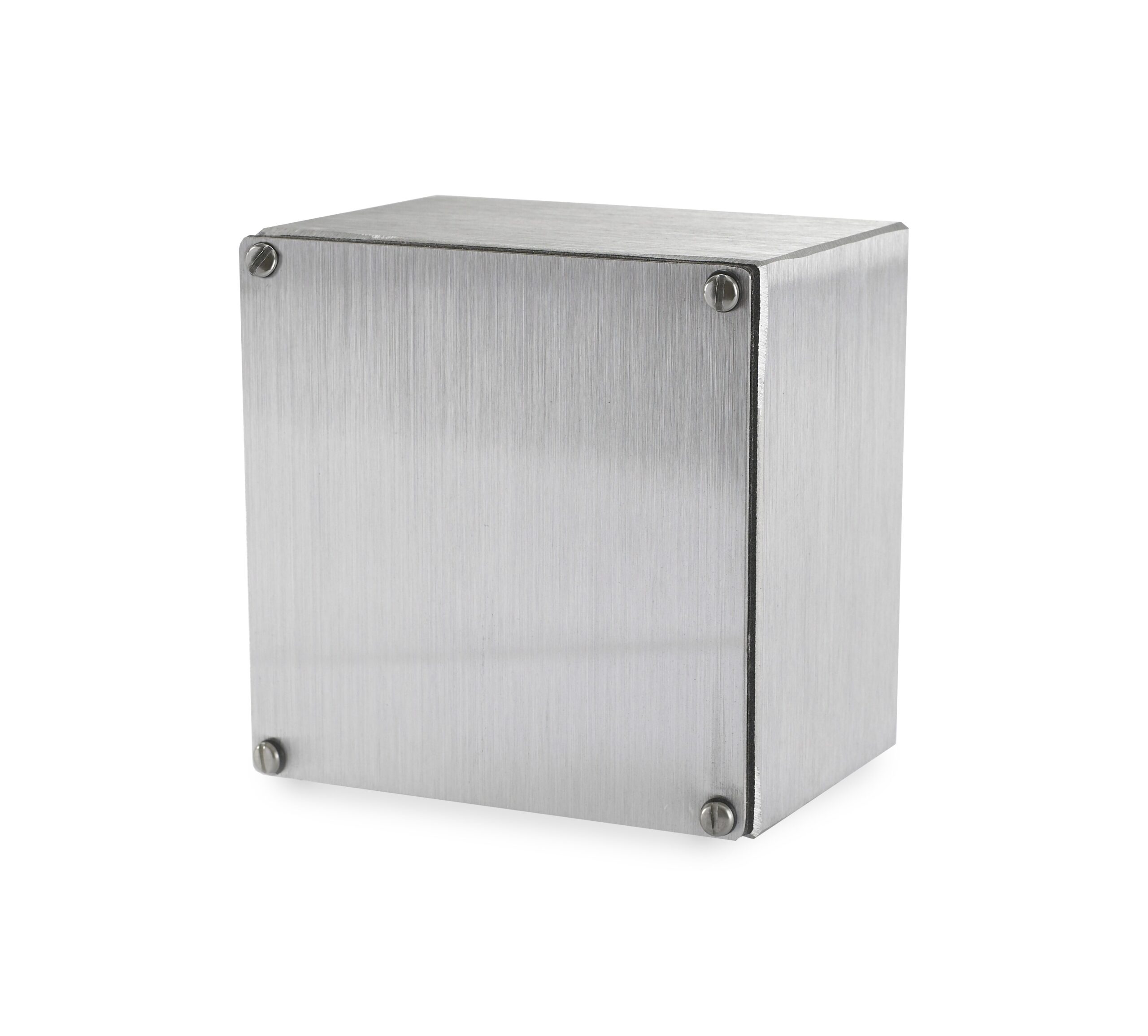

TYPE 3 & 12 ALUMINUM GASKETED SCREW COVER BOX
Construction:- REMOVABLE COVER FASTENED WITH STAINLESS STEEL SCREWS
- SEAMS CONTINUOUSLY WELDED AND GROUND SMOOTH
- TYPE 5052 H-32 .080 ALUMINUM
- NUMBER 3 BRUSHED FINISH
Satisfies both UL Type 3 and 12 intended uses. Type 3-Outdoor use to provide a degree of protection against wind blown dust and wind blown rain; undamaged by the formation of ice on the enclosure. Type 12-Indoor use to provide a degree of protection against dust, dirt, fiber, flyings, dripping water and external condensation of non corrosive liquids.
For large quantities or custom sizes call factory
| Enclosure Size HxWxD | Catalog Number | Weight | UPC_12Digit |
|---|---|---|---|
| 6x6x4 | A664SG | 2 lbs | 806101014102 |
| 8x6x4 | A864SG | 2 lbs | 806101014119 |
| 8x8x4 | A884SG | 2 lbs | 806101014126 |
| 10x8x4 | A1084SG | 3 lbs | 806101014133 |
| 10x10x4 | A10104SG | 3 lbs | 806101014140 |
| 12x12x4 | A12124SG | 4 lbs | 806101014157 |
| 8x8x6 | A886SG | 3 lbs | 806101014164 |
| 10x8x6 | A1086SG | 3 lbs | 806101014171 |
| 12x10x6 | A12106SG | 4 lbs | 806101014188 |
| 12x12x6 | A12126SG | 5 lbs | 806101014195 |
| 18x12x6 | A18126SG | 7 lbs | 806101014201 |
| 24x18x6 | A24186SG | 12 lbs | 806101014218 |
| 24x24x6 | A24246SG | 14 lbs | 806101014225 |
| 12x12x8 | A12128SG | 6 lbs | 806101014232 |
| 18x18x8 | A18188SG | 10 lbs | 806101014249 |
| 24x24x8 | A24248SG | 16 lbs | 806101014256 |
