Type 3, Products

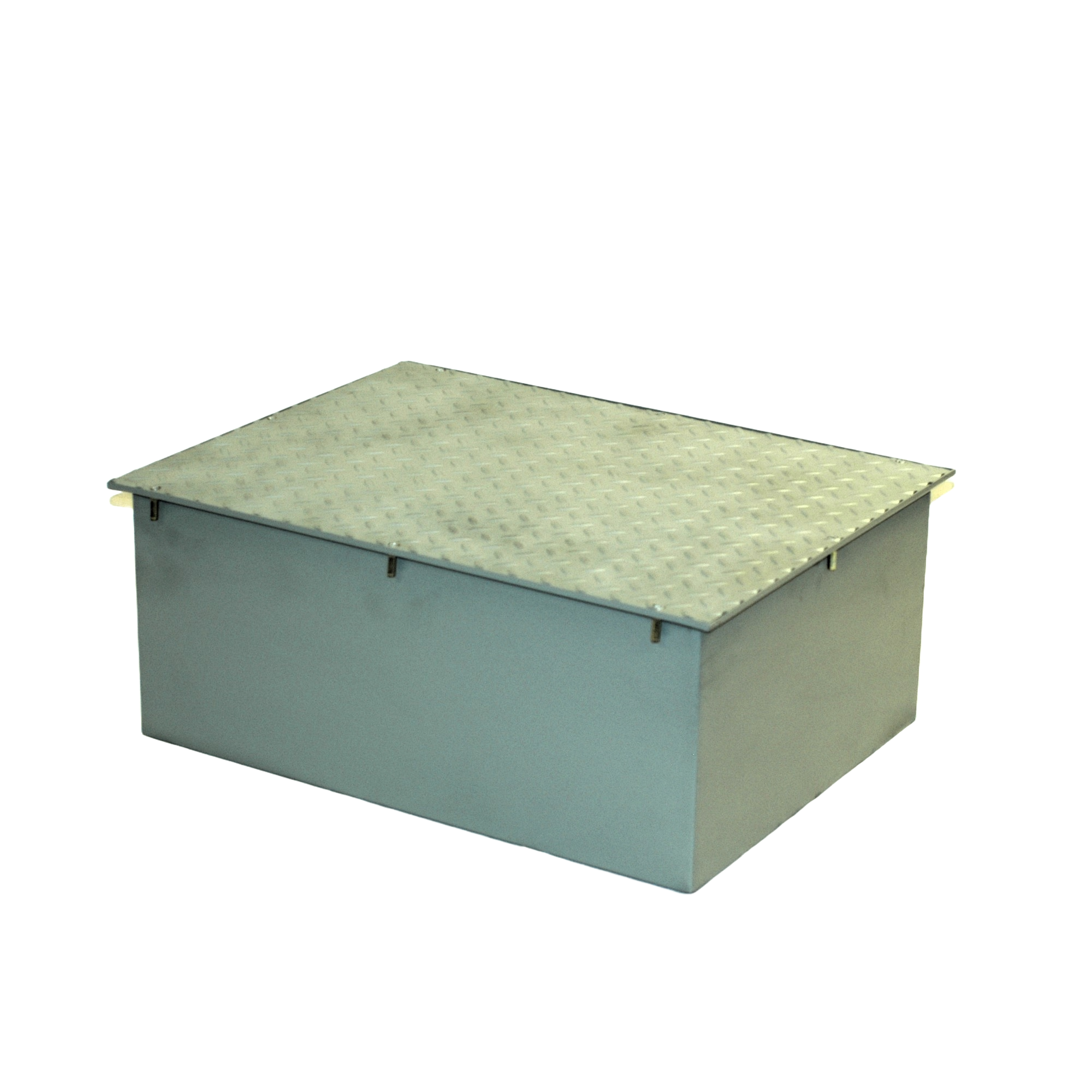

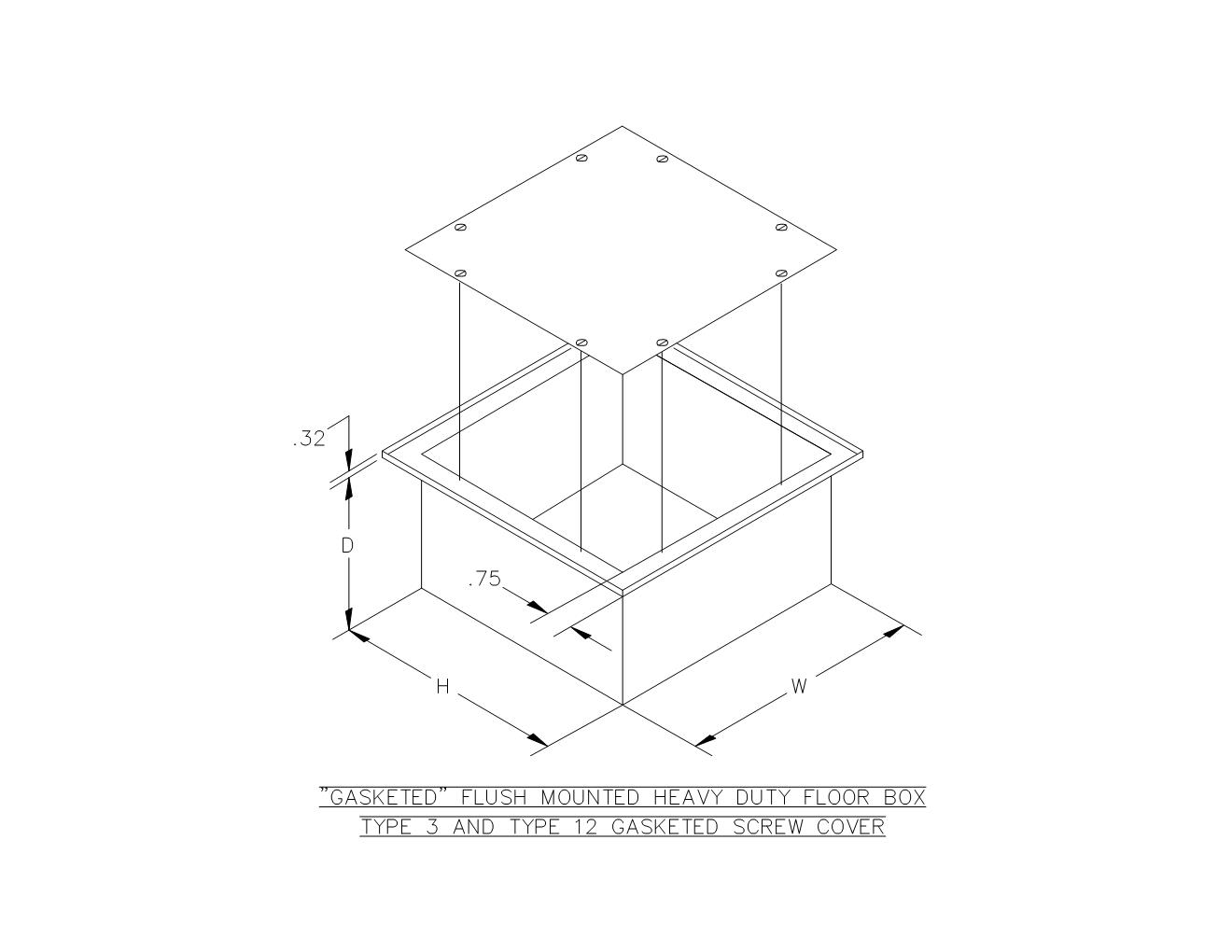

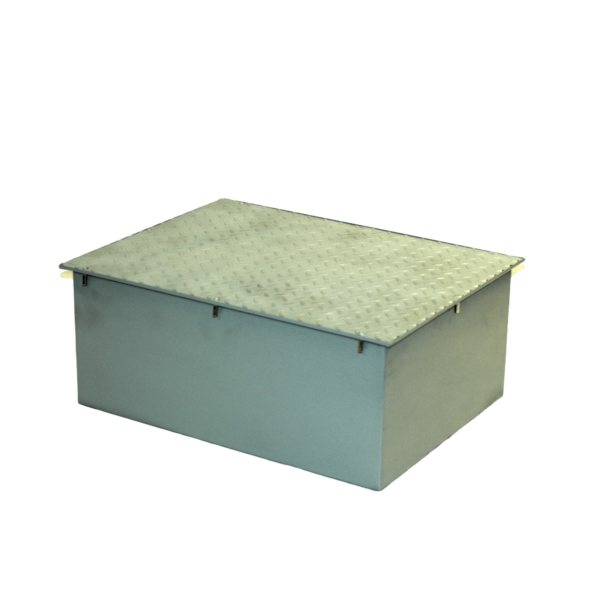

TYPE 3 PAINTED GASKETED FLUSH MOUNTED HEAVY DUTY FLOOR BOX
Construction:- 3/16 CHECKERED PLATE COVER WITH OIL RESISTANT GASKET
- CODE GAUGE PAINT GRIP GALVANIZED STEEL BODY
- ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL
Outdoor use to provide a degree of protection against wind blown dust and wind blown rain; undamaged by the formation of ice on the enclosure.
For large quantities or custom sizes call factory
| Enclosure Size HxWxD | Catalog Number | Weight | UPC_12Digit |
|---|---|---|---|
| 6x6x4 | 664FB | 6 lbs | 806101020479 |
| 8x8x4 | 884FB | 9 lbs | 806101020486 |
| 12x12x6 | 12126FB | 33 lbs | 806101020493 |
| 18x18x6 | 18186FB | 35 lbs | 806101020509 |
| 24x24x6 | 24246FB | 70 lbs | 806101020516 |
