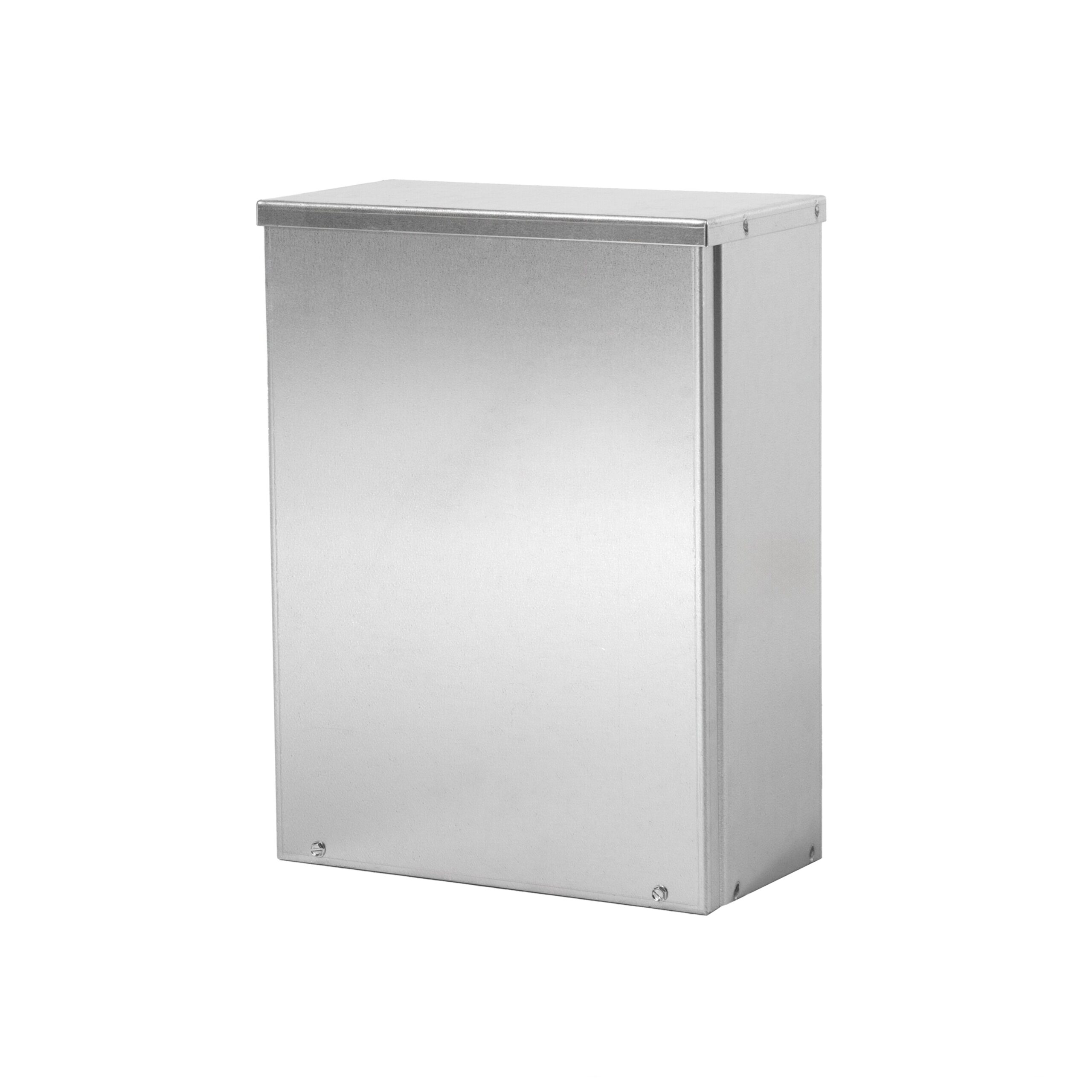

TYPE 3R GALVANIZED SCREW COVER RAIN PROOF BOX NO KO’S
Construction:- SLIDE-ON REMOVABLE COVER FASTENED WITH PLATED STEEL SCREWS ALONG BOTTOM EDGE
- CODE GAUGE G-60 or G-90 GALVANIZED STEEL
- DRIP SHIELD TOP, FRONT, SIDES AND BACK PROTECT FROM FALLING RAIN, SNOW, OR SLEET
- TYPE 3R SCREW COVER BOXES ARE PROVIDED IN G-60 or G-90 GALVANIZED STEEL
Outdoor use to provide a degree of protection against falling rain; undamaged by the formation of ice on the enclosure.
For large quantities or custom sizes call factory

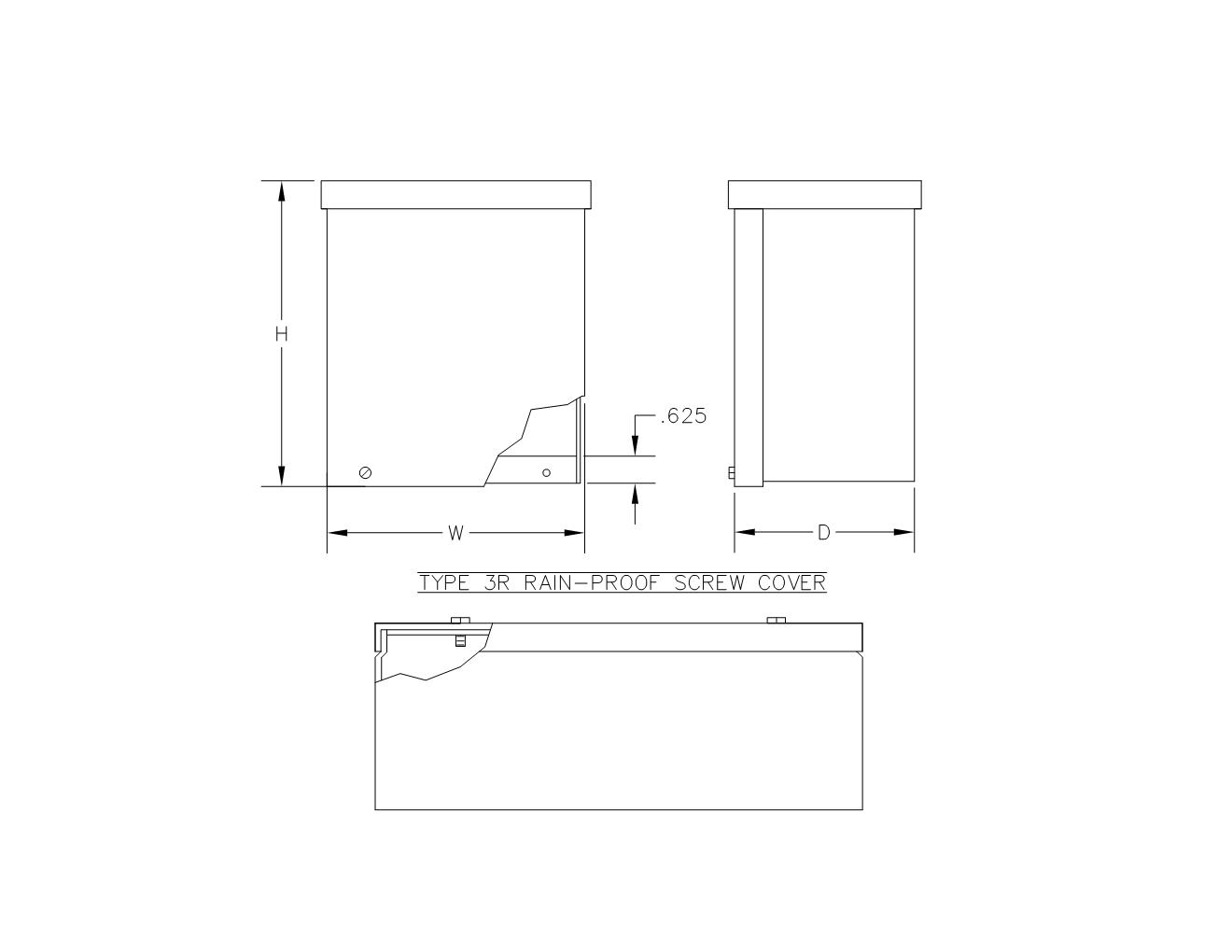

| Enclosure Size HxWxD | Catalog Number | Weight | UPC_12Digit |
|---|---|---|---|
| 4x4x4 | 444RB | 4 lbs | 806101029557 |
| 6x6x4 | 664RB | 7 lbs | 806101015000 |
| 8x6x4 | 864RB | 5 lbs | 806101015017 |
| 8x8x4 | 884RB | 7 lbs | 806101015024 |
| 10x8x4 | 1084RB | 8 lbs | 806101015031 |
| 12x8x4 | 1284RB | 9 lbs | 806101015048 |
| 10x10x4 | 10104RB | 9 lbs | 806101015055 |
| 12x12x4 | 12124RB | 12 lbs | 806101015062 |
| 16x16x4 | 16164RB | 21 lbs | |
| 18x18x4 | 18184RB | 26 lbs | 806101029595 |
| 6x6x6 | 666RB | 5 lbs | 806101015079 |
| 8x8x6 | 886RB | 8 lbs | 806101015086 |
| 10x8x6 | 1086RB | 9 lbs | 806101015093 |
| 10x10x6 | 10106RB | 11 lbs | 806101015109 |
| 12x10x6 | 12106RB | 12 lbs | 806101015116 |
| 12x12x6 | 12126RB | 14 lbs | 806101015123 |
| 15x12x6 | 15126RB | 17 lbs | 806101015130 |
| 15x15x6 | 15156RB | 16 lbs | 806101030386 |
| 18x12x6 | 18126RB | 19 lbs | 806101015147 |
| 16x16x6 | 16166RB | 25 lbs | 806101035756 |
| 18x15x6 | 18156RB | 23 lbs | 806101015154 |
| 18x18x6 | 18186RB | 26 lbs | 806101015161 |
| 20x20x6 | 20206RB | 33 lbs | |
| 24x18x6 | 24186RB | 33 lbs | 806101015178 |
| 24x24x6 | 24246RB | 41 lbs | 806101015185 |
| 30x30x6 | 30306RB | 62 lbs | |
| 36x36x6 | 36366RB | 116 lbs | |
| 8x8x8 | 888RB | 10 lbs | |
| 12x12x8 | 12128RB | 16 lbs | 806101015192 |
| 16x16x8 | 16168RB | 28 lbs | |
| 18x15x8 | 18158RB | 26 lbs | 806101015208 |
| 18x18x8 | 18188RB | 29 lbs | 806101015215 |
| 24x18x8 | 24188RB | 37 lbs | 806101015222 |
| 24x24x8 | 24248RB | 46 lbs | 806101015239 |
| 30x24x8 | 30248RB | 55 lbs | 806101015246 |
| 30x30x8 | 30308RB | 68 lbs | |
| 36x24x8 | 36248RB | 60 lbs | |
| 36x36x8 | 36368RB | 116 lbs | |
| 12x12x10 | 121210RB | 22 lbs | |
| 18x18x10 | 181810RB | 34 lbs | |
| 24x24x10 | 242410RB | 50 lbs | 806101015253 |
| 30x30x10 | 303010RB | 75 lbs | |
| 36x24x10 | 362410RB | 71 lbs | |
| 36x36x10 | 363610RB | 100 lbs | |
| 12x12x12 | 121212RB | 22 lbs | |
| 18x18x12 | 181812RB | 36 lbs | 806101015260 |
| 24x12x12 | 241212RB | 29 lbs | |
| 24x18x12 | 241812RB | 44 lbs | 806101015277 |
| 24x24x12 | 242412RB | 54 lbs | 806101015284 |
| 30x30x12 | 303012RB | 81 lbs | 806101029625 |
| 36x24x12 | 362412RB | 75 lbs | 806101015291 |
| 36x30x12 | 363012RB | 88 lbs | 806101015307 |
| 36x36x12 | 363612RB | 106 lbs | 806101015314 |
| 48x47x12 | 484712RB | 165 lbs | |
| 24x24x16 | 242416RB | 68 lbs | |
| 36x36x16 | 363616RB | 119 lbs | |
| 48x47x16 | 484716RB | 182 lbs | |
| 24x24x18 | 242418RB | 72 lbs | |
| 36x24x18 | 362418RB | 89 lbs | |
| 36x36x18 | 363618RB | 127 lbs | |
| 48x47x18 | 484718RB | 191 lbs | |
| 24x24x24 | 242424RB | 86 lbs | |
| 36x36x24 | 363624RB | 147 lbs | |
| 48x47x24 | 484724RB | 217 lbs | |
| 36x36x36 | 363636RB | 187 lbs |
