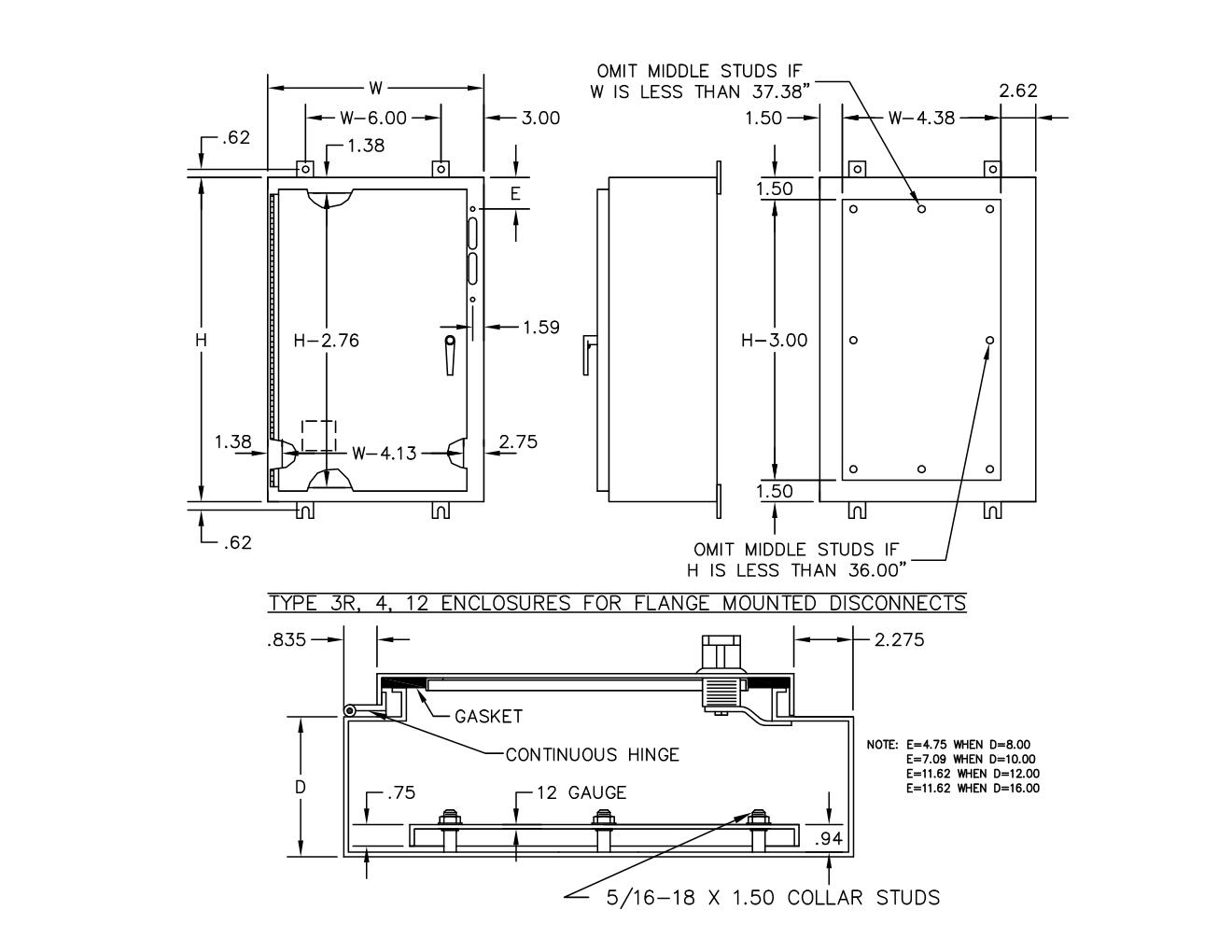

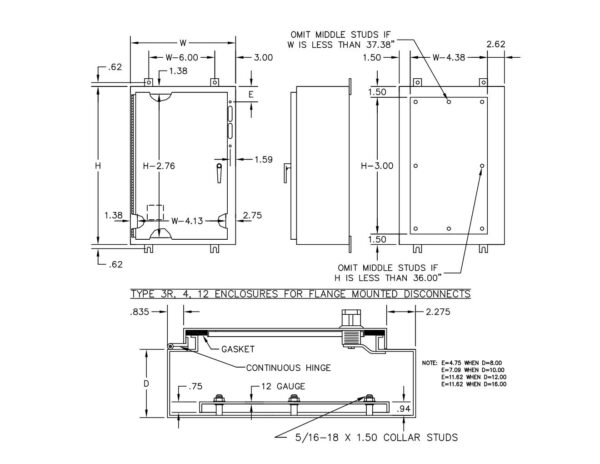

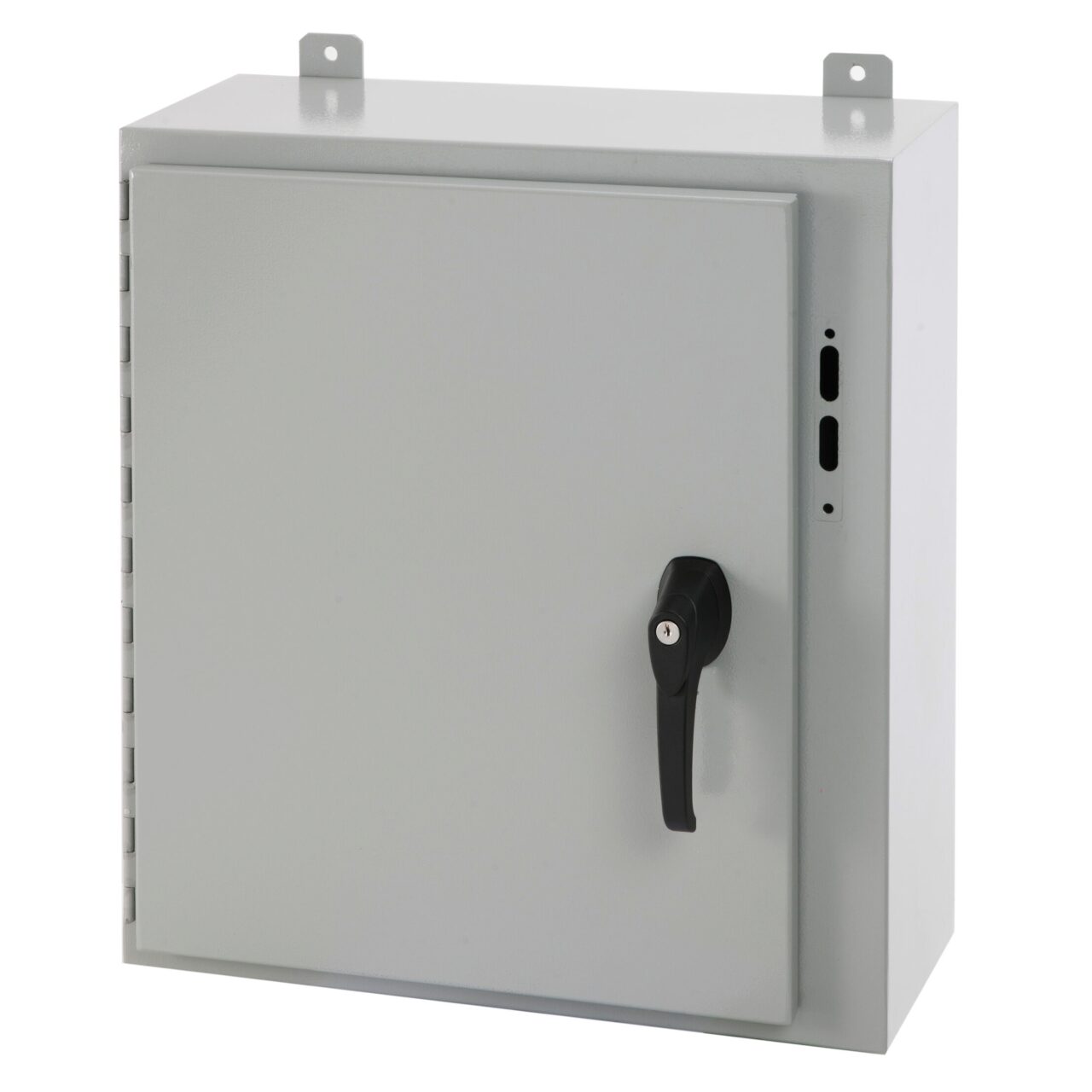

TYPE 4, 12 PAINTED SINGLE DOOR FLANGE-MOUNTED DISCONNECT ENCLOSURE WITH 3 POINT LATCH & EBOX 1S PADLOCKING HANDLE
Construction:- SEAMS CONTINUOUSLY WELDED AND GROUND SMOOTH
- LATCH RODS HAVE ROLLERS FOR EASIER DOOR CLOSING
- HEAVY GAUGE CONTINUOUS HINGE
- PRINT POCKET
- 12 GAUGE PAINT GRIP GALVANNEAL STEEL
- 3 POINT LATCHING MECHANISM OPERATED BY KEYLOCKING / PADLOCKING L-HANDLE
- LIFTING EYES FOR EASY HANDLING
- OIL-RESISTANT DOOR GASKET
- UNI-STRUT PROVIDED FOR MOUNTING OPTIONAL PANEL
- ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL
Satisfies both UL Type 4 and 12 intended uses. Type 4-Either indoor or outdoor use to provide a degree of protection against falling rain, splashing water, hose directed water; undamaged by the formation of ice on the enclosure. Type 12-Indoor use to provide a degree of protection against dust, dirt, fiber, flyings, dripping water and external condensation of non corrosive liquids.
For large quantities or custom sizes call factory
| Enclosure Size HxWxD | Catalog Number | Weight | UPC_12Digit |
|---|---|---|---|
| 24x22x8 | 24228FDN43PT | 47 lbs | |
| 24x26x8 | 24268FDN43PT | 54 lbs | |
| 30x22x8 | 30228FDN43PT | 56 lbs | |
| 30x26x8 | 30268FDN43PT | 64 lbs | |
| 36x26x8 | 36268FDN43PT | 75 lbs | |
| 36x32x8 | 36328FDN43PT | 82 lbs | |
| 42x32x8 | 42328FDN43PT | 98 lbs | |
| 42x38x8 | 42388FDN43PT | 112 lbs | |
| 48x38x8 | 48388FDN43PT | 126 lbs | |
| 60x38x8 | 60388FDN43PT | 153 lbs | |
| 24x22x10 | 242210FDN43PT | 52 lbs | |
| 24x26x10 | 242610FDN43PT | 58 lbs | |
| 30x22x10 | 302210FDN43PT | 61 lbs | |
| 30x26x10 | 302610FDN43PT | 69 lbs | |
| 36x26x10 | 362610FDN43PT | 79 lbs | 806101030485 |
| 36x32x10 | 363210FDN43PT | 88 lbs | |
| 42x32x10 | 423210FDN43PT | 105 lbs | 806101030508 |
| 42x38x10 | 423810FDN43PT | 119 lbs | 806101030515 |
| 48x38x10 | 483810FDN43PT | 134 lbs | 806101030522 |
| 60x38x10 | 603810FDN43PT | 162 lbs | 806101030539 |
| 30x26x12 | 302612FDN43PT | 74 lbs | |
| 42x32x12 | 423212FDN43PT | 112 lbs | 806101030560 |
| 42x38x12 | 423812FDN43PT | 127 lbs | 806101030577 |
| 48x38x12 | 483812FDN43PT | 142 lbs | 806101030584 |
| 60x38x12 | 603812FDN43PT | 171 lbs | 806101030591 |
| 36x32x16 | 363216FDN43PT | 106 lbs | 806101030607 |
| 60x18x16 | 603816FDN43PT | 188 lbs | 806101030621 |
| 48x48x16 | 483816FDN43PT | 157 lbs | 806101030614 |
