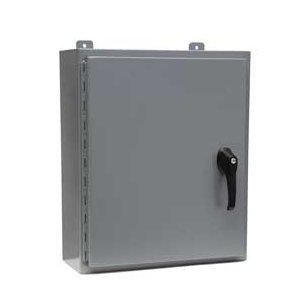

TYPE 4 PAINTED SINGLE DOOR CONTINUOUS HINGE ENCLOSURE WITH 3 POINT LATCH & KEYLOCKING/PADLOCKING HANDLE
TYPE 4 PAINTED SINGLE DOOR CONTINUOUS HINGE ENCLOSURE WITH 3 POINT LATCH & KEYLOCKING/PADLOCKING HANDLE - Image 2
,

TYPE 4 PAINTED SINGLE DOOR CONTINUOUS HINGE ENCLOSURE WITH 3 POINT LATCH & KEYLOCKING/PADLOCKING HANDLE

Construction:
  • HEAVY GAUGE CONTINUSUS HINGE
  • 3 POINT LATCHING MECHANISM OPERATED BY KEYLOCKING / PADLOCKING L-HANDLE
  • CODE GAUGE PAINT GRIP GALVANIZED STEEL
  • SEAMS CONTINUOUSLY WELDED AND GROUND SMOOTH
  • OIL RESISTANT GASKET
  • STUDS PROVIDED FOR MOUNTING OPTIONAL PANEL
Finish:
  • ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL

Either indoor or outdoor use to provide a degree of protection against falling rain, splashing water, hose directed water; undamaged by the formation of ice on the enclosure.

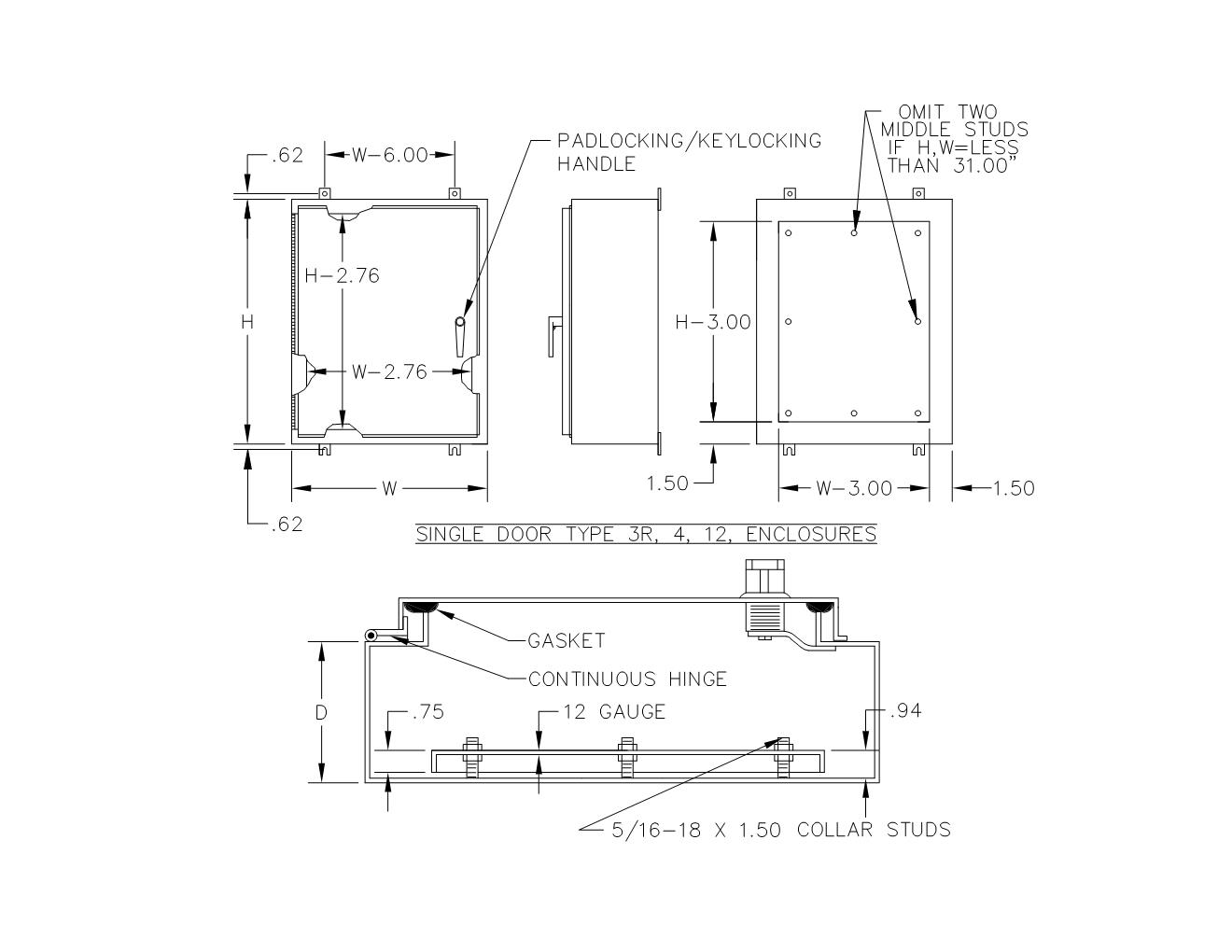

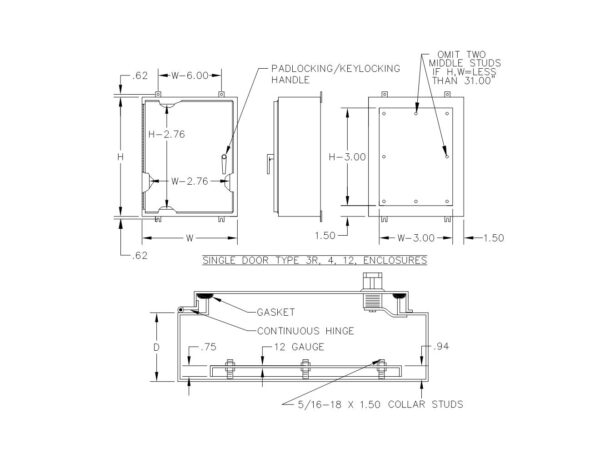

DOWNLOAD SPEC SHEET

SKU: N43PT Categories: ,

For large quantities or custom sizes call factory
Enclosure Size HxWxDCatalog NumberWeightUPC_12Digit
24x12x624126N43PT28 lbs806101031659
24x16x624166N43PT28 lbs806101031666
24x20x624206N43PT40 lbs806101032007
24x24x624246N43PT46 lbs806101033417
30x20x630206N43PT48 lbs806101033424
30x24x630246N43PT52 lbs806101033455
36x24x636246N43PT64 lbs806101033462
24x20x824208N43PT44 lbs806101032014
24x24x824248N43PT50 lbs806101032021
30x20x830208N43PT52 lbs806101033431
30x24x830248N43PT60 lbs806101032038
30x30x830308N43PT71 lbs806101032045
36x24x836248N43PT69 lbs806101032052
36x30x836308N43PT82 lbs806101032069
42x30x842308N43PT93 lbs806101033493
42x36x842368N43PT108 lbs806101033509
48x36x848368N43PT120 lbs806101032076
60x36x860368N43PT146 lbs806101033530
24x20x10242010N43PT48 lbs806101032083
30x24x10302410N43PT65 lbs806101033448
36x30x10363010N43PT88 lbs806101032137
42x30x10423010N43PT100 lbs806101033486
48x30x10483010N43PT111 lbs806101033516
48x36x10483610N43PT128 lbs806101032106
60x36x10603610N43PT155 lbs806101033523
24x24x12242412N43PT59 lbs806101032113
30x24x12302412N43PT69 lbs806101032120
36x30x12363012N43PT94 lbs806101033479
36x36x12363612N43PT112 lbs806101032144
42x36x12423612N43PT119 lbs806101032151
48x36x12483612N43PT136 lbs806101032168
60x36x12603612N43PT164 lbs806101032175
48x36x16483616N43PT151 lbs806101032182
60x36x16603616N43PT181 lbs806101032199
