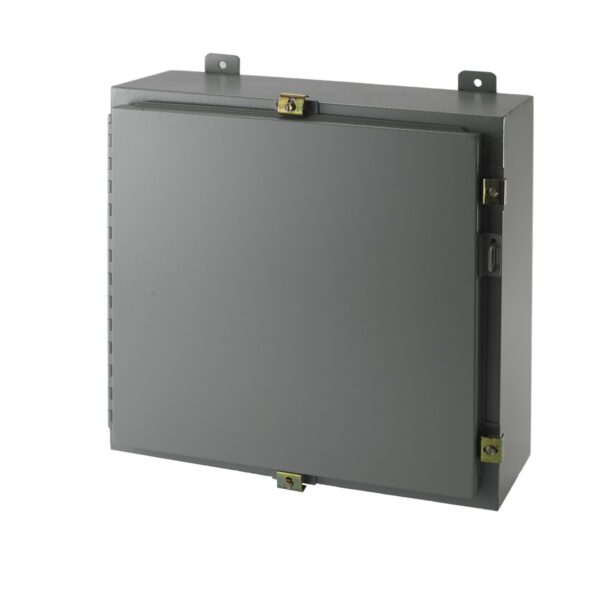

TYPE 4 SINGLE DOOR PAINTED WALL MOUNT HINGED COVER ENCLOSURE W/ CLAMPS
TYPE 4 SINGLE DOOR PAINTED WALL MOUNT HINGED COVER ENCLOSURE W/ CLAMPS - Image 2
TYPE 4 SINGLE DOOR PAINTED WALL MOUNT HINGED COVER ENCLOSURE W/ CLAMPS - Image 3
,

TYPE 4 SINGLE DOOR PAINTED WALL MOUNT HINGED COVER ENCLOSURE W/ CLAMPS

Construction:
  • CODE GAUGE PAINT GRIP GALVANIZED STEEL
  • SEAMS CONTINUOUSLY WELDED AND GROUND SMOOTH
  • OIL RESISTANT GASKET
  • CONTINUOUS HINGE
  • SCREW CLAMPS ARE QUICK AND EASY TO OPERATE
  • STUDS PROVIDED FOR MOUNTING OPTIONAL BACK PANEL
  • EXTERNAL MOUNTING TABS FOR EASY INSTALLATION
Finish:
  • ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL

Either indoor or outdoor use to provide a degree of protection against falling rain, splashing water, hose directed water; undamaged by the formation of ice on the enclosure.

DOWNLOAD SPEC SHEET 30″ WIDE AND SMALLER
DOWNLOAD SPEC SHEET 30″ WIDE AND LARGER

Select your size
SKU: N4 Categories: ,

For large quantities or custom sizes call factory
Enclosure Size HxWxDCatalog NumberWeightUPC_12Digit
16x12x616126N420 lbs806101015772
16x16x616166N425 lbs806101015789
16x20x616206N429 lbs806101015802
18x18x618186N430 lbs
20x16x620166N429 lbs806101015796
24x12x624126N428 lbs806101015826
20x20x620206N434 lbs806101015819
24x16x624166N428 lbs806101015833
24x20x624206N440 lbs806101015840
24x24x624246N446 lbs806101015857
30x20x630206N448 lbs806101015864
30x24x630246N452 lbs806101015871
36x24x636246N464 lbs806101015888
16x12x816128N423 lbs806101015895
16x16x816168N428 lbs
18x18x818188N433 lbs
20x16x820168N432 lbs806101015901
20x20x820208N438 lbs806101015918
24x20x824208N444 lbs806101015925
24x24x824248N450 lbs806101015932
30x20x830208N452 lbs806101015949
30x24x830248N460 lbs806101015956
30x30x830308N471 lbs806101015963
36x24x836248N469 lbs806101015970
36x30x836308N482 lbs806101015987
36x36x836368N495 lbs
42x30x842308N493 lbs806101015994
42x36x842368N4108 lbs806101016007
48x36x848368N4120 lbs806101016014
60x36x860368N4146 lbs806101016021
18x12x10181210N428 lbs
16x16x10161610N4207 lbs
18x18x10181810N436 lbs
20x16x10201610N436 lbs806101016038
24x20x10242010N448 lbs806101016045
24x24x10242410N455 lbs
30x24x10302410N465 lbs806101016052
36x30x10363010N488 lbs806101030188
36x36x10363610N4102 lbs
48x30x10483010N4111 lbs806101016076
48x36x10483610N4128 lbs806101016083
60x36x10603610N4155 lbs806101016090
18x18x12181812N440 lbs
24x24x12242412N459 lbs
30x24x12302412N469 lbs806101016106
36x24x12362412N480 lbs
36x36x12363612N4108 lbs
48x36x12483612N4136 lbs806101016120
24x24x16242416N468 lbs
36x36x24363624N4148 lbs
