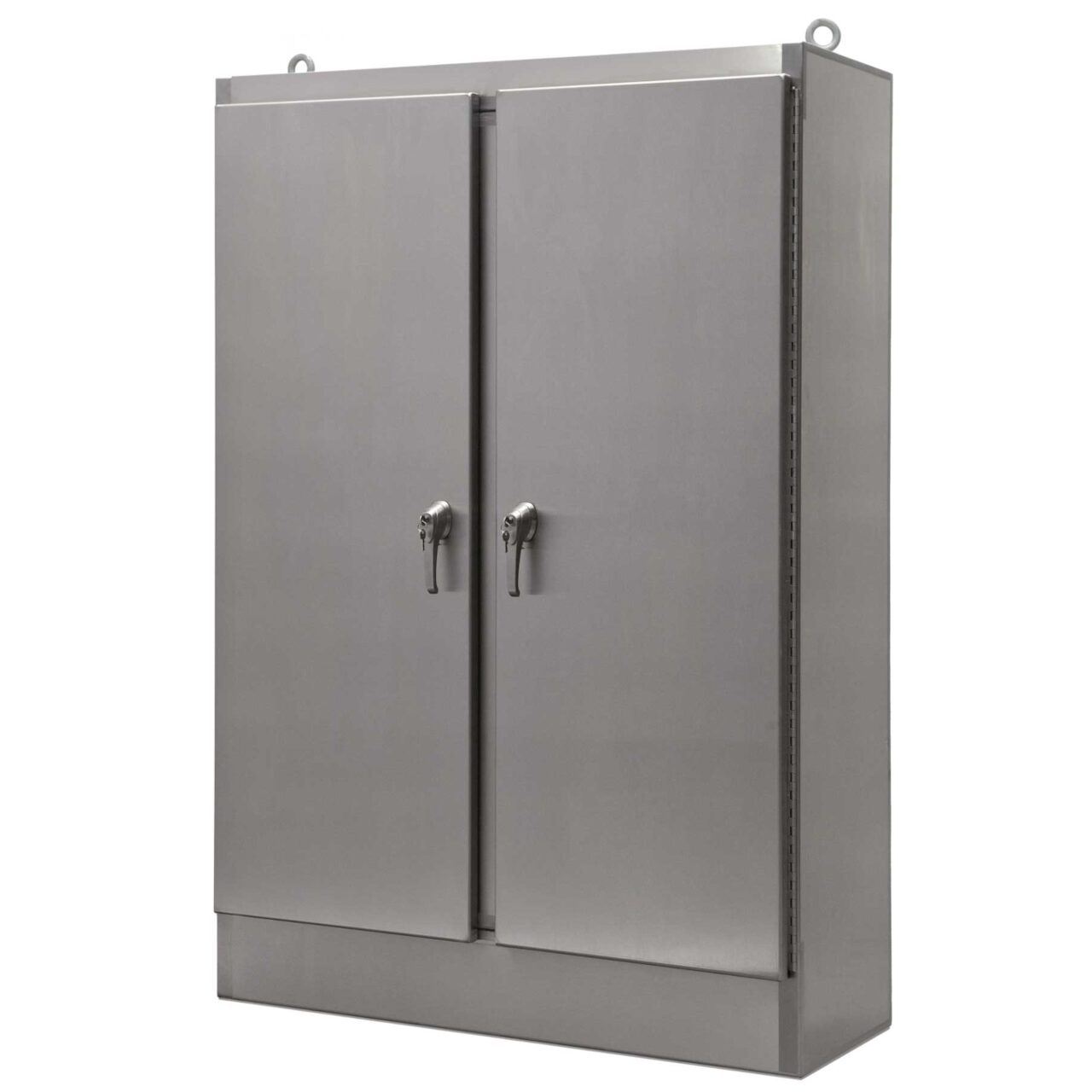

TYPE 4X 304 STAINLESS STEEL DOUBLE DOOR FREESTANDING ENCLOSURE WITH 3 POINT LATCH & KEYLOCKING/PADLOCKING HANDLE
Construction:- SEAMS CONTINUOUSLY WELDED AND GROUND SMOOTH
- CODE GAUGE TYPE 304 STAINLESS STEEL
- REMOVABLE PRINT POCKET
- REMOVABLE CENTERPOST FOR EASY PANEL INSTALLATION
- UNI-STRUT PROVIDED FOR MOUNTING OPTIONAL PANEL
- 3 POINT LATCHING MECHANISM OPERATED BY KEYLOCKING / PADLOCKING L-HANDLE
- OIL RESISTANT GASKET
- HEAVY GAUGE CONTINUOUS HINGE
- HEAVY DUTY LIFTING EYES
- NUMBER 3 BRUSHED FINISH
Either indoor or outdoor use to provide a degree of protection against falling rain, splashing water, hose directed water; undamaged by the formation of ice on the enclosure; resists corrosion.
For large quantities or custom sizes call factory
| Enclosure Size HxWxD | Catalog Number | Weight | UPC_12Digit |
|---|---|---|---|
| 60x48x18 | SDF604818N4X3PT | 340 lbs | 806101032465 |
| 72x48x18 | SDF724818N4X3PT | 395 lbs | 806101032472 |
| 72x60x18 | SDF726018N4X3PT | 469 lbs | 806101032489 |
| 72x72x18 | SDF727218N4X3PT | 542 lbs | 806101032496 |
| 90x48x20 | SDF904820N4X3PT | 495 lbs | 806101032502 |
| 90x72x20 | SDF907220N4X3PT | 674 lbs | 806101032519 |
| 72x48x24 | SDF724824N4X3PT | 442 lbs | 806101032526 |
| 72x60x24 | SDF726024N4X3PT | 521 lbs | 806101032533 |
| 72x72x24 | SDF727224N4X3PT | 599 lbs | 806101032540 |
| 90x72x24 | SDF907224N4X3PT | 717 lbs | 806101032557 |
| 72x60x36 | SDF726036N4X3PT | 625 lbs | 806101032564 |
| 90x72x36 | SDF907236N4X3PT | 859 lbs | 806101032571 |
