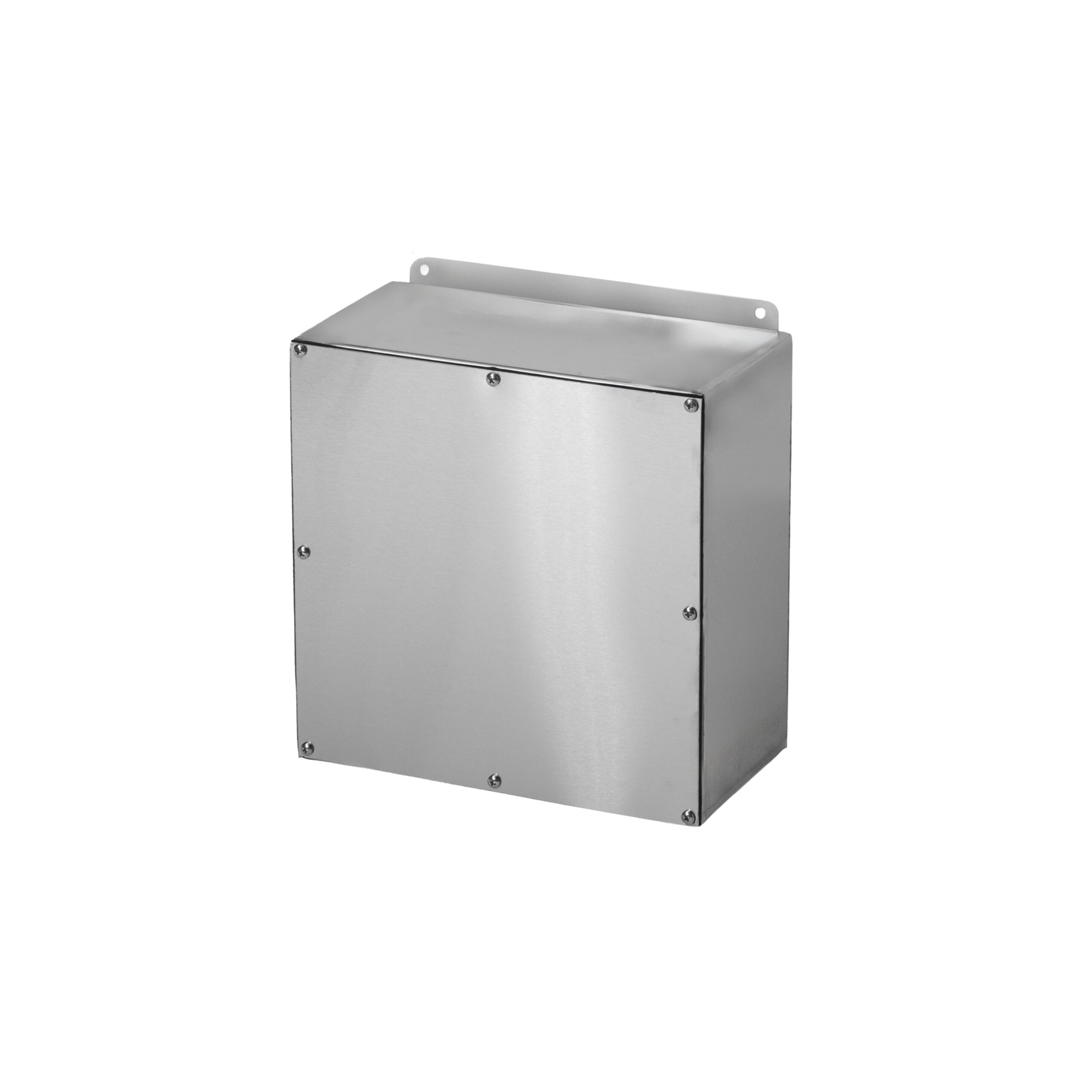

TYPE 4X 304 STAINLESS STEEL GASKETED SCREW COVER BOX
TYPE 4X 304 STAINLESS STEEL GASKETED SCREW COVER BOX - Image 2
TYPE 4X 304 STAINLESS STEEL GASKETED SCREW COVER BOX - Image 3
,

TYPE 4X 304 STAINLESS STEEL GASKETED SCREW COVER BOX

Construction:
  • SEAMS CONTINUOUSLY WELDED AND GROUND SMOOTH
  • REMOVABLE GASKETED COVER FASTEND WITH STAINLESS STEEL SCREWS
  • CODE GAUGE TYPE 304 STAINLESS STEEL
Finish:
  • NUMBER 3 BRUSHED FINISH

Either indoor or outdoor use to provide a degree of protection against falling rain, splashing water, hose directed water; undamaged by the formation of ice on the enclosure; resists corrosion.

DOWNLOAD SPEC SHEET 4X4 – 14X14

DOWNLOAD SPEC SHEET 15X15 – 35X35

DOWNLOAD SPEC SHEET 36X36 AND LARGER

Select your size
SKU: SSGN4X Categories: ,

For large quantities or custom sizes call factory
Enclosure Size HxWxDCatalog NumberWeightUPC_12Digit
4x4x4S444SGN4X3 lbs806101030829
6x6x4S664SGN4X5 lbs806101030836
8x6x4S864SGN4X6 lbs806101030843
8x8x4S884SGN4X7 lbs806101030850
10x8x4S1084SGN4X8 lbs806101030874
10x10x4S10104SGN4X10 lbs806101030867
12x10x4S12104SGN4X11 lbs806101030881
12x12x4S12124SGN4X13 lbs806101030898
6x6x6S666SGN4X6 lbs806101030904
8x8x6S886SGN4X8 lbs806101030911
10x10x6S10106SGN4X12 lbs806101030928
12x12x6S12126SGN4X15 lbs806101030935
15x12x6S15126SGN4X18 lbs806101030942
15x15x6S15156SGN4X21 lbs806101030959
18x18x6S18186SGN4X28 lbs806101030966
24x18x6S24186SGN4X35 lbs806101030973
24x24x6S24246SGN4X44 lbs806101030980
8x8x8S888SGN4X10 lbs806101030997
12x12x8S12128SGN4X17 lbs806101031000
18x18x8S18188SGN4X31 lbs806101031017
24x24x8S24248SGN4X48 lbs806101031024
30x24x8S30248SGN4X58 lbs806101031031
30x30x8S30308SGN4X69 lbs806101031048
36x24x8S36248SGN4X67 lbs806101031055
36x30x8S36308SGN4X80 lbs806101031062
18x18x10S181810SGN4X35 lbs806101031079
24x24x10S242410SGN4X53 lbs806101031086
30x24x10S302410SGN4X63 lbs806101031093
30x30x10S303010SGN4X75 lbs806101031109
36x24x10S362410SGN4X73 lbs806101031116
18x18x12S181812SGN4X38 lbs806101031123
24x24x12S242412SGN4X58 lbs806101031130
30x30x12S303012SGN4X81 lbs806101031147
36x36x12S363612SGN4X147 lbs806101031154
