Products, Type 4X

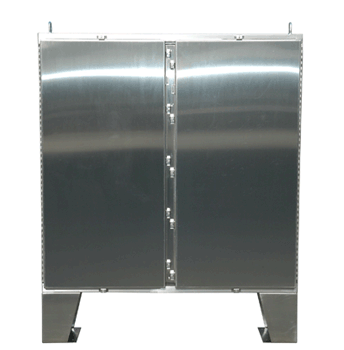

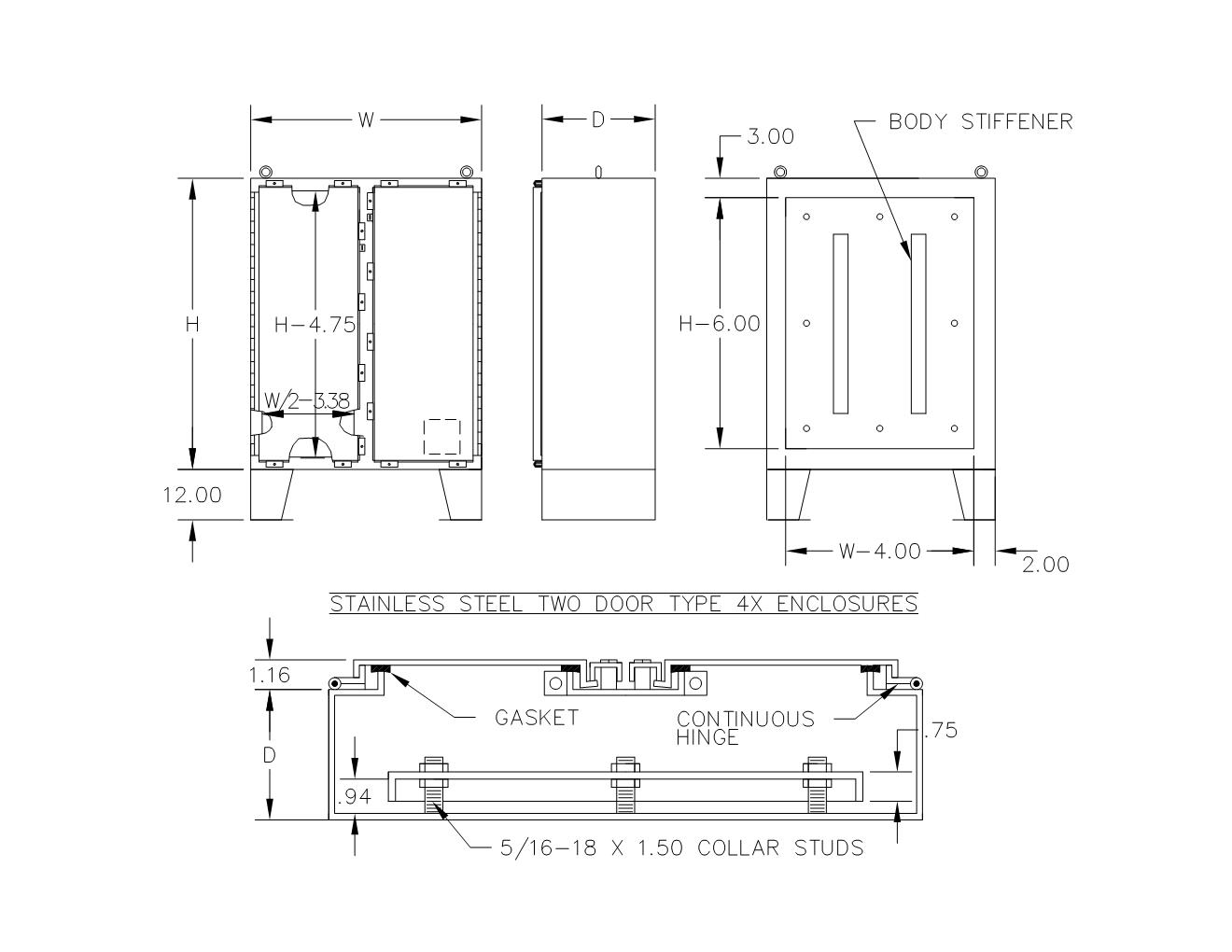

TYPE 4X 304 STAINLESS STEEL HINGED DOUBLE DOOR FLOOR MOUNT ENCLOSURE W/ CLAMPS
Construction:- SEAMS CONTINUOUSLY WELDED AND GROUND SMOOTH
- STAINLESS STEEL SCREWS AND CLAMPS ON THREE SIDES OF EACH DOOR ASSURE WATER TIGHT SEAL
- CODE GAUGE TYPE 304 STAINLESS STEEL
- REMOVABLE PRINT POCKET
- REMOVABLE CENTERPOST FOR EASY PANEL INSTALLATION
- 12 INCH FLOOR STANDS ARE WELDED TO ENCLOSURE
- UNI-STRUT PROVIDED FOR MOUNTING OPTIONAL PANEL
- HEAVY DUTY LIFTING EYES
- HEAVY GAUGE CONTINUOUS HINGE
- OIL RESISTANT GASKET
- NUMBER 3 BRUSHED FINISH
Either indoor or outdoor use to provide a degree of protection against falling rain, splashing water, hose directed water; undamaged by the formation of ice on the enclosure; resists corrosion.
For large quantities or custom sizes call factory
| Enclosure Size HxWxD | Catalog Number | Weight | UPC_12Digit |
|---|---|---|---|
| 62x48x10 | SD624810N4X | 291 lbs | 806101019152 |
| 62x60x12 | SD626012N4X | 366 lbs | 806101019169 |
| 74x72x12 | SD747212N4X | 496 lbs | 806101019176 |
