Type 4X, Products

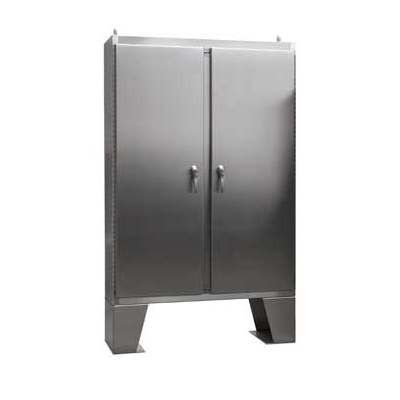

TYPE 4X 304 STAINLESS STEEL HINGED DOUBLE DOOR FLOOR MOUNT ENCLOSURE WITH 3 POINT LATCH & KEYLOCKING/PADLOCKING HANDLE
Construction:- SEAMS CONTINUOUSLY WELDED AND GROUND SMOOTH
- CODE GAUGE TYPE 304 STAINLESS STEEL
- REMOVABLE PRINT POCKET
- REMOVABLE CENTERPOST FOR EASY PANEL INSTALLATION
- UNI-STRUT PROVIDED FOR MOUNTING OPTIONAL PANEL
- OIL RESISTANT GASKET
- HEAVY GAUGE CONTINUOUS HINGE
- HEAVY DUTY LIFTING EYES
- 3 POINT LATCHING MECHANISM OPERATED BY KEYLOCKING / PADLOCKING L-HANDLE
- 12 INCH FLOOR STANDS ARE WELDED TO ENCLOSURE
- NUMBER 3 BRUSHED FINISH
Either indoor or outdoor use to provide a degree of protection against falling rain, splashing water, hose directed water; undamaged by the formation of ice on the enclosure; resists corrosion.
For large quantities or custom sizes call factory
| Enclosure Size HxWxD | Catalog Number | Weight | UPC_12Digit |
|---|---|---|---|
| 62x48x10 | SD624810N4X3PT | 291 lbs | 806101032328 |
| 62x60x12 | SD626012N4X3PT | 366 lbs | 806101032410 |
| 74x60x12 | SD746012N4X3PT | 463 lbs | 806101032427 |
| 74x72x12 | SD747212N4X3PT | 596 lbs | 806101032434 |
| 62x48x18 | SD624818N4X3PT | 349 lbs | 806101032441 |
| 62x60x18 | SD626018N4X3PT | 415 lbs | 806101032335 |
| 74x60x18 | SD746018N4X3PT | 516 lbs | 806101032342 |
| 74x72x18 | SD747218N4X3PT | 554 lbs | 806101032359 |
| 74x72x24 | SD747224N4X3PT | 612 lbs | 806101032458 |
