Type 4X, Products

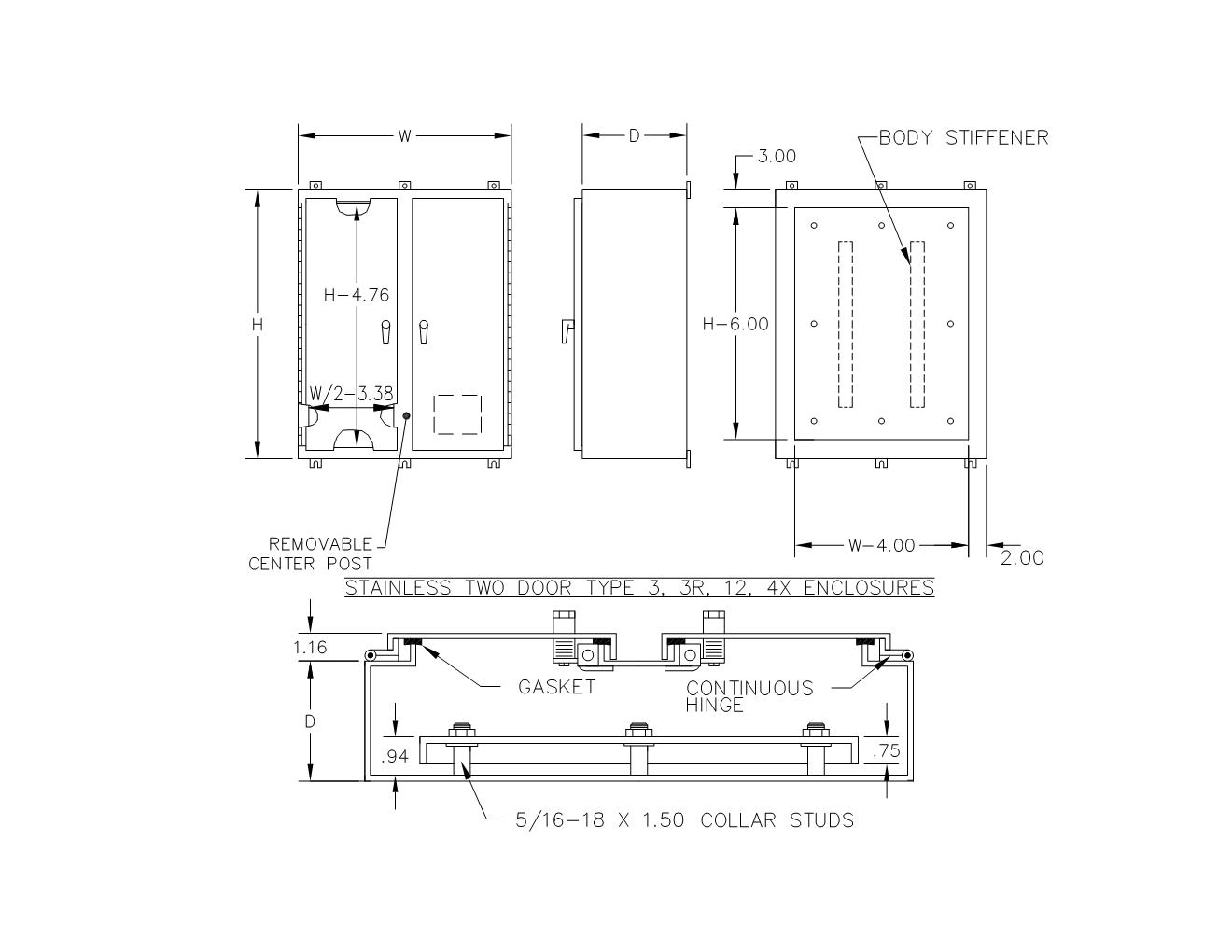

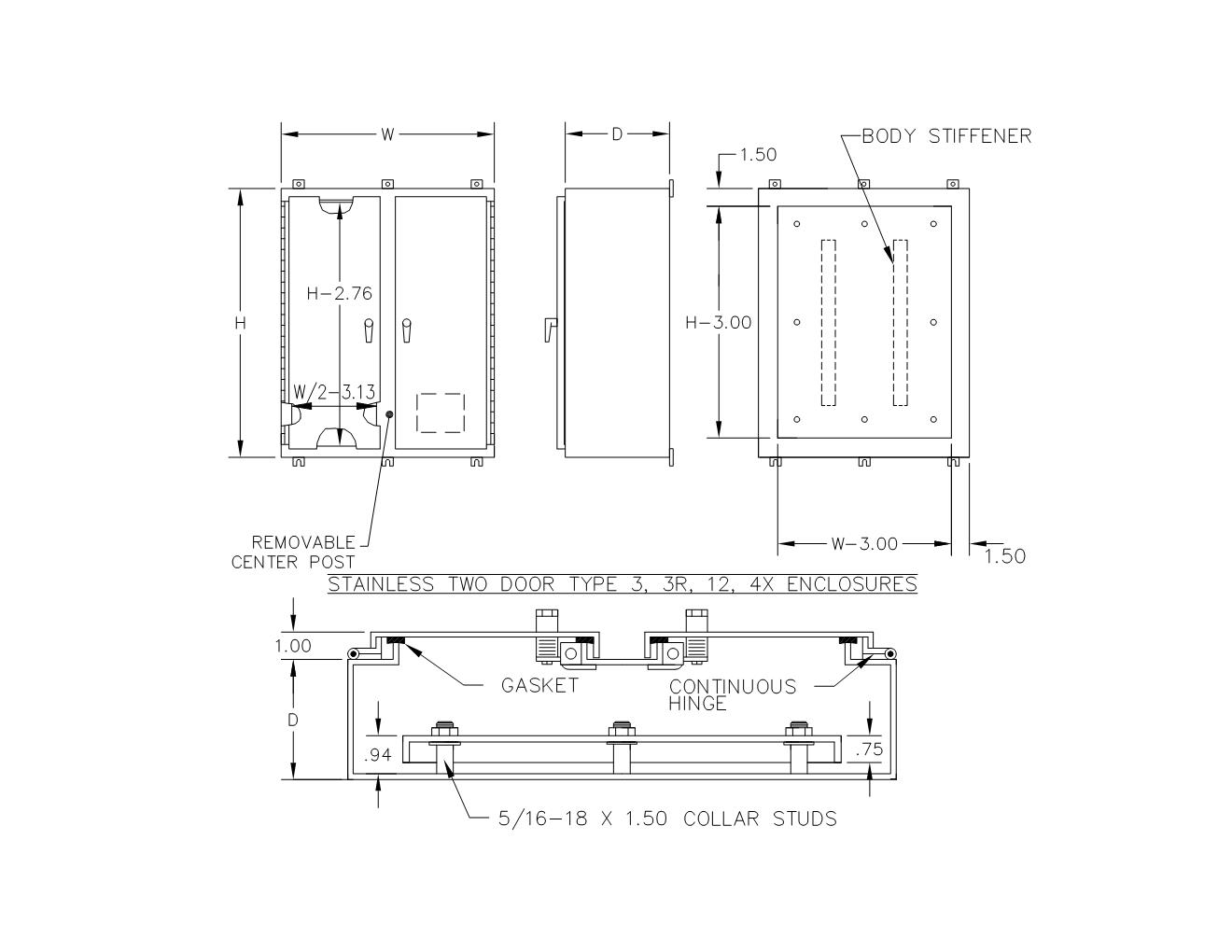

TYPE 4X 304 STAINLESS STEEL HINGED DOUBLE DOOR WALL MOUNT ENCLOSURE W/ 3 POINT LATCH & KEYLOCKING/PADLOCKING HANDLE
Construction:- SEAMS CONTINUOUSLY WELDED AND GROUND SMOOTH
- MOUNTING FEET
- CODE GAUGE TYPE 304 STAINLESS STEEL
- OIL RESISTANT GASKET
- STUDS PROVIDED FOR MOUNTING OPTIONAL PANEL
- 3 POINT LATCHING MECHANISM OPERATED BY KEYLOCKING / PADLOCKING L-HANDLE
- REMOVABLE CENTERPOST FOR EASY PANEL INSTALLATION
- NUMBER 3 BRUSHED FINISH
Either indoor or outdoor use to provide a degree of protection against falling rain, splashing water, hose directed water; undamaged by the formation of ice on the enclosure; resists corrosion.
For large quantities or custom sizes call factory
| Enclosure Size HxWxD | Catalog Number | Weight | UPC_12Digit |
|---|---|---|---|
| 24x42x8 | SDW24428N4X3PT | 83 lbs | 806101032274 |
| 24x48x8 | SDW24488N4X3PT | 102 lbs | 806101032281 |
| 30x42x10 | SDW304210N4X3PT | 105 lbs | 806101032298 |
| 30x48x10 | SDW304810N4X3PT | 118 lbs | 806101032304 |
| 30x60x10 | SDW306010N4X3PT | 143 lbs | 806101032311 |
| 36x42x12 | SDW364212N4X3PT | 129 lbs | 806101032205 |
| 42x42x12 | SDW424212N4X3PT | 141 lbs | 806101032236 |
| 42x48x12 | SDW424812N4X3PT | 177 lbs | 806101032243 |
| 48x48x12 | SDW484812N4X3PT | 247 lbs | 806101032267 |
| 36x60x12 | SDW366012N4X3PT | 126 lbs | 806101032229 |
| 42x60x12 | SDW426012N4X3PT | 267 lbs | 806101032250 |
