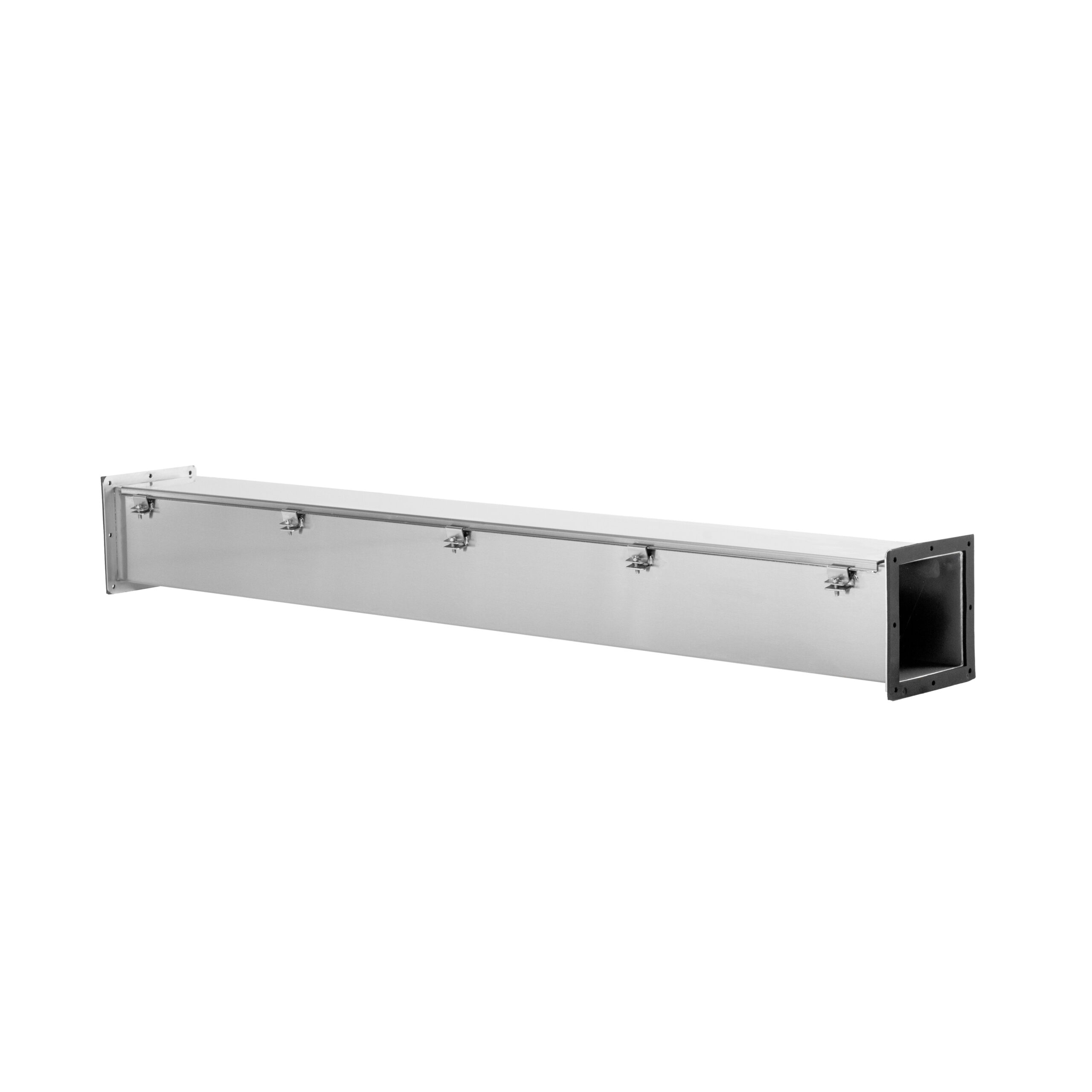

TYPE 4X 304 STAINLESS STEEL HINGED PULL THRU WIREWAY
TYPE 4X 304 STAINLESS STEEL HINGED PULL THRU WIREWAY - Image 2
,

TYPE 4X 304 STAINLESS STEEL HINGED PULL THRU WIREWAY

Construction:
  • STAINLESS STEEL BUTT HINGES
  • 12 GAUGE TYPE 304 STAINLESS STEEL END FLANGES
  • CODE GAUGE TYPE 304 STAINLESS STEEL
  • SCREW CLAMPS ARE QUICK AND EASY TO OPERATE
  • GASKET POSITIONED BETWEEN FLANGES WHEN SECTIONS AND FITTINGS ARE BOLTED TOGETHER
  • OIL RESISTANT GASKET
  • SEAMS CONTINUOUSLY WELDED AND GROUND SMOOTH
Finish:
  • NUMBER 3 BRUSHED FINISH

Either indoor or outdoor use to provide a degree of protection against falling rain, splashing water, hose directed water; undamaged by the formation of ice on the enclosure; resists corrosion.

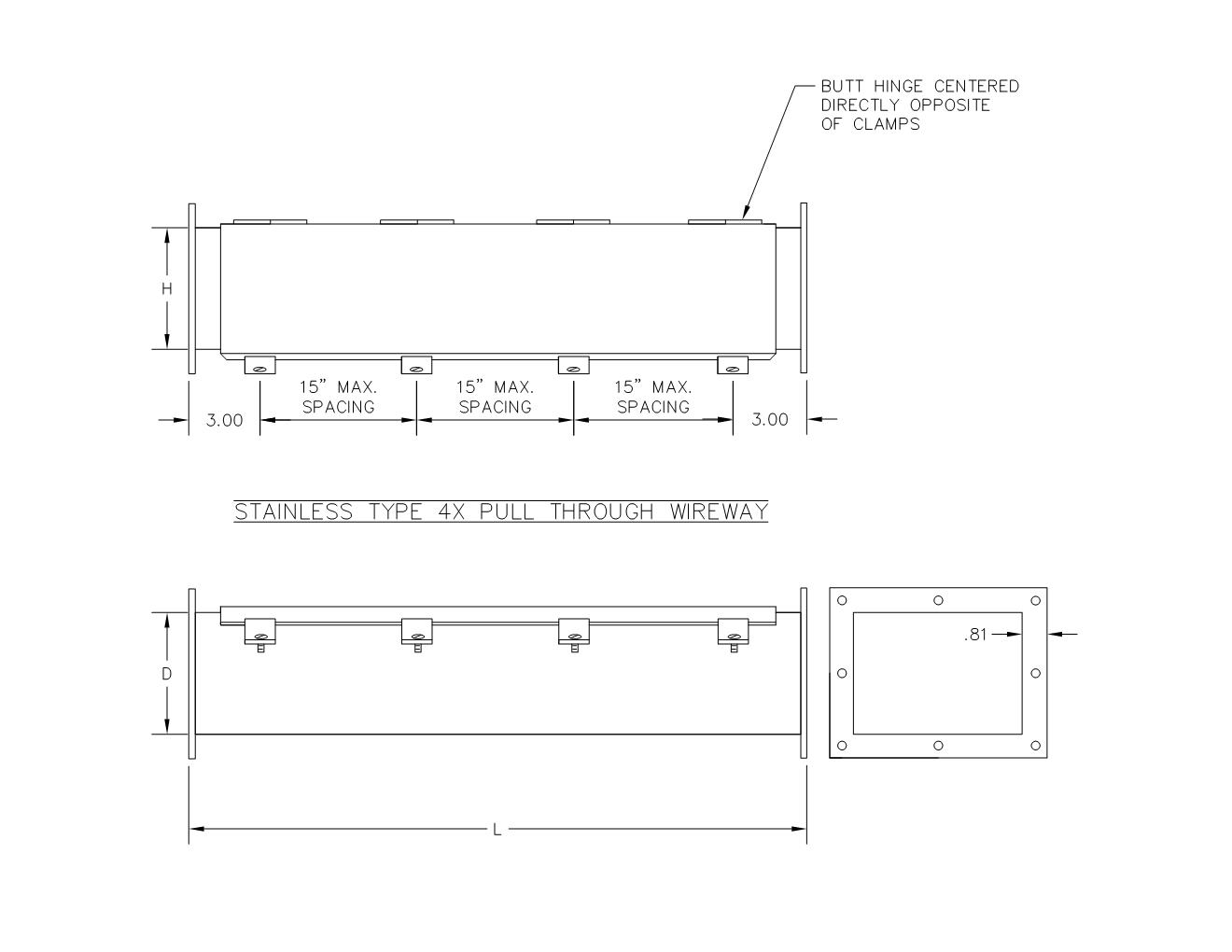

DOWNLOAD SPEC SHEET

LOOKING FOR FITTINGS? CLICK HERE

Select your size
SKU: SPT Categories: ,

For large quantities or custom sizes call factory
Wireway Size LxHxDCatalog NumberWeightUPC_12Digit
12x4x4S1-44P6 lbs806101019411
24x4x4S2-44P13 lbs806101019428
36x4x4S3-44P16 lbs806101019435
48x4x4S4-44P21 lbs806101019442
60x4x4S5-44P26 lbs806101019459
119x4x4S10-44P50 lbs806101019466
12x6x6S1-66P10 lbs806101019558
24x6x6S2-66P18 lbs806101019565
36x6x6S3-66P24 lbs806101019572
48x6x6S4-66P31 lbs806101019589
60x6x6S5-66P38 lbs806101019596
119x6x6S10-66P73 lbs806101019602
