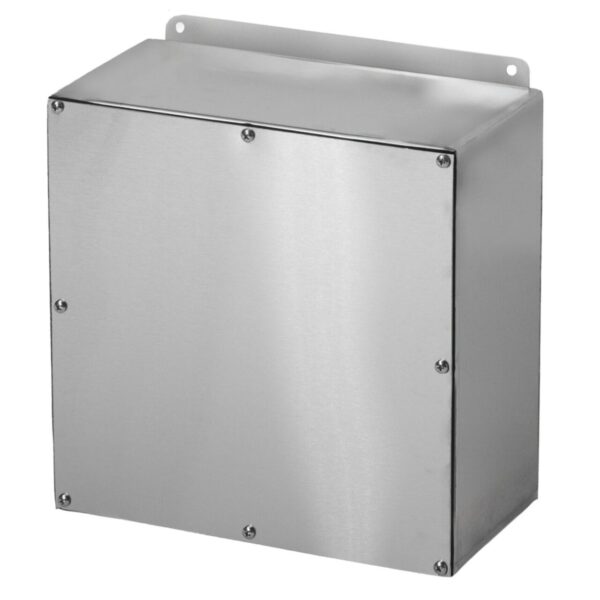

TYPE 4X ALUMINUM GASKETED SCREW COVER BOX
TYPE 4X ALUMINUM GASKETED SCREW COVER BOX - Image 2
TYPE 4X ALUMINUM GASKETED SCREW COVER BOX - Image 3
,

TYPE 4X ALUMINUM GASKETED SCREW COVER BOX

Construction:
  • SEAMS CONTINUOUSLY WELDED AND GROUND SMOOTH
  • REMOVABLE COVER FASTENED WITH STAINLESS STEEL SCREWS
  • TYPE 5052 H-32 .080 ALUMINUM
Finish:
  • NUMBER 3 BRUSHED FINISH

Either indoor or outdoor use to provide a degree of protection against falling rain, splashing water, hose directed water; undamaged by the formation of ice on the enclosure; resists corrosion.

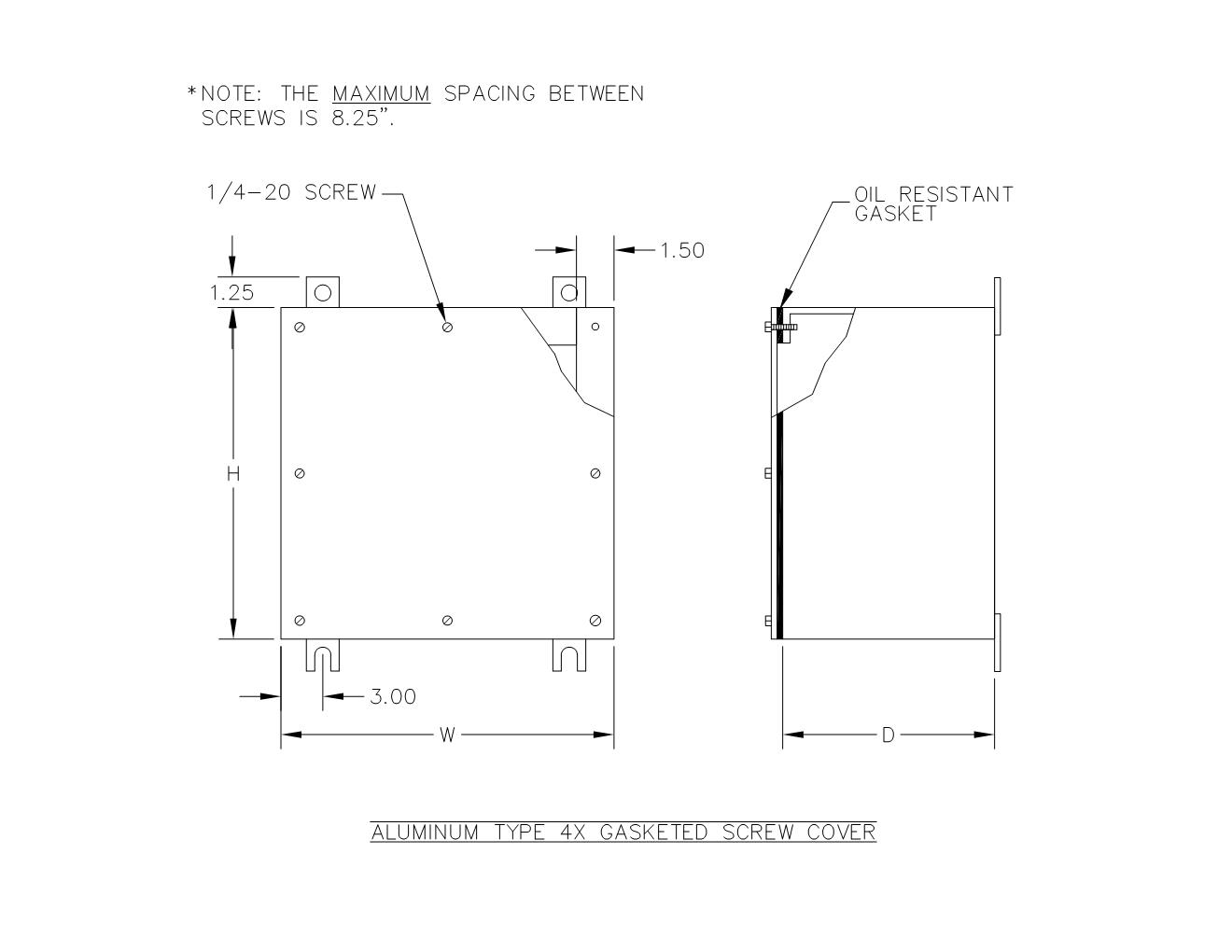

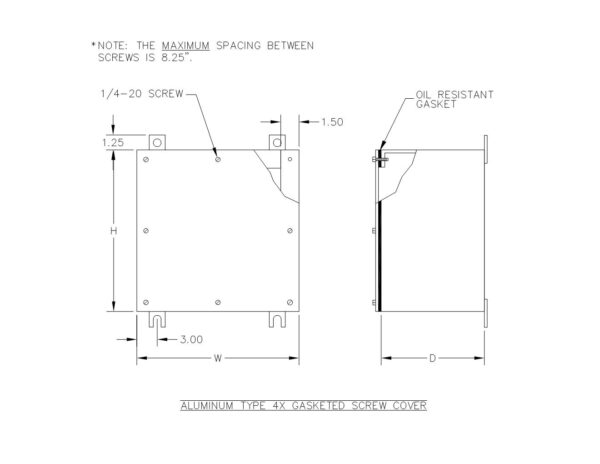

DOWNLOAD SPEC SHEET 14″ WIDE AND SMALLER

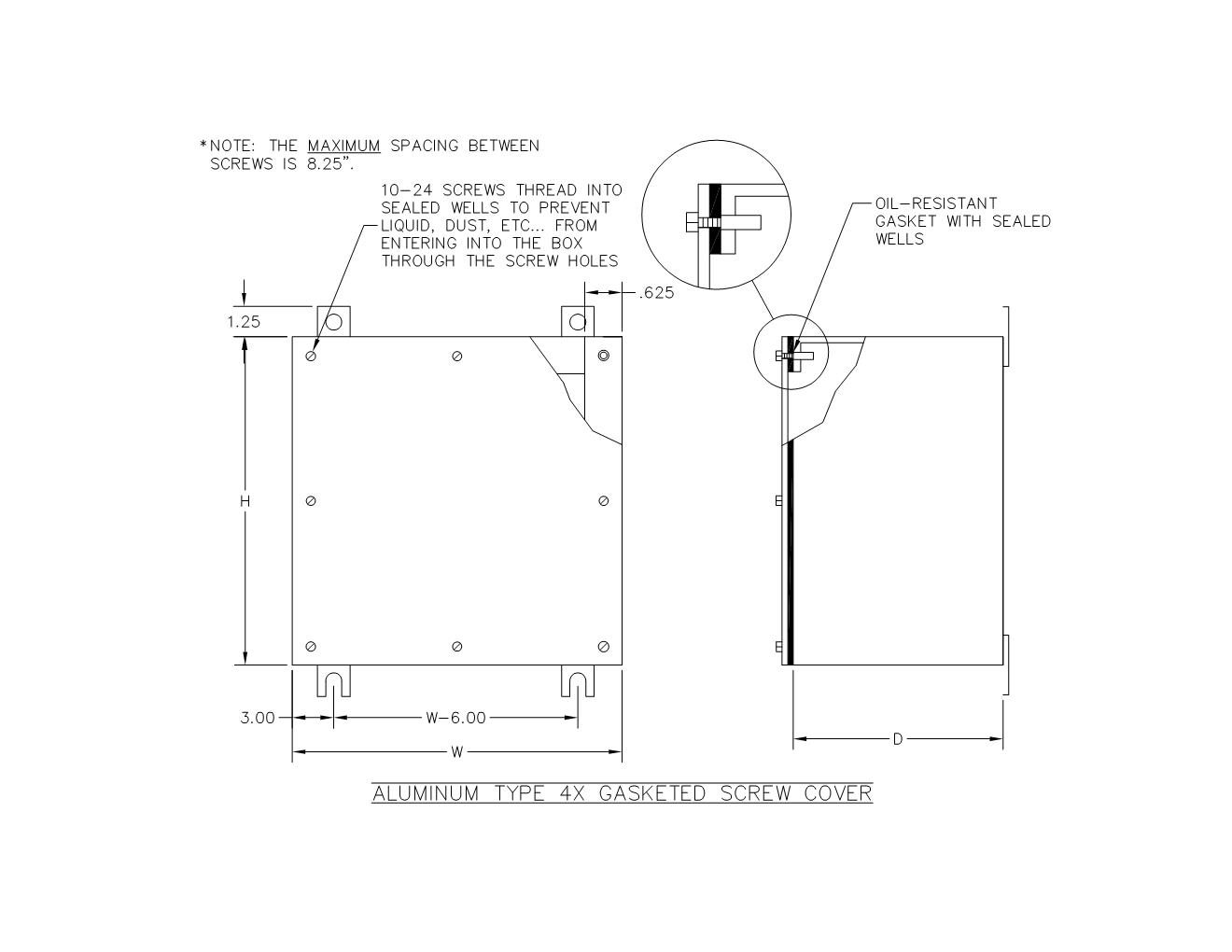

DOWNLOAD SPEC SHEET 15″ WIDE AND LARGER

SKU: ASGN4X Categories: ,

For large quantities or custom sizes call factory
Enclosure Size HxWxDCatalog NumberWeightUPC_12Digit
4x4x4A444SGN4X1 lbs
6x6x4A664SGN4X2 lbs806101031161
8x6x4A864SGN4X2 lbs806101031178
8x8x4A884SGN4X2 lbs806101031185
10x8x4A1084SGN4X3 lbs806101031208
10x10x4A10104SGN4X3 lbs806101031192
12x12x4A12124SGN4X4 lbs806101031215
6x6x6A666SGN4X2 lbs
8x8x6A886SGN4X3 lbs806101031222
10x8x6A1086SGN4X3 lbs806101031239
12x10x6A12106SGN4X4 lbs806101031246
12x12x6A12126SGN4X5 lbs806101031253
18x12x6A18126SGN4X7 lbs806101031260
18x18x6A18186SGN4X10 lbs
24x18x6A24186SGN4X12 lbs806101031277
24x24x6A24246SGN4X14 lbs806101031284
12x12x8A12128SGN4X6 lbs806101031291
18x18x8A18188SGN4X10 lbs806101031307
24x24x8A24248SGN4X16 lbs806101031314
24x24x10A242410SGN4X18 lbs
