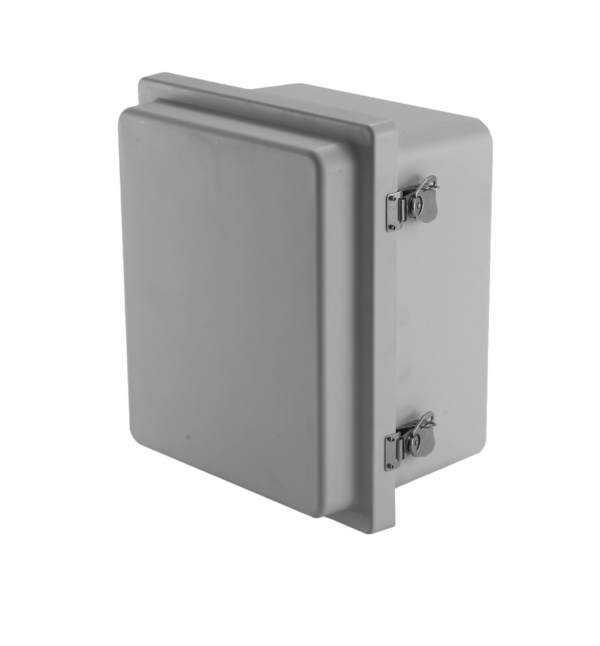

TYPE 4X NON-METALLIC HINGED ENCLOSURE W/TWIST LATCH
TYPE 4X NON-METALLIC HINGED ENCLOSURE W/TWIST LATCH - Image 2
TYPE 4X NON-METALLIC HINGED ENCLOSURE W/TWIST LATCH - Image 3
,

TYPE 4X NON-METALLIC HINGED ENCLOSURE W/TWIST LATCH

Construction:
  • STEINLESS STEEL TWIST LATCHES FEATURE PADLOCKING HASP
  • STRONG MOLDED FIBERGLASS REINFORCED POLYESTER CONSTRUCTION WITH MATCHING RAISED COVER FOR ADDITIONAL DEPTH
  • UV STABILIZED MATERIAL FOR OUTDOOR USE
  • FIBERGLASS MATERIAL IS EASILY PUNCHED, DRILLED OR SAWED
  • 10-32 THREADED INSERTS ARE INSTALLED FOR OPTIONAL BACK PANEL OR TERMINAL KITS
  • STAINLESS STEEL WALL MOUNTING HARDWARE WITH 10-32 STAINLESS STEEL SCREWS INCLUDED
  • GASKET MATERIAL MADE OF CLOSED-CELL NEOPRENE CORD
  • CONTINUOUS STAINLESS STEEL HINGE
Finish:
  • Fiberglass

Either indoor or outdoor use to provide a degree of protection against falling rain, splashing water, hose directed water; undamaged by the formation of ice on the enclosure; resists corrosion.

DOWNLOAD SPEC SHEET 6X6X4 – 30X24X10
DOWNLOAD SPEC SHEET 36X30X12 – 60X36X16

SKU: NQR Categories: ,

For large quantities or custom sizes call factory

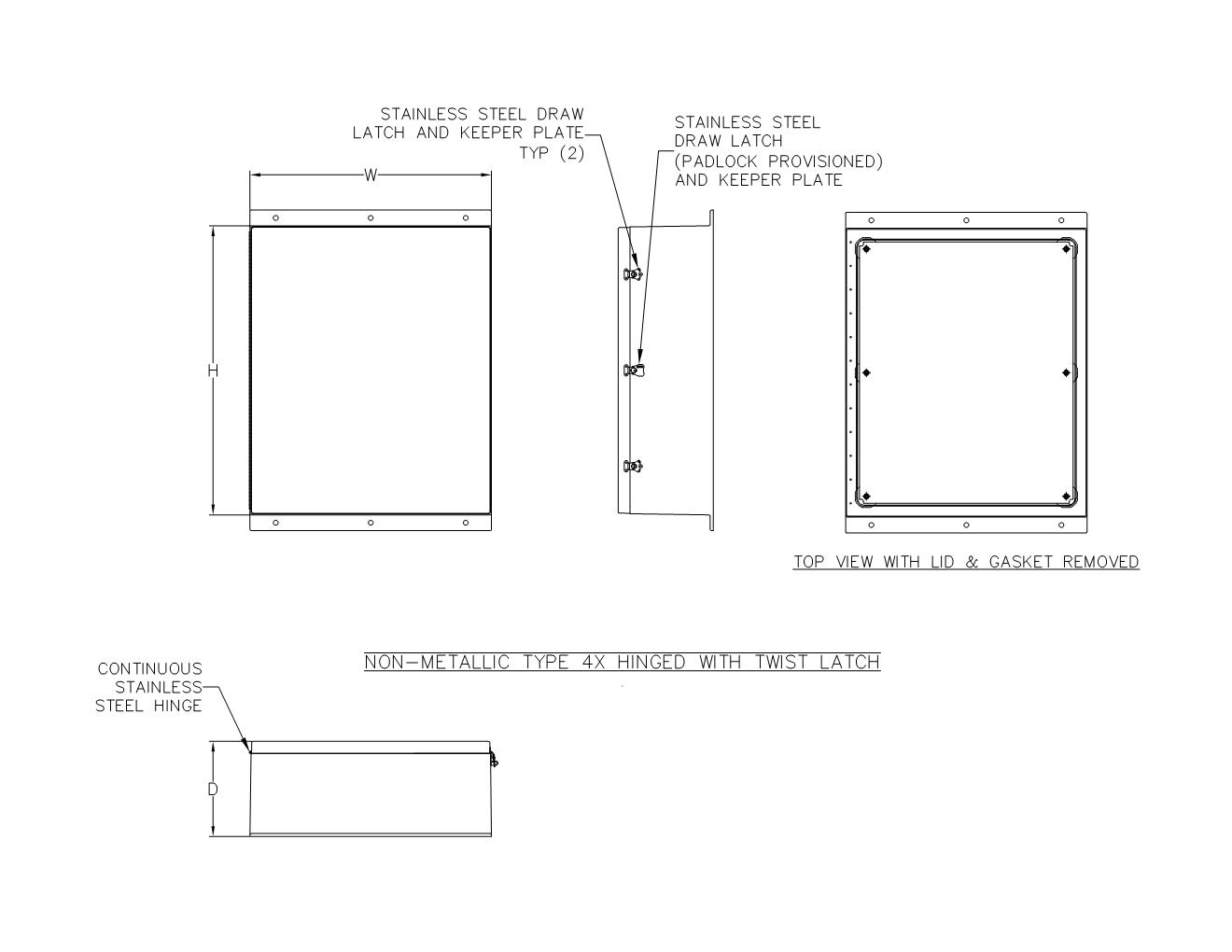

Enclosure Size HxWxDCatalog NumberWeightUPC_12Digit
6x6x4NQR6646 lbs806101027881
8x6x4NQR8646 lbs806101027898
10x8x6NQR10867 lbs806101027683
12x10x6NQR121069 lbs806101027690
14x12x6NQR1412612 lbs806101027706
16x14x8NQR1614814 lbs806101027713
18x16x8NQR1816818 lbs806101027720
20x16x8NQR2016819 lbs806101027737
24x20x8NQR2420825 lbs806101027751
24x24x8NQR2424835 lbs806101027775
30x24x8NQR3024850 lbs806101027799
24x20x10NQR24201030 lbs806101027744
24x24x10NQR24241040 lbs806101027768
30x24x10NQR30241055 lbs806101027782
36x30x12NQR36301259 lbs806101027805
36x36x12NQR36361272 lbs806101027829
48x36x12NQR48361283 lbs806101027843
60x36x12NQR603612101 lbs806101027867
36x30x16NQR36301664 lbs806101027812
36x36x16NQR36361677 lbs806101027836
48x36x16NQR48361691 lbs806101027850
60x36x16NQR603616122 lbs806101027874
