Type 4X, Products

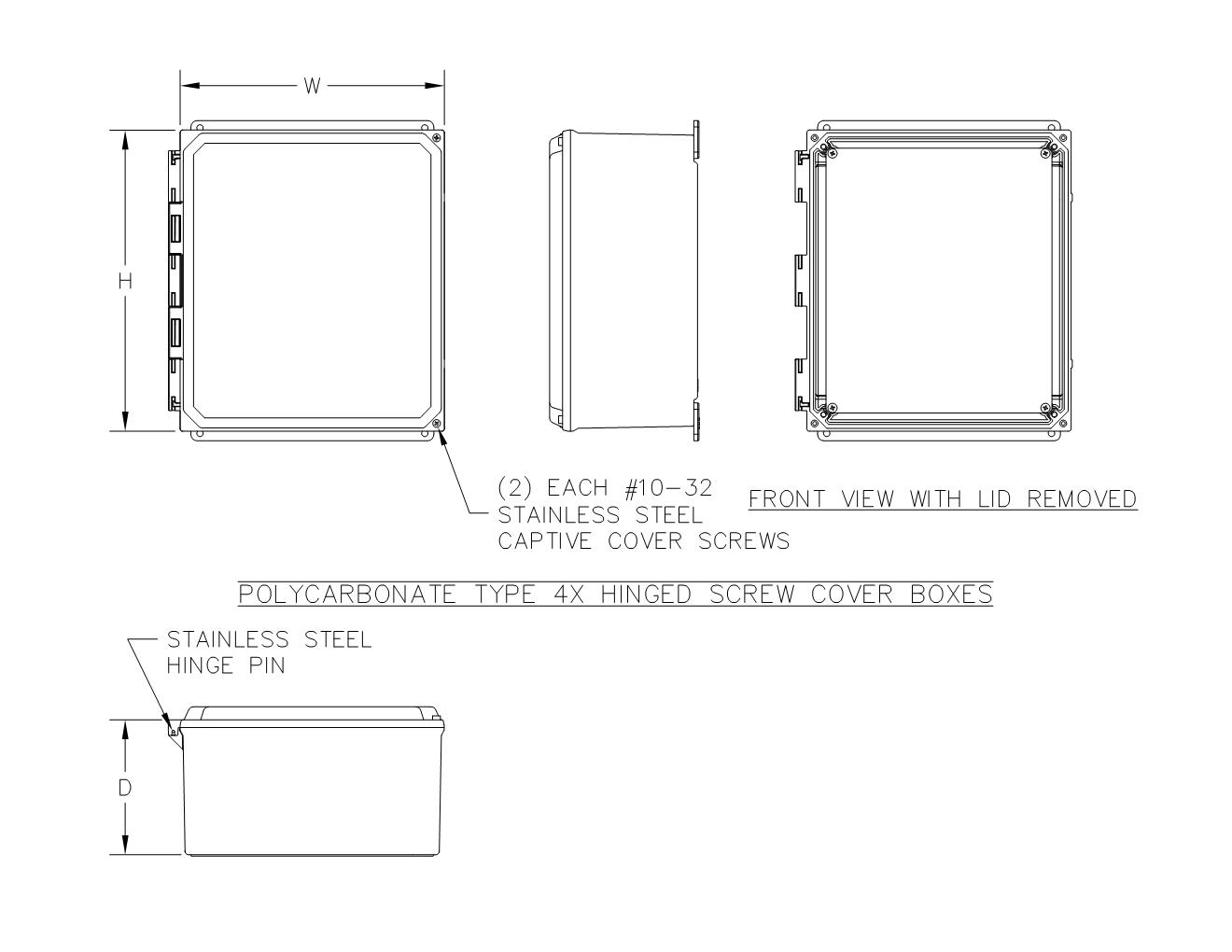

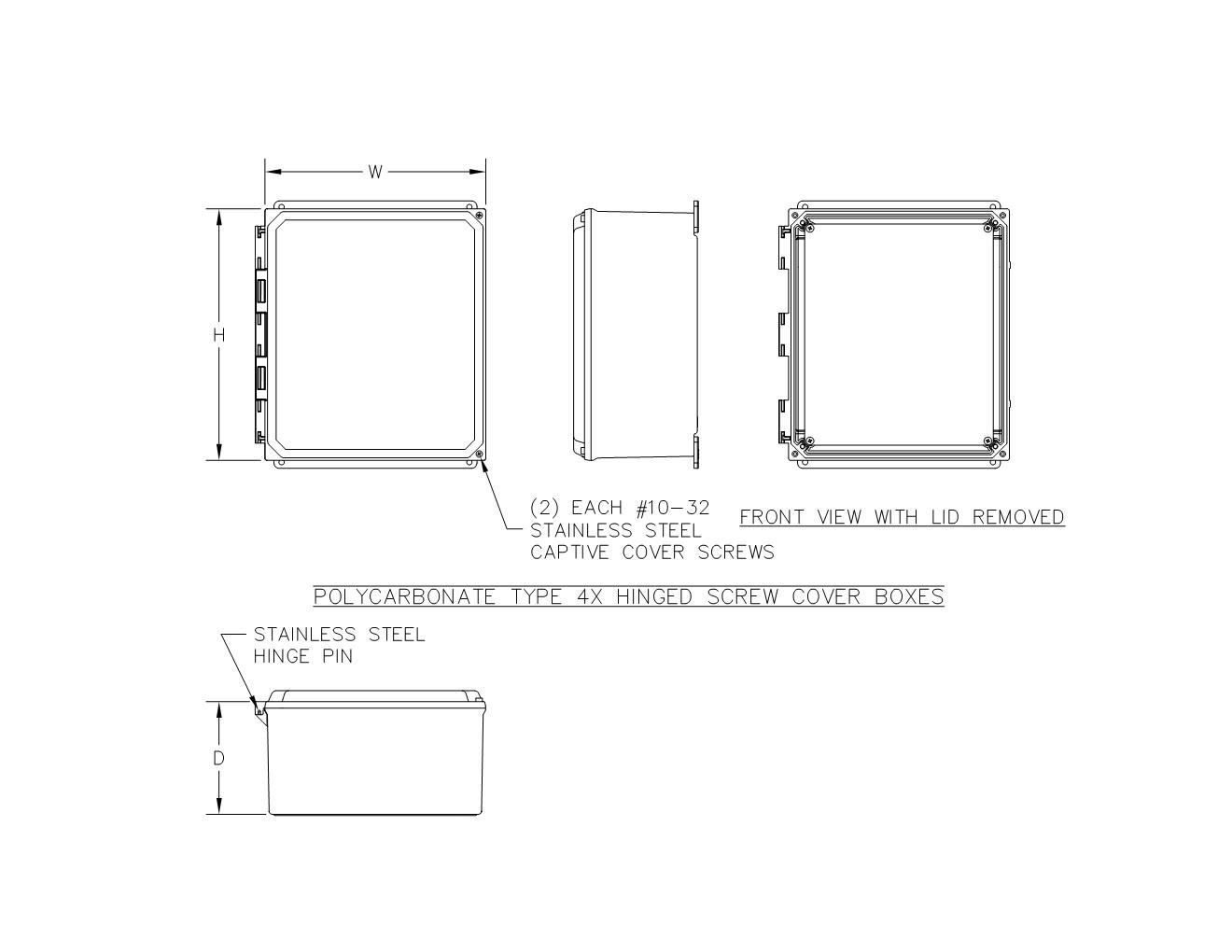

TYPE 4X POLYCARBONATE HINGED SCREW COVER ENCLOSURE
Construction:- OPAQUE COVER, BASE, FEET AND FLANGES - LIGHT GRAY COLOR (RAL 7035)
- INJECTION MOLDED POLYCARBONATE THERMOPLASTIC OPAQUE COVER, ENCLOSURE BASE, FEET AND FLANGES
- 10-32 THREADED INSERTS ARE INSTALLED FOR OPTIONAL BACK PANEL
- CAPTIVE STAINLESS STEEL COVER SCREWS
- UV STABILIZED MATERIAL FOR OUTDOOR USE
- GASKET MATERIAL MADE OF CLOSED-CELL NEOPRENE CORD
- Polycarbonate
Either indoor or outdoor use to provide a degree of protection against falling rain, splashing water, hose directed water; undamaged by the formation of ice on the enclosure; resists corrosion.
For large quantities or custom sizes call factory
| Enclosure Size HxWxD | Catalog Number | Weight | UPC_12Digit |
|---|---|---|---|
| 6x6x4 | PJHSC664 | 2 lbs | 806101033004 |
| 8x6x4 | PJHSC864 | 3 lbs | 806101033011 |
| 10x8x4 | PJHSC1084 | 4 lbs | 806101032977 |
| 12x10x6 | PJHSC12106 | 5 lbs | 806101032984 |
| 14x12x6 | PJHSC14126 | 7 lbs | 806101032991 |
