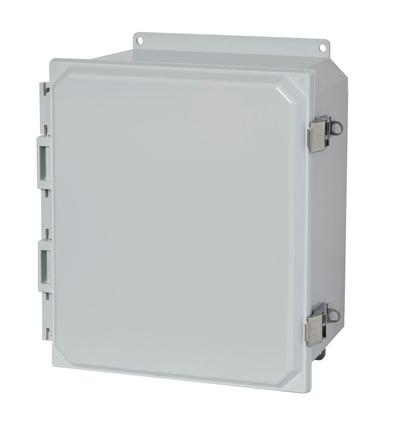

TYPE 4X POLYCARBONATE HINGED SCREW COVER ENCLOSURE W/ QUICK RELEASE LATCH
TYPE 4X POLYCARBONATE HINGED SCREW COVER ENCLOSURE W/ QUICK RELEASE LATCH - Image 2
,

TYPE 4X POLYCARBONATE HINGED SCREW COVER ENCLOSURE W/ QUICK RELEASE LATCH

Construction:
  • 10-32 THREADED INSERTS ARE INSTALLED FOR OPTIONAL BACK PANEL
  • NONMETALLIC SNAP LATCHES FEATURE PADLOCKING HASP
  • OPAQUE COVER, BASE, FEET AND FLANGES - LIGHT GRAY COLOR (RAL 7035)
  • INJECTION MOLDED POLYCARBONATE THERMOPLASTIC OPAQUE COVER, ENCLOSURE BASE, FEET AND FLANGES
  • UV STABILIZED MATERIAL FOR OUTDOOR USE
  • GASKET MATERIAL MADE OF CLOSED-CELL NEOPRENE CORD
Finish:
  • Polycarbonate

Either indoor or outdoor use to provide a degree of protection against falling rain, splashing water, hose directed water; undamaged by the formation of ice on the enclosure; resists corrosion.

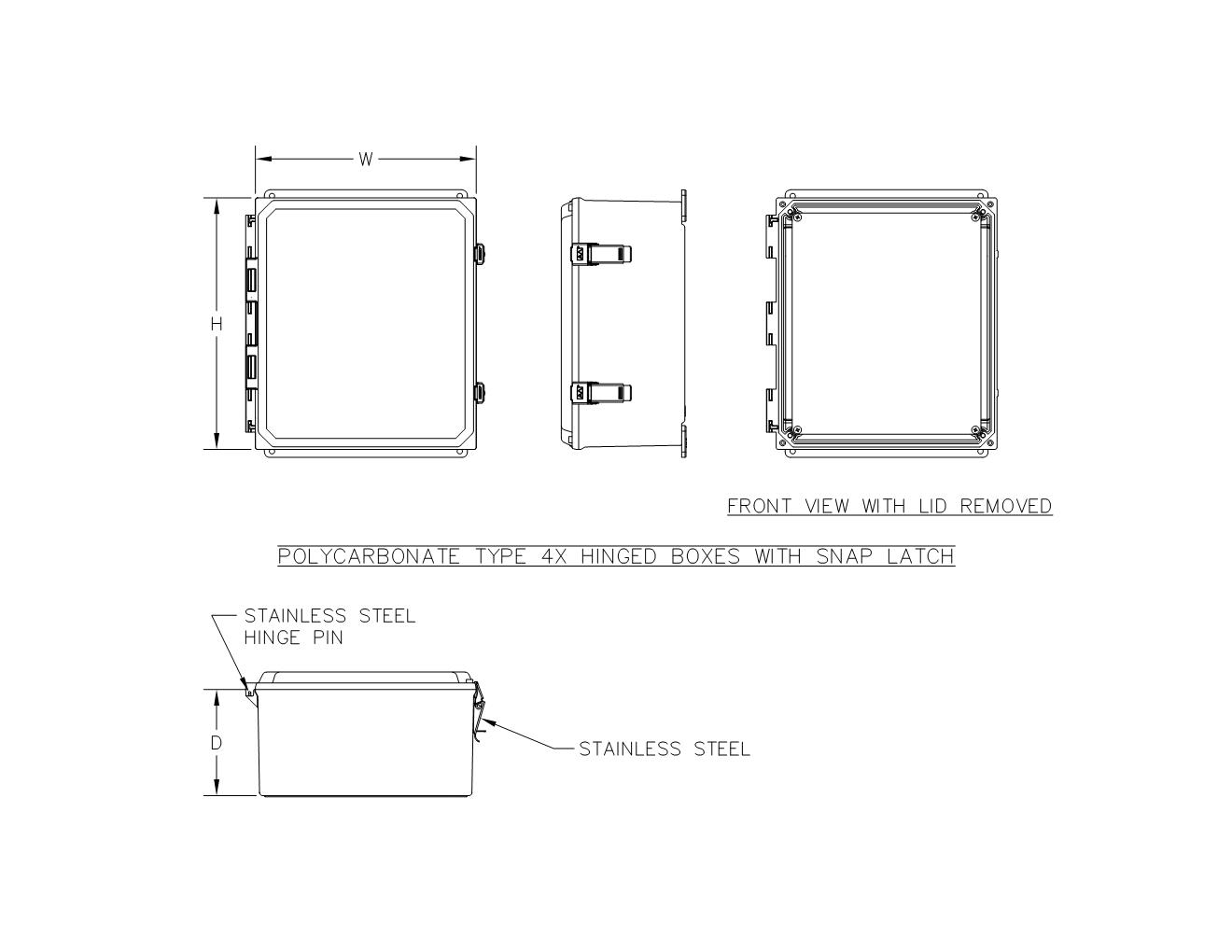

DOWNLOAD SPEC SHEET

Select your size
SKU: PQR Categories: ,

For large quantities or custom sizes call factory
Enclosure Size HxWxDCatalog NumberWeightUPC_12Digit
6x6x4PQR6642 lbs806101033103
8x6x4PQR8643 lbs806101033110
10x8x4PQR10844 lbs806101033073
12x10x6PQR121065 lbs806101033080
14x12x6PQR141267 lbs806101033097
