ELECTRICAL ENCLOSURES

Type 1 Telephone Cabinets



Surface Mount Cut Sheetpdf logo
Flush Mount Cut Sheetpdf logo
Corresponding Catalog Pagepdf logo

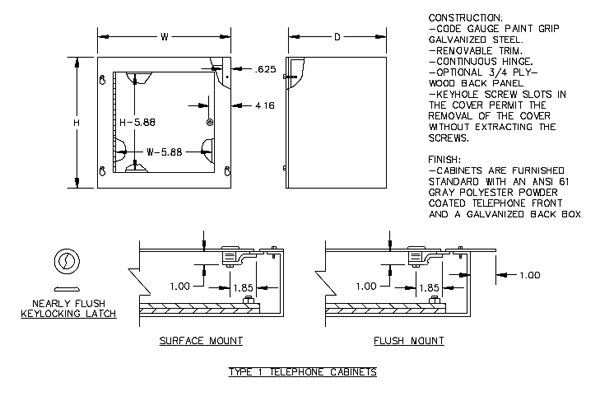

telephone cabinet diagram

for large quantities call factory --- for custom sizes call factory
      Catalog Number       3/4" Plywood PanelCatalog Number
Height" Width" Depth" Weight" List Price UPC_12Digit Weight List Price UPC_12Digit
12 12 4 12124TC 11   806101007517 1212PW 1   806101007999
12 12 4 12124TCF 11   806101007753 1212PW 1   806101007999
16 12 4 16124TC 13   806101007524 1612PW 1   806101008002
16 12 4 16124TCF 13   806101007760 1612PW 1   806101008002
18 12 4 18124TC 15   806101007531 1812PW 1   806101008019
18 12 4 18124TCF 15   806101007777 1812PW 1   806101008019
18 18 4 18184TC 23   806101007555 1818PW 2   806101008033
18 18 4 18184TCF 23   806101007791 1818PW 2   806101008033
24 12 4 24124TC 22   806101007548 2412PW 2   806101008026
24 12 4 24124TCF 22   806101007784 2424PW 4   806101008057
24 18 4 24184TC 28   806101007562 2418PW 3   806101008040
24 18 4 24184TCF 28   806101007807 2418PW 3   806101008040
24 24 4 24244TC 35   806101007579 2424PW 4   806101008057
24 24 4 24244TCF 35   806101007814 2424PW 4   806101008057
30 24 4 30244TC 40   806101007586 3024PW 5   806101008064
30 24 4 30244TCF 40   806101007821 3024PW 5   806101008064
30 30 4 30304TC 60   806101007593 3030PW 6   806101008088
30 30 4 30304TCF 60   806101007838 3030PW 6   806101008088
36 24 4 36244TC 57   806101007609 3624PW 6   806101008071
36 24 4 36244TCF 57   806101007845 3624PW 6   806101008071
36 30 4 36304TC 71   806101007616 3630PW 7   806101008095
36 30 4 36304TCF 71   806101007852 3630PW 7   806101008095
48 30 4 48304TC 101   806101007623 4830PW 8   806101008118
48 30 4 48304TCF 101   806101007869 4830PW 8   806101008118
16 12 6 16126TC 14   806101007630 1612PW 1   806101008002
16 12 6 16126TCF 14   806101007876 1612PW 1   806101008002
18 12 6 18126TC 18   806101007647 1812PW 1   806101008019
18 12 6 18126TCF 18   806101007883 1812PW 1   806101008019
18 18 6 18186TC 25   806101007661 1818PW 2   806101008033
18 18 6 18186TCF 25   806101007906 1818PW 2   806101008033
24 12 6 24126TC 23   806101007654 2412PW 2   806101008026
24 12 6 24126TCF 23   806101007890 2412PW 2   806101008026
24 18 6 24186TC 30   806101007678 2418PW 3   806101008040
24 18 6 24186TCF 30   806101007913 2418PW 3   806101008040
24 24 6 24246TC 37   806101007685 2424PW 4   806101008057
24 24 6 24246TCF 37   806101007920 2424PW 4   806101008057
30 24 6 30246TC 45   806101007692 3024PW 5   806101008064
30 24 6 30246TCF 45   806101007937 3024PW 5   806101008064
30 30 6 30306TC 62   806101007715 3030PW 6   806101008088
30 30 6 30306TCF 62   806101007951 3030PW 6   806101008088
36 24 6 36246TC 59   806101007708 3624PW 6   806101008071
36 24 6 36246TCF 59   806101007944 3624PW 6   806101008071
36 30 6 36306TC 78   806101007722 3630PW 7   806101008095
36 30 6 36306TCF 78   806101007968 3630PW 7   806101008095
48 30 6 48306TC 124   806101007739 4830PW 8   806101008118
48 30 6 48306TCF 124   806101007975 4830PW 8   806101008118
48 36 6 48366TC 150   806101007746 4836PW 12   806101008125
48 36 6 48366TCF 150   806101007982 4836PW 12   806101008125
