Type 12 Freestanding - Single Door - Dual Access Painted Enclosures

1-888-231-7580 TOLL FREE PHONE < ----- > 1-888-329-3269 TOLL FREE FAX

ELECTRICAL ENCLOSURES

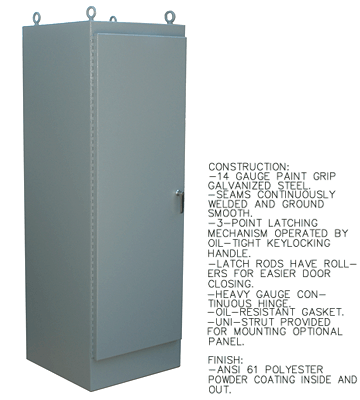

Type 12 Freestanding Single Door Dual Access Painted Enclosures - Less Panel

for large quantities call factory --- for custom sizes call factory

Height"	Width"	Depth"	Catalog Number	Weight	UPC_12Digit	Panel Catalog Number	Weight	UPC_12Digit
72	24	24	FDA722424N12	318	806101018339	F7224P	65	806101016168
72	30	24	FDA723024N12	362	806101018346	F7230P	74	806101016175
72	36	24	FDA723624N12	398	806101018353	F7236P	98	806101016182
90	36	24	FDA903624N12	456	806101018360	F9036P	108	806101018322
72	24	30	FDA722430N12	385	806101018377	F7224P	65	806101016168
72	24	36	FDA722436N12	401	806101018384	F7224P	65	806101016168
72	36	36	FDA723636N12	478	806101018391	F7236P	98	806101016182
90	36	36	FDA903636N12	563	806101018407	F9036P	108	806101018322
