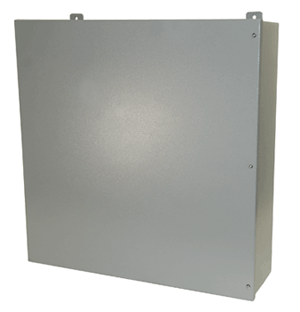

Type 12 Large JIC Continuous Hinge - Painted

Type 12 Large JIC Continuous Hinge Painted Enclosures - Less Panel

for large quantities call factory --- for custom sizes call factory

Height"	Width"	Depth"	Catalog Number	Weight	UPC_12Digit	Panel Catalog Number	Weight	UPC_12Digit
20	16	7	JHSC20167	31	806101016724	2016P	9	806101022862
20	20	7	JHSC20207	37	806101016731	2020P	10	806101022879
24	20	7	JHSC24207	43	806101016748	2420P	13	806101022916
24	24	7	JHSC24247	48	806101016755	2424P	15	806101022923
30	20	7	JHSC30207	50	806101016762	3020P	16	806101021452
30	24	7	JHSC30247	58	806101016779	3024P	19	806101022954
36	24	7	JHSC36247	69	806101016786	3624P	24	806101022985
20	16	9	JHSC20169	36	806101016793	2016P	9	806101022862
20	20	9	JHSC20209	41	806101016809	2020P	10	806101022879
24	20	9	JHSC24209	47	806101016816	2420P	13	806101022916
24	24	9	JHSC24249	54	806101016823	2424P	15	806101022923
30	20	9	JHSC30209	55	806101016830	3020P	16	806101021452
30	24	9	JHSC30249	62	806101016847	3024P	19	806101022954
36	24	9	JHSC36249	76	806101016854	3624P	24	806101022985
36	30	9	JHSC36309	90	806101016861	3630P	30	806101022992
42	30	9	JHSC42309	103	806101016878	4230P	35	806101023036
42	36	9	JHSC42369	115	806101016885	4236P	43	806101023043
24	24	11	JHSC242411	58	806101016892	2424P	15	806101022923
36	24	11	JHSC362411	77	806101016908	3624P	24	806101022985
48	36	11	JHSC483611	139	806101016915	4836P	49	806101023081
30	24	13	JHSC302413	70	806101016922	3024P	19	806101022954
36	30	13	JHSC363013	100	806101016939	3630P	30	806101022992
