Type 3 Stainless Steel Screw Cover Gasketed Boxes

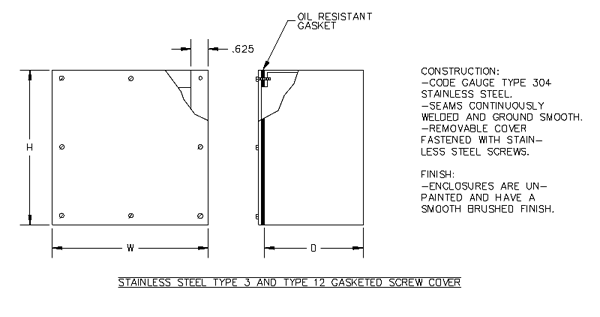

Type 3 Stainless Steel Screw Cover Gasketed Boxes (also satisfies UL Type 12)
Also Available in Type 316 Stainless Steel - Call Factory

Stainless Steel Gasketed Box Cut Sheet

Corresponding Catalog Page

for large quantities call factory --- for custom sizes call factory

Height"	Width"	Depth"	Catalog Number	Description	Weight	UPC_12Digit
4	4	4	S444SG	S/S GASKETED SCREW COVER TYPE 3 & 12	2	806101013761
6	6	4	S664SG	S/S GASKETED SCREW COVER TYPE 3 & 12	3	806101013778
8	6	4	S864SG	S/S GASKETED SCREW COVER TYPE 3 & 12	4	806101013785
8	8	4	S884SG	S/S GASKETED SCREW COVER TYPE 3 & 12	5	806101013792
10	10	4	S10104SG	S/S GASKETED SCREW COVER TYPE 3 & 12	7	806101013815
10	8	4	S1084SG	S/S GASKETED SCREW COVER TYPE 3 & 12	6	806101013808
12	10	4	S12104SG	S/S GASKETED SCREW COVER TYPE 3 & 12	8	806101013822
12	12	4	S12124SG	S/S GASKETED SCREW COVER TYPE 3 & 12	10	806101013839
6	6	6	S666SG	S/S GASKETED SCREW COVER TYPE 3 & 12	4	806101013846
8	8	6	S886SG	S/S GASKETED SCREW COVER TYPE 3 & 12	6	806101013853
10	10	6	S10106SG	S/S GASKETED SCREW COVER TYPE 3 & 12	8	806101013860
12	12	6	S12126SG	S/S GASKETED SCREW COVER TYPE 3 & 12	11	806101013877
15	12	6	S15126SG	S/S GASKETED SCREW COVER TYPE 3 & 12	13	806101013884
15	15	6	S15156SG	S/S GASKETED SCREW COVER TYPE 3 & 12	15	806101013891
18	18	6	S18186SG	S/S GASKETED SCREW COVER TYPE 3 & 12	20	806101013907
24	18	6	S24186SG	S/S GASKETED SCREW COVER TYPE 3 & 12	26	806101013914
24	24	6	S24246SG	S/S GASKETED SCREW COVER TYPE 3 & 12	39	806101013921
8	8	8	S888SG	S/S GASKETED SCREW COVER TYPE 3 & 12	7	806101013938
12	12	8	S12128SG	S/S GASKETED SCREW COVER TYPE 3 & 12	12	806101013945
18	18	8	S18188SG	S/S GASKETED SCREW COVER TYPE 3 & 12	23	806101013952
24	24	8	S24248SG	S/S GASKETED SCREW COVER TYPE 3 & 12	42	806101013969
30	24	8	S30248SG	S/S GASKETED SCREW COVER TYPE 3 & 12	46	806101013976
30	30	8	S30308SG	S/S GASKETED SCREW COVER TYPE 3 & 12	86	806101013983
36	24	8	S36248SG	S/S GASKETED SCREW COVER TYPE 3 & 12	61	806101013990
36	30	8	S36308SG	S/S GASKETED SCREW COVER TYPE 3 & 12	103	806101014003
18	18	10	S181810SG	S/S GASKETED SCREW COVER TYPE 3 & 12	24	806101014010
24	24	10	S242410SG	S/S GASKETED SCREW COVER TYPE 3 & 12	48	806101014027
30	24	10	S302410SG	S/S GASKETED SCREW COVER TYPE 3 & 12	51	806101014034
30	30	10	S303010SG	S/S GASKETED SCREW COVER TYPE 3 & 12	95	806101014041
36	24	10	S362410SG	S/S GASKETED SCREW COVER TYPE 3 & 12	67	806101014058
18	18	12	S181812SG	S/S GASKETED SCREW COVER TYPE 3 & 12	27	806101014065
24	24	12	S242412SG	S/S GASKETED SCREW COVER TYPE 3 & 12	51	806101014072
30	30	12	S303012SG	S/S GASKETED SCREW COVER TYPE 3 & 12	103	806101014089
36	36	12	S363612SG	S/S GASKETED SCREW COVER TYPE 3 & 12	136	806101014096
