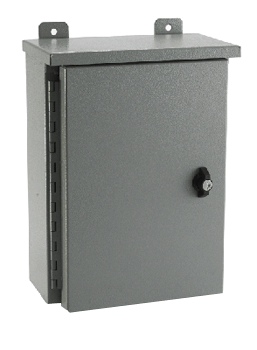

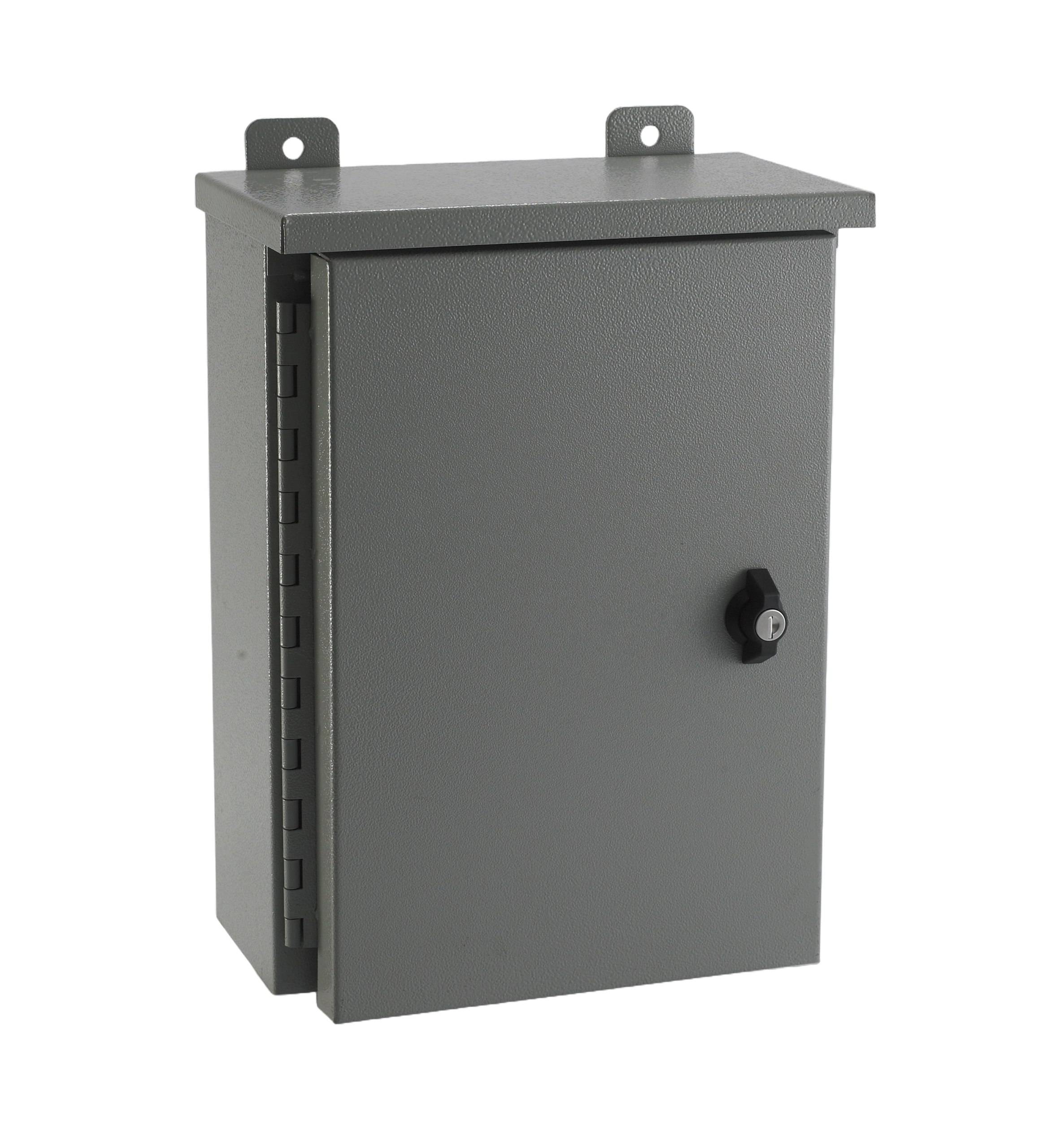

TYPE 3R PAINTED HINGED COVER ENCLOSURE WITH KEYLOCKING WING KNOB

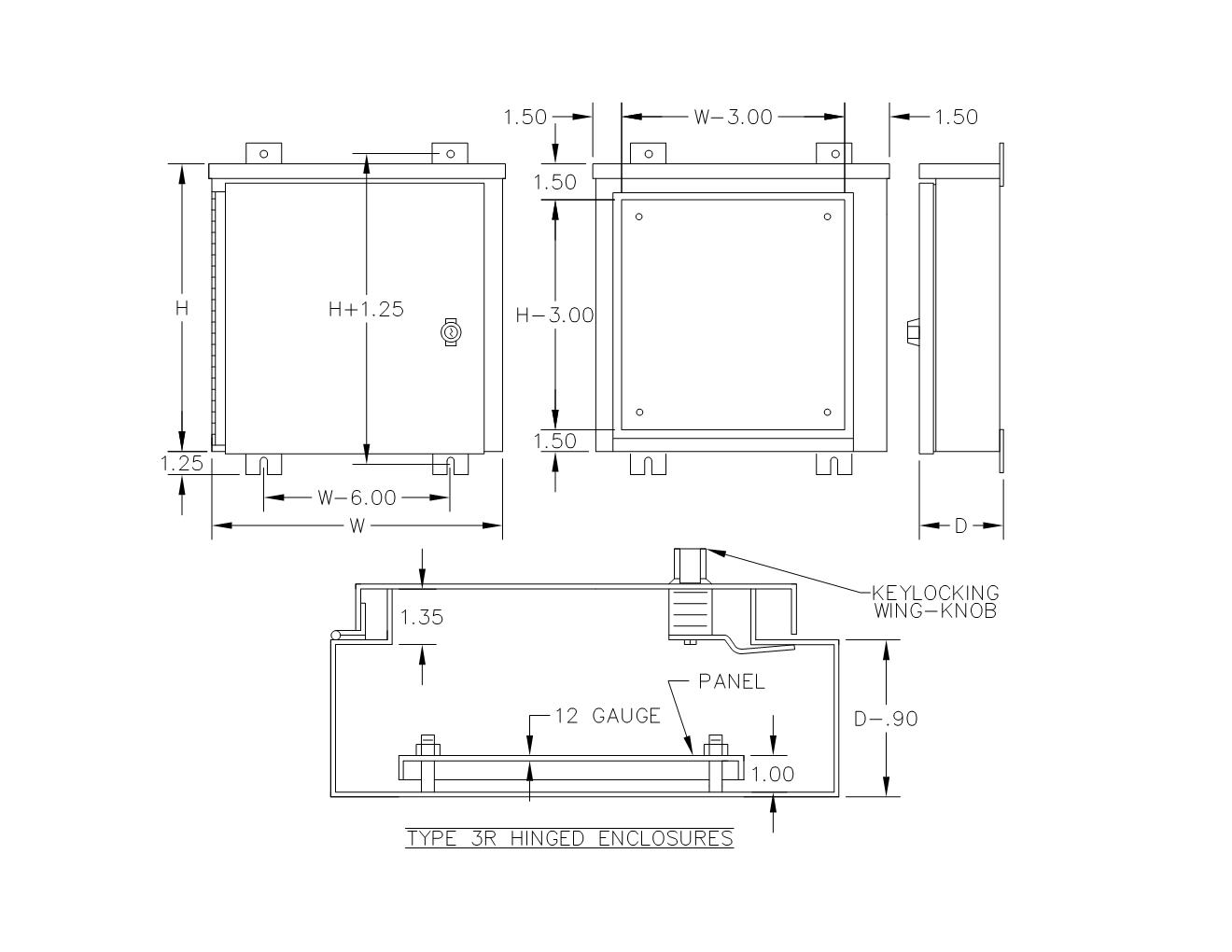

TYPE 3R PAINTED HINGED COVER ENCLOSURE WITH KEYLOCKING WING KNOB - Image 2
,

TYPE 3R PAINTED HINGED COVER ENCLOSURE WITH KEYLOCKING WING KNOB

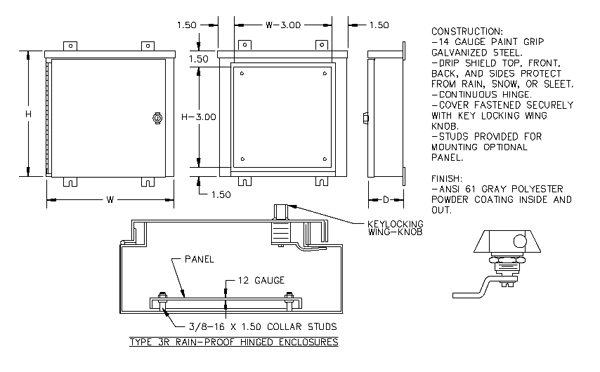

Construction:
  • COVER FASTENED SECURELY WITH KEYLOCKING WING KNOB
  • DRIP SHIELD TOP, FRONT, SIDES AND BACK PROTECT FROM FALLING RAIN, SNOW, OR SLEET
  • CODE GAUGE PAINT GRIP GALVANIZED STEEL
  • STUDS PROVIDED FOR MOUNTING OPTIONAL PANEL
  • CONTINUOUS HINGE
Finish:
  • ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL

Outdoor use to provide a degree of protection against falling rain; undamaged by the formation of ice on the enclosure.

DOWNLOAD SPEC SHEET

SKU: RE Categories: ,

For large quantities or custom sizes call factory
Enclosure Size HxWxDCatalog NumberWeightUPC_12Digit
12x12x612126RE14 lbs
16x12x616126RE20 lbs806101015406
18x12x618126RE35 lbs
16x16x616166RE25 lbs806101015413
20x12x620126RE24 lbs
18x18x618186RE30 lbs806101030409
20x16x620166RE29 lbs806101015420
20x20x620206RE35 lbs
24x18x624186RE37 lbs806101015437
24x24x624246RE46 lbs806101015444
30x24x630246RE53 lbs
30x30x630306RE65 lbs
36x24x636246RE64 lbs
36x36x636366RE88 lbs806101015451
18x12x818128RE38 lbs
16x16x816168RE28 lbs
18x18x818188RE33 lbs
20x20x820208RE38 lbs806101015468
24x16x824168RE38 lbs
24x18x824188RE41 lbs
24x20x824208RE44 lbs806101015475
24x24x824248RE50 lbs806101015482
30x24x830248RE60 lbs806101015499
30x30x830308RE68 lbs
36x24x836248RE69 lbs806101015505
36x30x836308RE82 lbs806101015512
36x36x836368RE95 lbs806101015529
48x36x848368RE121 lbs806101029496
14x14x10141410RE29 lbs
16x16x10161610RE207 lbs
18x18x10181810RE36 lbs
20x20x10202010RE42 lbs
24x20x10242010RE48 lbs
24x24x10242410RE54 lbs806101015536
30x24x10302410RE65 lbs
24x36x10243610RE75 lbs
30x30x10303010RE77 lbs
36x24x10362410RE75 lbs806101015543
36x36x10363610RE101 lbs806101015550
48x36x10483610RE128 lbs
16x16x12161612RE34 lbs
18x18x12181812RE40 lbs
24x12x12241212RE39 lbs
24x24x12242412RE59 lbs806101034247
30x30x12303012RE82 lbs806101015567
36x24x12362412RE80 lbs806101015574
36x30x12363012RE94 lbs806101015581
36x36x12363612RE108 lbs806101015598
48x24x12482412RE102 lbs
42x30x12423012RE106 lbs806101015604
42x36x12423612RE122 lbs806101015611
48x36x12483612RE136 lbs806101015628
60x36x12603612RE166 lbs806101015635
24x24x16242416RE68 lbs
36x36x16363616RE121 lbs
48x36x16483616RE152 lbs
24x24x18242418RE72 lbs
36x36x18363618RE128 lbs806101029533
48x24x18482418RE121 lbs
48x36x18483618RE159 lbs
24x24x24242424RE85 lbs
30x30x24303024RE115 lbs
36x36x24363624RE148 lbs
