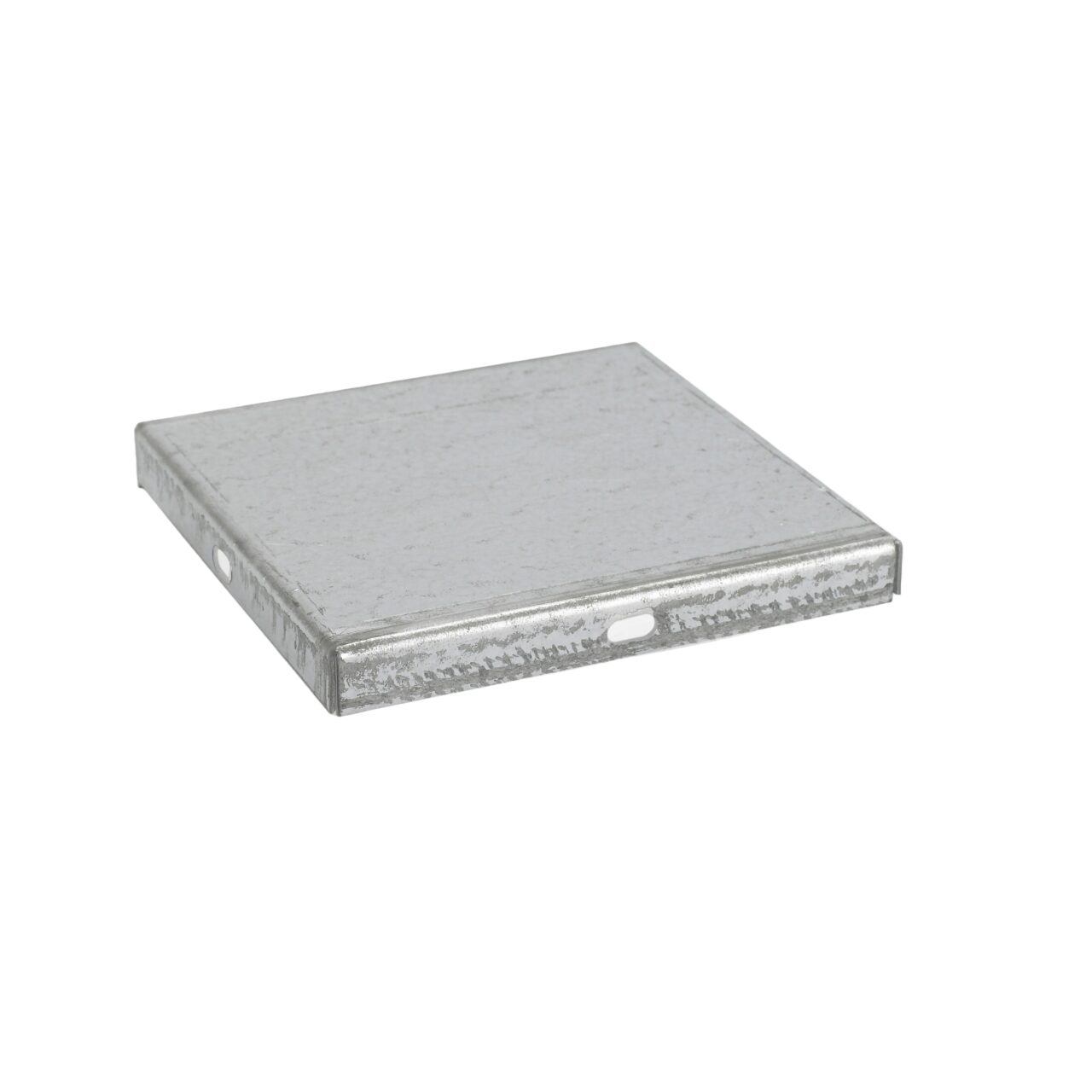

TYPE 1 GALVANIZED END CAP FOR WIREWAY
TYPE 1 GALVANIZED END CAP FOR WIREWAY - Image 2
,

TYPE 1 GALVANIZED END CAP FOR WIREWAY

Construction:
  • CODE GAUGE G-90 GALVANIZED STEEL
  • END CAP FOR TYPE 1 WIREWAY
Finish:
  • TYPE 1 WIREWAY FITTINGS ARE PROVIDED IN G-60 or G-90 GALVANIZED STEEL

Indoor use primarily to provide protection against contact with the enclosed equipment and against a limited amount of falling dirt.

DOWNLOAD SPEC SHEET

SKU: EC Categories: ,

For large quantities or custom sizes call factory

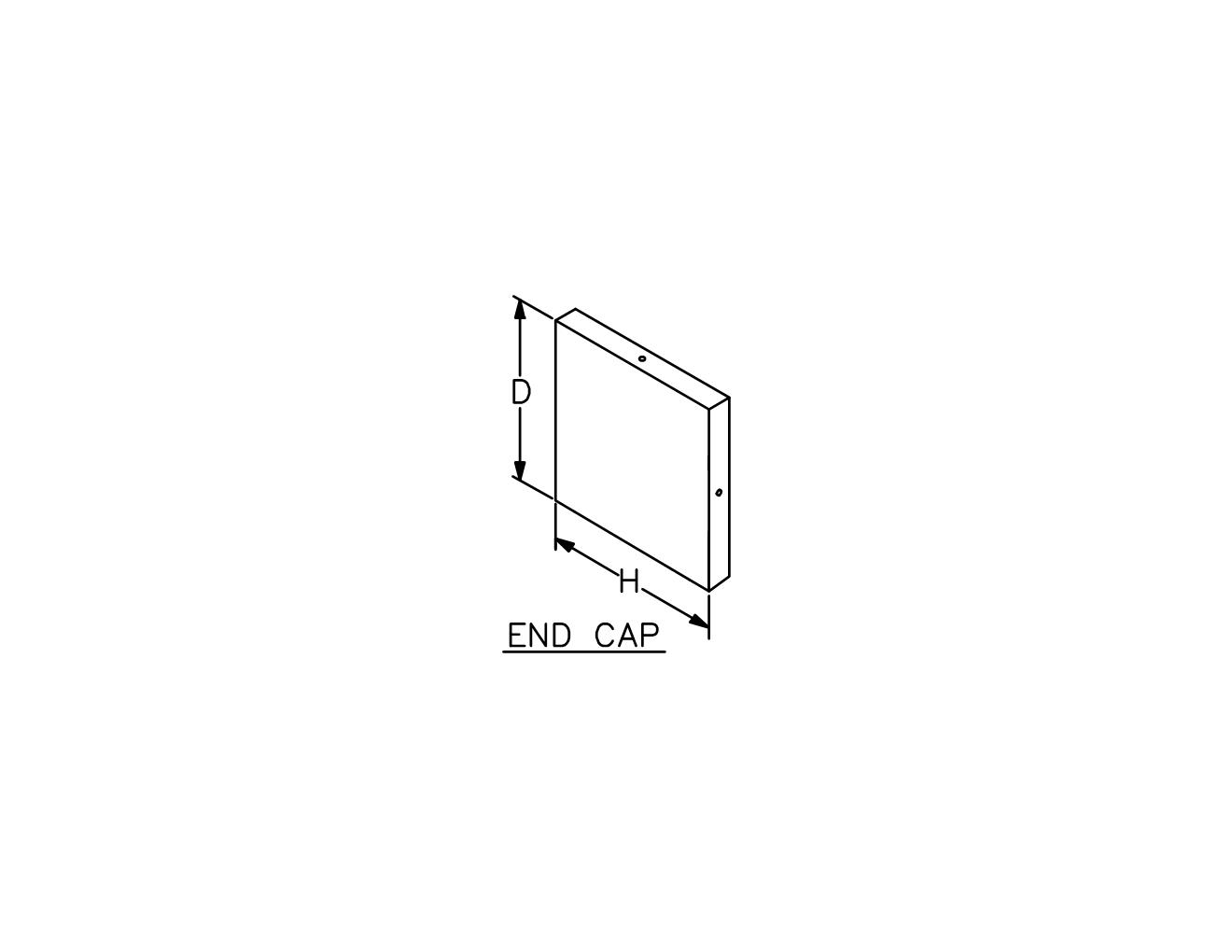

Wireway Size LxHxDCatalog NumberWeightUPC_12Digit
4x44-EC1 lbs806101008408
6x464-EC1 lbs
8x484-EC1.36 lbs
12x4124-EC2 lbs
6x66-EC1 lbs806101008590
8x686-EC1.82 lbs
10x6106-EC2 lbs
12x6126-EC2 lbs
16x6166-EC4 lbs
18x6186-EC12 lbs
24x6246-EC5 lbs
8x88-EC2 lbs806101008781
10x8108-EC3 lbs
12x8128-EC3 lbs
16x8168-EC5 lbs
18x8188-EC17 lbs
8x12812-EC2.72 lbs
10x1010-EC3 lbs806101008972
10x121012-EC3 lbs
12x1212-EC4 lbs806101009160
16x121612-EC6 lbs
18x121812-EC7 lbs
24x122412-EC8.26 lbs
14x1414-EC5 lbs
10x161016-EC4 lbs
16x1616-EC8 lbs806101029540
18x1818-EC8 lbs
24x182418-EC12 lbs
20x2020-EC11 lbs
18x241824-EC12 lbs
24x2424-EC48 lbs
