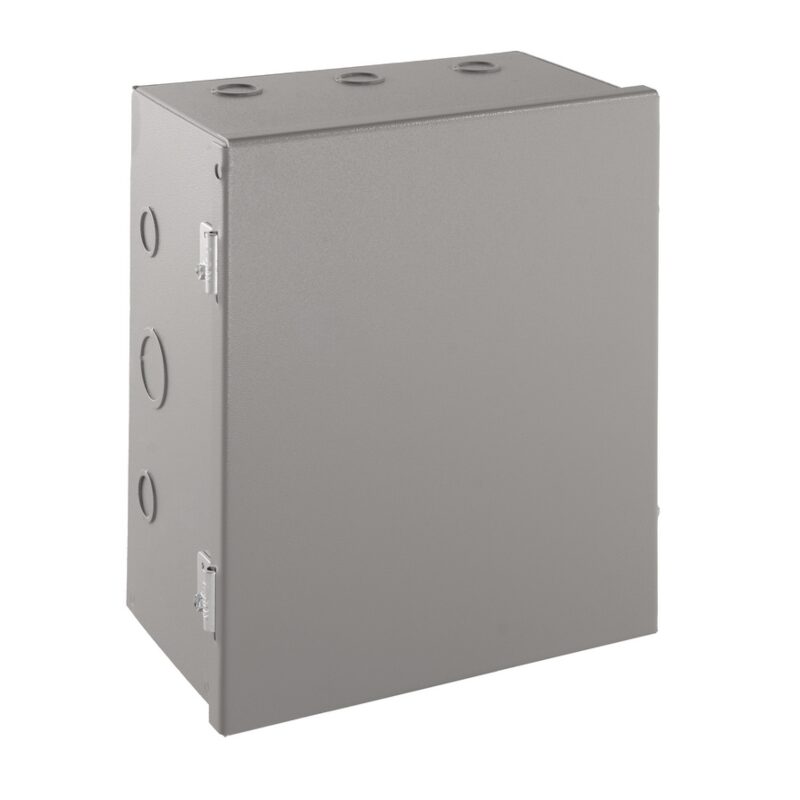

TYPE 1 GALVANIZED HINGED COVER BOX WITH KO’S

Construction:
  • HINGED COVERS HAVE A FORMED STEEL HINGE
  • VARIOUS SIZES OF EASILY REMOVABLE CONCENTRIC KNOCKOUTS ON ALL FOUR SIDES
  • BOLT-ON HINGES ON SMALLER ENCLOSURES AND BUTT HINGES ON LARGER ENCLOSURES
  • HINGED COVERS ARE FASTENED WITH PLATED STEEL SCREWS
  • CODE GAUGE G-90 GALVANIZED STEEL
Finish:
  • TYPE 1 HINGE COVER BOXES ARE PROVIDED IN G-60 or G-90 GALVANIZED STEEL

Indoor use primarily to provide protection against contact with the enclosed equipment and against a limited amount of falling dirt.

DOWNLOAD SPEC SHEET

SKU: HCKO Categories: ,

For large quantities or custom sizes call factory
Enclosure Size HxWxDCatalog NumberWeightUPC_12Digit
4x4x4444HCKO4 lbs806101002659
6x4x4644HCKO5 lbs806101002666
6x6x4664HCKO5 lbs806101002673
8x6x4864HCKO6 lbs806101002680
8x8x4884HCKO7 lbs806101002697
10x6x41064HCKO7 lbs806101002703
12x6x41264HCKO8 lbs806101002734
10x8x41084HCKO9 lbs806101002710
12x8x41284HCKO10 lbs806101002741
10x10x410104HCKO10 lbs806101002727
12x10x412104HCKO11 lbs806101002758
12x12x412124HCKO13 lbs806101002765
15x12x415124HCKO15 lbs806101002772
15x15x415154HCKO16 lbs806101002789
18x12x418124HCKO18 lbs806101002796
18x15x418154HCKO21 lbs806101002802
18x18x418184HCKO24 lbs806101002819
24x12x424124HCKO22 lbs806101002826
24x18x424184HCKO30 lbs806101002833
24x24x424244HCKO39 lbs806101002840
30x24x430244HCKO47 lbs806101002857
36x24x436244HCKO54 lbs806101002864
6x6x6666HCKO6 lbs806101002871
8x6x6866HCKO7 lbs806101002888
8x8x6886HCKO9 lbs806101002895
10x8x61086HCKO10 lbs806101002901
12x8x61286HCKO12 lbs806101002925
10x10x610106HCKO12 lbs806101002918
12x10x612106HCKO11 lbs806101002932
12x12x612126HCKO15 lbs806101002949
15x12x615126HCKO18 lbs806101002956
15x15x615156HCKO21 lbs806101002963
18x12x618126HCKO20 lbs806101002970
18x15x618156HCKO24 lbs806101002987
18x18x618186HCKO28 lbs806101002994
24x12x624126HCKO26 lbs806101003007
24x18x624186HCKO34 lbs806101003014
24x24x624246HCKO43 lbs806101003021
30x24x630246HCKO51 lbs806101003038
30x30x630306HCKO62 lbs806101003045
36x24x636246HCKO60 lbs806101003052
36x30x636306HCKO72 lbs806101003069
48x24x648246HCKO77 lbs806101003083
8x8x8888HCKO10 lbs806101003113
10x10x810108HCKO14 lbs806101003120
12x12x812128HCKO17 lbs806101003137
15x12x815128HCKO20 lbs806101003144
15x15x815158HCKO24 lbs806101003151
18x12x818128HCKO23 lbs806101003168
18x15x818158HCKO27 lbs806101003175
18x18x818188HCKO31 lbs806101003182
24x12x824128HCKO29 lbs806101003199
24x18x824188HCKO38 lbs806101003205
24x24x824248HCKO47 lbs806101003212
30x24x830248HCKO56 lbs806101003229
30x30x830308HCKO67 lbs806101003236
36x24x836248HCKO65 lbs806101003243
36x30x836308HCKO78 lbs806101003250
48x24x848248HCKO87 lbs806101003274
12x12x10121210HCKO20 lbs806101003304
18x12x10181210HCKO26 lbs806101003311
18x18x10181810HCKO34 lbs806101003328
24x18x10241810HCKO42 lbs806101003335
24x24x10242410HCKO50 lbs806101003342
30x24x10302410HCKO61 lbs806101003366
30x30x10303010HCKO73 lbs806101003359
36x24x10362410HCKO71 lbs806101003373
36x30x10363010HCKO84 lbs806101003380
12x12x12121212HCKO22 lbs806101003427
18x12x12181212HCKO28.58 lbs806101003434
18x18x12181812HCKO37 lbs806101003441
24x12x12241212HCKO36.12 lbs806101003458
24x18x12241812HCKO46 lbs806101003465
24x24x12242412HCKO57 lbs806101003472
30x30x12303012HCKO79 lbs806101003489
36x24x12362412HCKO72 lbs806101003496
