TYPE 1 GALVANIZED SCREW COVER BOX WITH KO'S

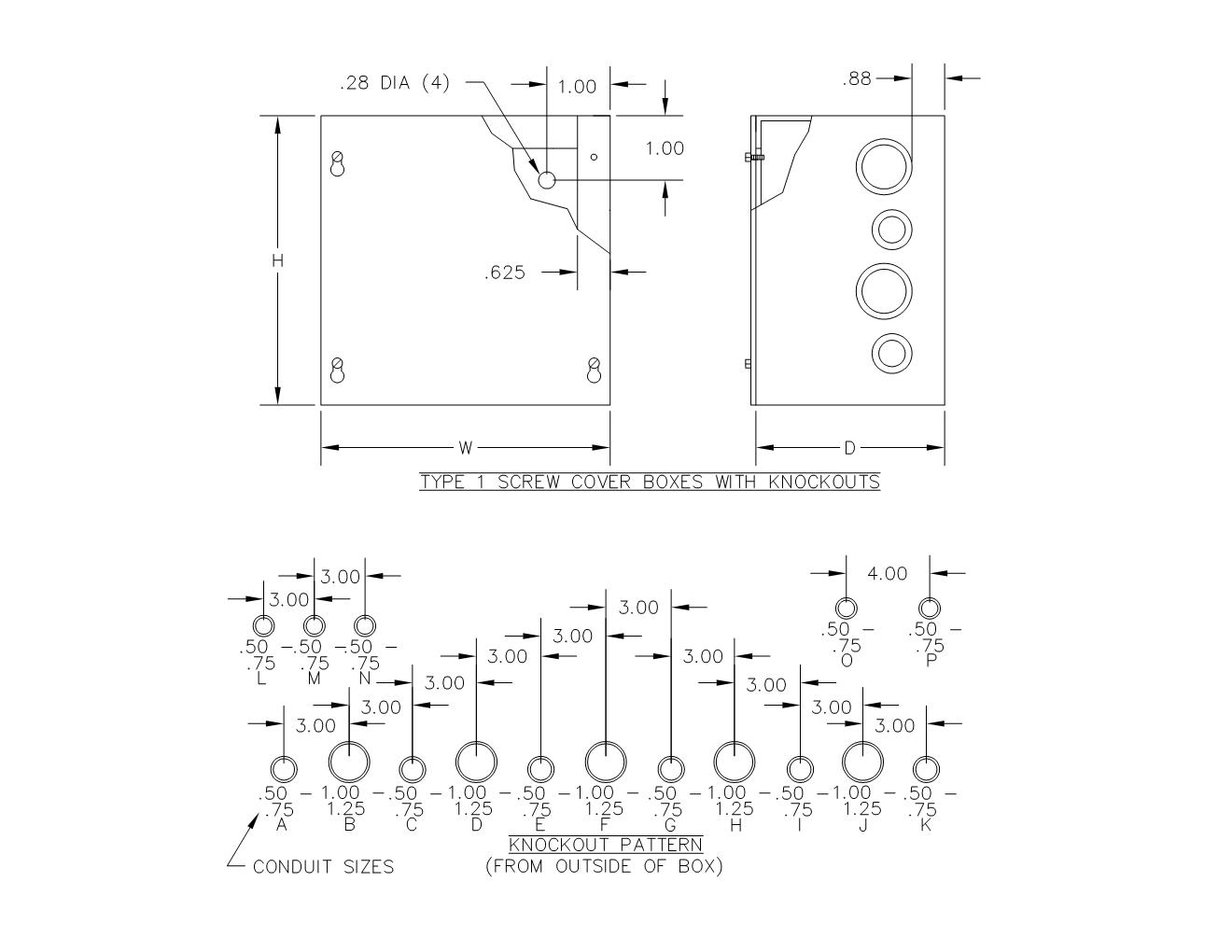

TYPE 1 GALVANIZED SCREW COVER BOX WITH KO'S - Image 2
,

TYPE 1 GALVANIZED SCREW COVER BOX WITH KO’S

Construction:
  • VARIOUS SIZES OF EASILY REMOVABLE CONCENTRIC KNOCKOUTS ON ALL FOUR SIDES
  • KEYHOLE SCREW SLOTS IN THE COVER PERMIT THE REMOVAL OF THE COVER WITHOUT EXTRACTING THE SCREWS
  • CODE GAUGE G-60 or G-90 GALVANIZED STEEL
  • REMOVABLE COVER FASTENED WITH PLATED STEEL SCREWS
Finish:
  • TYPE 1 SCREW COVER BOXES ARE PROVIDED IN G-60 or G-90 GALVANIZED STEEL

Indoor use primarily to provide protection against contact with the enclosed equipment and against a limited amount of falling dirt.

DOWNLOAD SPEC SHEET

SKU: SCKO Categories: ,

For large quantities or custom sizes call factory
Enclosure Size HxWxDCatalog NumberWeightUPC_12Digit
4x4x4444SCKO4 lbs806101000891
6x4x4644SCKO5 lbs806101000907
6x6x4664SCKO5 lbs806101000914
8x6x4864SCKO6 lbs806101000921
8x8x4884SCKO7 lbs806101000938
10x6x41064SCKO7 lbs806101000945
12x6x41264SCKO8 lbs806101000976
10x8x41084SCKO9 lbs806101000952
12x8x41284SCKO10 lbs806101000983
10x10x410104SCKO10 lbs806101000969
12x10x412104SCKO11 lbs806101000990
12x12x412124SCKO13 lbs806101001003
15x12x415124SCKO15 lbs806101001010
15x15x415154SCKO16 lbs806101001027
18x12x418124SCKO18 lbs806101001034
18x15x418154SCKO21 lbs806101001041
18x18x418184SCKO24 lbs806101001058
24x12x424124SCKO22 lbs806101001065
24x18x424184SCKO30 lbs806101001072
24x24x424244SCKO39 lbs806101001089
30x24x430244SCKO47 lbs806101001096
36x24x436244SCKO54 lbs806101001102
6x6x6666SCKO6 lbs806101001119
8x6x6866SCKO7 lbs806101001126
8x8x6886SCKO9 lbs806101001133
10x8x61086SCKO10 lbs806101001140
12x8x61286SCKO12 lbs806101001164
10x10x610106SCKO12 lbs806101001157
12x10x612106SCKO13 lbs806101001171
12x12x612126SCKO15 lbs806101001188
15x12x615126SCKO18 lbs806101001195
15x15x615156SCKO21 lbs806101001201
18x12x618126SCKO20 lbs806101001218
18x15x618156SCKO24 lbs806101001225
18x18x618186SCKO28 lbs806101001232
24x12x624126SCKO26 lbs806101001249
24x18x624186SCKO34 lbs806101001256
24x24x624246SCKO43 lbs806101001263
30x24x630246SCKO51 lbs806101001270
30x30x630306SCKO62 lbs806101001287
36x24x636246SCKO60 lbs806101001294
36x30x636306SCKO72 lbs806101001300
48x24x648246SCKO77 lbs806101001324
10x1x0810108SCKO14 lbs806101001362
8x8x8888SCKO10 lbs806101001355
12x12x812128SCKO17 lbs806101001379
15x12x815128SCKO20 lbs806101001386
15x15x815158SCKO24 lbs806101001393
18x12x818128SCKO23 lbs806101001409
18x15x818158SCKO27 lbs806101001416
18x18x818188SCKO31 lbs806101001423
24x12x824128SCKO29 lbs806101001430
24x18x824188SCKO38 lbs806101001447
24x24x824248SCKO47 lbs806101001454
30x24x830248SCKO56 lbs806101001461
30x30x830308SCKO67 lbs806101001478
36x24x836248SCKO65 lbs806101029083
36x30x836308SCKO78 lbs806101001492
48x24x848248SCKO87 lbs806101001515
12x12x10121210SCKO20 lbs806101001546
18x12x10181210SCKO26 lbs806101001553
18x18x10181810SCKO34 lbs806101001560
24x18x10241810SCKO42 lbs806101001577
24x24x10242410SCKO50 lbs806101001584
30x24x10302410SCKO61 lbs806101001607
30x30x10303010SCKO73 lbs806101001591
36x24x10362410SCKO71 lbs806101001614
36x30x10363010SCKO84 lbs806101001621
12x12x12121212SCKO22 lbs806101001669
18x12x12181212SCKO28.58 lbs806101001676
18x18x12181812SCKO37 lbs806101001683
24x12x12241212SCKO36.12 lbs806101001690
24x18x12241812SCKO46 lbs806101001706
24x24x12242412SCKO57 lbs806101001713
30x30x12303012SCKO79 lbs806101001720
36x24x12362412SCKO72 lbs806101001737
