Wireway Fittings, Type 1

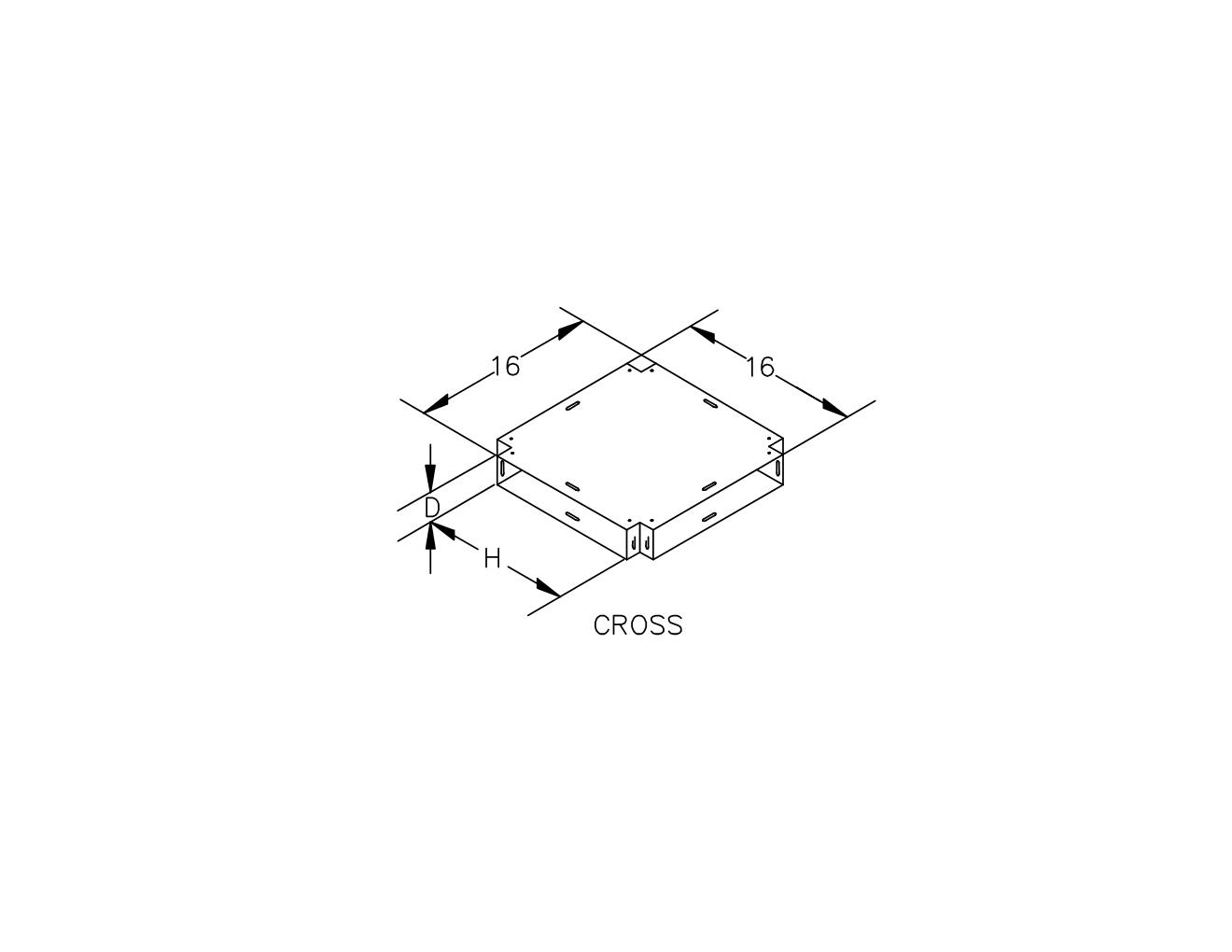

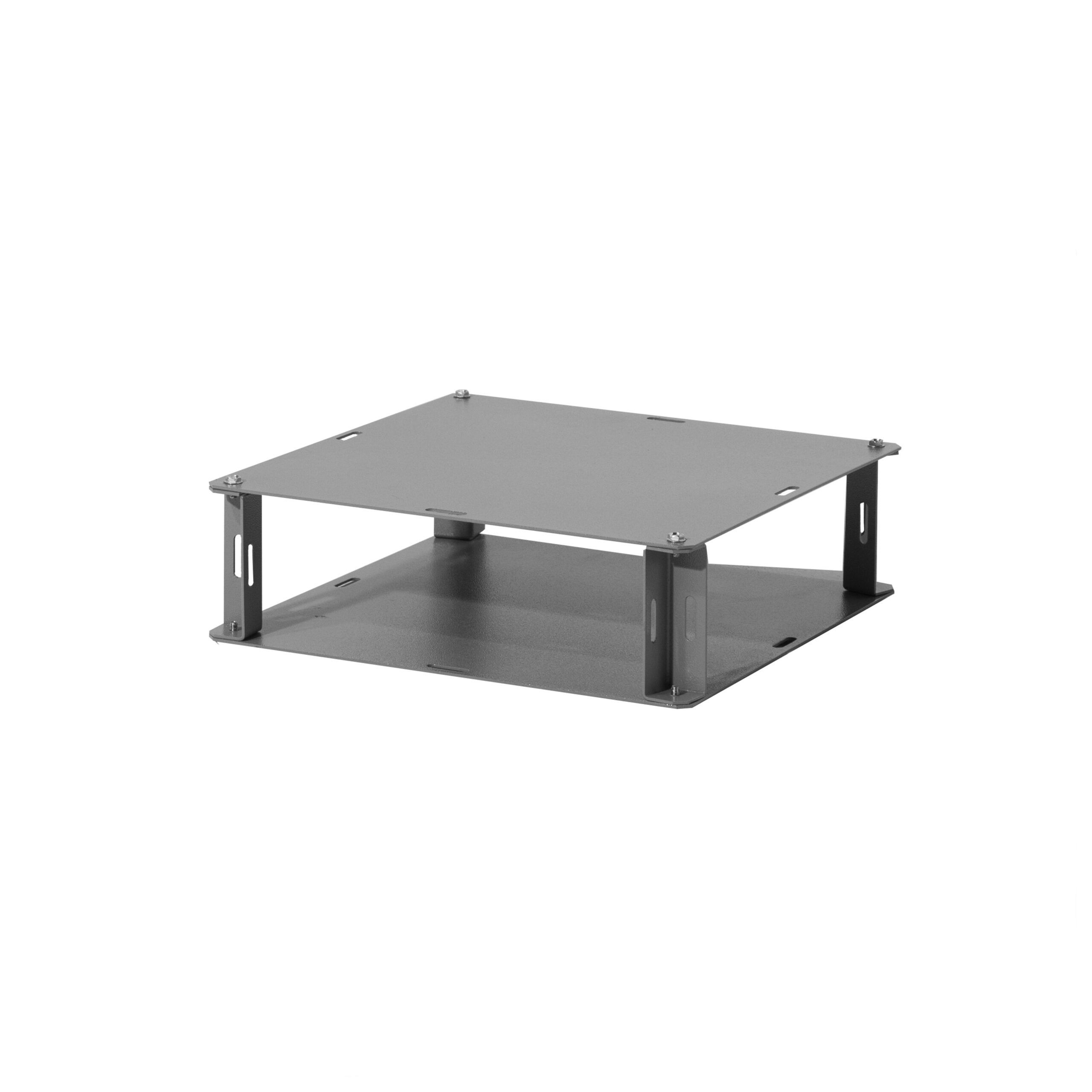

TYPE 1 PAINTED CROSS FOR X-RAY DUCT
Construction:- REMOVABLE COVER FASTENED WITH PLATED STEEL SCREWS
- THIS FITTING CAN BE OPENED ON ANY SIDE TO PERMIT THE LAYING IN OF ENTIRE RUNS OF WIRING
- CODE GAUGE PAINT GRIP GALVANIZED STEEL
- FOUR-WAY JUNCTION
- ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL
Indoor use primarily to provide protection against contact with the enclosed equipment and against a limited amount of falling dirt.
For large quantities or custom sizes call factory
| Wireway Size LxHxD | Catalog Number | Weight | UPC_12Digit |
|---|---|---|---|
| 10x3.5 | 10-CX | 18 lbs | 806101013129 |
| 18x3.5 | 18-CX | 24 lbs | 806101013303 |
