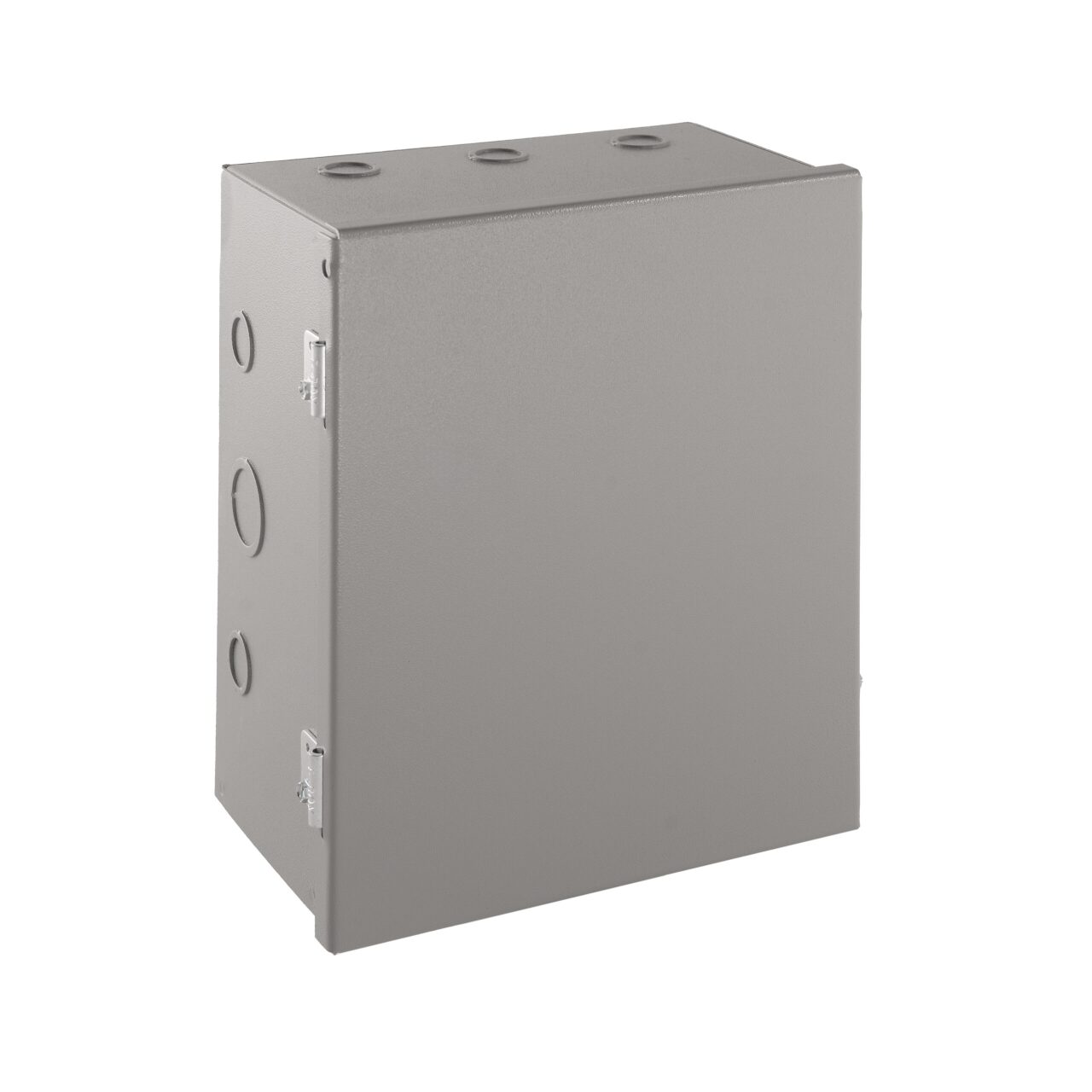

TYPE 1 PAINTED HINGED COVER BOX WITH KO'S
TYPE 1 PAINTED HINGED COVER BOX WITH KO'S - Image 2
,

TYPE 1 PAINTED HINGED COVER BOX WITH KO’S

Construction:
  • WITH KO'S
  • BOLT-ON HINGES ON SMALLER ENCLOSURES AND BUTT HINGES ON LARGER ENCLOSURES
  • HINGED COVERS ARE FASTENED WITH PLATED STEEL SCREWS
  • CODE GAUGE PAINT GRIP GALVANIZED STEEL
Finish:
  • ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL

Indoor use primarily to provide protection against contact with the enclosed equipment and against a limited amount of falling dirt.

SKU: HCPKO Categories: ,

For large quantities or custom sizes call factory
Enclosure Size HxWxDCatalog NumberWeightUPC_12Digit
4x4x4444HCPKO4 lbs806101006176
6x4x4644HCPKO5 lbs806101006183
6x6x4664HCPKO5 lbs806101006190
8x6x4864HCPKO6 lbs806101006206
8x8x4884HCPKO7 lbs806101006213
10x6x41064HCPKO7 lbs806101006220
12x6x41264HCPKO8 lbs806101006251
10x8x41084HCPKO9 lbs806101006237
12x8x41284HCPKO10 lbs806101006268
10x10x410104HCPKO10 lbs806101006244
12x10x412104HCPKO11 lbs806101006275
12x12x412124HCPKO13 lbs806101006282
15x12x415124HCPKO15 lbs806101006299
15x15x415154HCPKO16 lbs806101006305
18x12x418124HCPKO18 lbs806101006312
18x15x418154HCPKO21 lbs806101006329
18x18x418184HCPKO24 lbs806101006336
24x12x424124HCPKO22 lbs806101006343
24x18x424184HCPKO30 lbs806101006350
24x24x424244HCPKO39 lbs806101006367
30x24x430244HCPKO47 lbs806101006374
36x24x436244HCPKO54 lbs806101006381
6x6x6666HCPKO6 lbs806101006398
8x6x6866HCPKO7 lbs806101006404
8x8x6886HCPKO9 lbs806101006411
10x8x61086HCPKO10 lbs806101006428
12x8x61286HCPKO12 lbs806101006442
10x10x610106HCPKO12 lbs806101006435
12x10x612106HCPKO11 lbs806101006459
12x12x612126HCPKO15 lbs806101006466
15x12x615126HCPKO18 lbs806101006473
15x15x615156HCPKO21 lbs806101006480
18x12x618126HCPKO20 lbs806101006497
18x15x618156HCPKO24 lbs806101006503
18x18x618186HCPKO28 lbs806101006510
24x12x624126HCPKO26 lbs806101006527
24x18x624186HCPKO34 lbs806101006534
24x24x624246HCPKO43 lbs806101006541
30x24x630246HCPKO51 lbs806101006558
30x30x630306HCPKO62 lbs806101006565
36x24x636246HCPKO60 lbs806101006572
36x30x636306HCPKO72 lbs806101006589
48x24x648246HCPKO77 lbs806101006602
8x8x8888HCPKO10 lbs806101006633
10x10x810108HCPKO14 lbs806101006640
12x12x812128HCPKO17 lbs806101006657
15x12x815128HCPKO20 lbs806101006664
15x15x815158HCPKO24 lbs806101006671
18x12x818128HCPKO23 lbs806101006688
18x15x818158HCPKO27 lbs806101006695
18x18x818188HCPKO31 lbs806101006701
24x12x824128HCPKO29 lbs806101006718
24x18x824188HCPKO38 lbs806101006725
24x24x824248HCPKO47 lbs806101006732
30x24x830248HCPKO56 lbs806101006749
30x30x830308HCPKO67 lbs806101006756
36x24x836248HCPKO65 lbs806101006763
36x30x836308HCPKO78 lbs806101006770
48x24x848248HCPKO87 lbs806101006794
12x12x10121210HCPKO20 lbs806101006824
18x12x10181210HCPKO26 lbs806101006831
18x18x10181810HCPKO34 lbs806101006848
24x18x10241810HCPKO42 lbs806101006855
24x24x10242410HCPKO50 lbs806101006862
30x24x10302410HCPKO61 lbs806101006886
30x30x10303010HCPKO73 lbs806101006879
36x24x10362410HCPKO71 lbs806101006893
36x30x10363010HCPKO84 lbs806101006909
12x12x12121212HCPKO22 lbs806101006947
18x12x12181212HCPKO28.58 lbs806101006954
18x18x12181812HCPKO37 lbs806101006961
24x12x12241212HCPKO36.12 lbs806101006978
24x18x12241812HCPKO46 lbs806101006985
24x24x12242412HCPKO57 lbs806101006992
30x30x12303012HCPKO79 lbs806101007005
36x24x12362412HCPKO72 lbs806101007012
