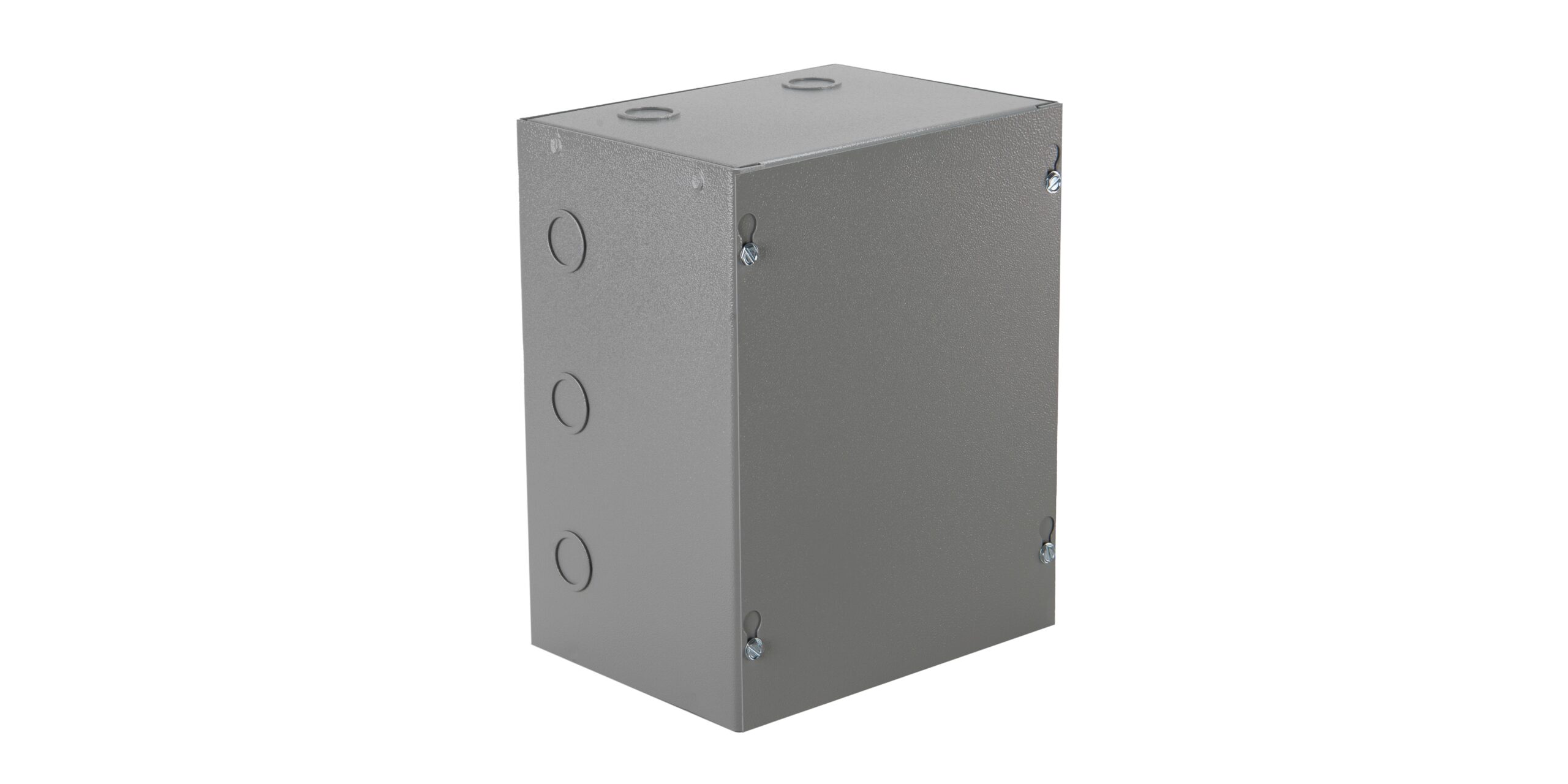

TYPE 1 PAINTED SCREW COVER BOX WITH KO’S

Construction:
  • REMOVABLE COVER FASTENED WITH PLATED STEEL SCREWS
  • CODE GAUGE PAINT GRIP GALVANIZED STEEL
  • KEYHOLE SCREW SLOTS IN THE COVER PERMIT THE REMOVAL OF THE COVER WITHOUT EXTRACTING THE SCREWS
  • VARIOUS SIZES OF EASILY REMOVABLE CONCENTRIC KNOCKOUTS ON ALL FOUR SIDES
Finish:
  • ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL

Indoor use primarily to provide protection against contact with the enclosed equipment and against a limited amount of falling dirt.

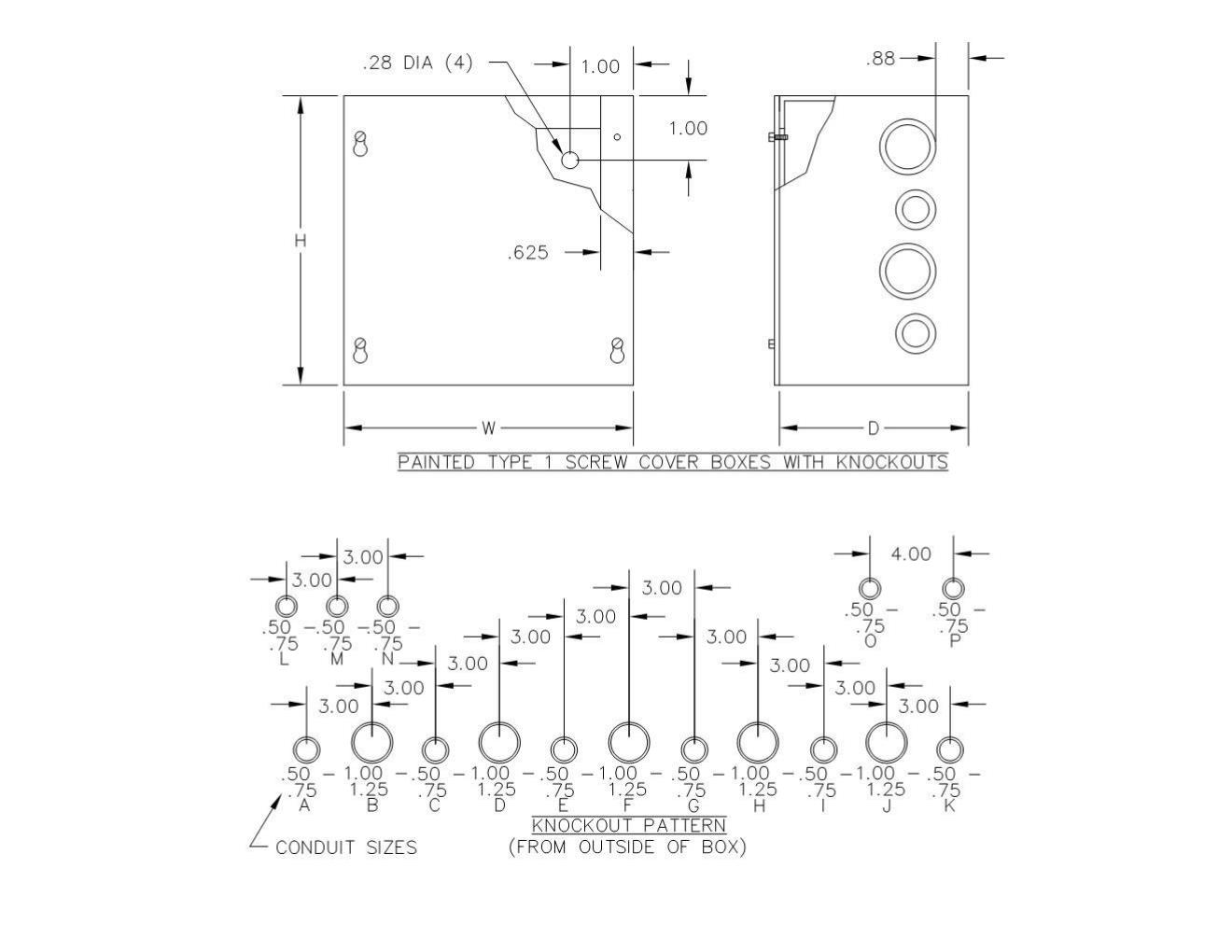

DOWNLOAD SPEC SHEET

SKU: SCPKO Categories: ,

For large quantities or custom sizes call factory
Enclosure Size HxWxDCatalog NumberWeightUPC_12Digit
4x4x4444SCPKO4 lbs806101004417
6x4x4644SCPKO5 lbs806101004424
6x6x4664SCPKO5 lbs806101004431
8x6x4864SCPKO6 lbs806101004448
8x8x4884SCPKO7 lbs806101004455
10x6x41064SCPKO7 lbs806101004462
12x6x41264SCPKO8 lbs806101004493
10x8x41084SCPKO9 lbs806101004479
12x8x41284SCPKO10 lbs806101004509
10x10x410104SCPKO10 lbs806101004486
12x10x412104SCPKO11 lbs806101004516
12x12x412124SCPKO13 lbs806101004523
15x12x415124SCPKO15 lbs806101004530
15x15x415154SCPKO16 lbs806101004547
18x12x418124SCPKO18 lbs806101004554
18x15x418154SCPKO21 lbs806101004561
18x18x418184SCPKO24 lbs806101004578
24x12x424124SCPKO22 lbs806101004585
24x18x424184SCPKO30 lbs806101004592
24x24x424244SCPKO39 lbs806101004608
30x24x430244SCPKO47 lbs806101004615
36x24x436244SCPKO54 lbs806101004622
6x6x6666SCPKO6 lbs806101004639
8x6x6866SCPKO7 lbs806101004646
8x8x6886SCPKO9 lbs806101004653
10x8x61086SCPKO10 lbs806101004660
12x8x61286SCPKO12 lbs806101004684
10x10x610106SCPKO12 lbs806101004677
12x10x612106SCPKO13 lbs806101004691
12x12x612126SCPKO15 lbs806101004707
15x12x615126SCPKO18 lbs806101004714
15x15x615156SCPKO21 lbs806101004721
18x12x618126SCPKO20 lbs806101004738
18x15x618156SCPKO24 lbs806101004745
18x18x618186SCPKO28 lbs806101004752
24x12x624126SCPKO26 lbs806101004769
24x18x624186SCPKO34 lbs806101004776
24x24x624246SCPKO43 lbs806101004783
30x24x630246SCPKO51 lbs806101004790
30x30x630306SCPKO62 lbs806101004806
36x24x636246SCPKO60 lbs806101004813
36x30x636306SCPKO72 lbs806101004820
48x24x648246SCPKO77 lbs806101004844
8x8x8888SCPKO10 lbs806101004875
10x10x810108SCPKO14 lbs806101004882
12x12x812128SCPKO17 lbs806101004899
15x12x815128SCPKO20 lbs806101004905
15x15x815158SCPKO24 lbs806101004912
18x12x818128SCPKO23 lbs806101004929
18x15x818158SCPKO27 lbs806101004936
18x18x818188SCPKO31 lbs806101004943
24x12x824128SCPKO29 lbs806101004950
24x18x824188SCPKO38 lbs806101004967
24x24x824248SCPKO47 lbs806101004974
30x24x830248SCPKO56 lbs806101004981
30x30x830308SCPKO67 lbs806101004998
36x24x836248SCPKO65 lbs806101029090
36x30x836308SCPKO78 lbs806101005018
48x24x848248SCPKO87 lbs806101005032
12x12x10121210SCPKO20 lbs806101005063
18x12x10181210SCPKO26 lbs806101005070
18x18x10181810SCPKO34 lbs806101005087
24x18x10241810SCPKO42 lbs806101005094
24x24x10242410SCPKO50 lbs806101005100
24x24x10242412SCPKO57 lbs806101005230
30x24x10302410SCPKO61 lbs806101005124
30x30x10303010SCPKO73 lbs806101005117
36x24x10362410SCPKO71 lbs806101005131
36x30x10363010SCPKO84 lbs806101005148
12x12x12121212SCPKO22 lbs806101005186
18x12x12181212SCPKO28.58 lbs806101005193
18x18x12181812SCPKO37 lbs806101005209
24x12x12241212SCPKO36.12 lbs806101005216
24x18x12241812SCPKO46 lbs806101005223
30x30x12303012SCPKO79 lbs806101005247
36x24x12362412SCPKO72 lbs806101005254
