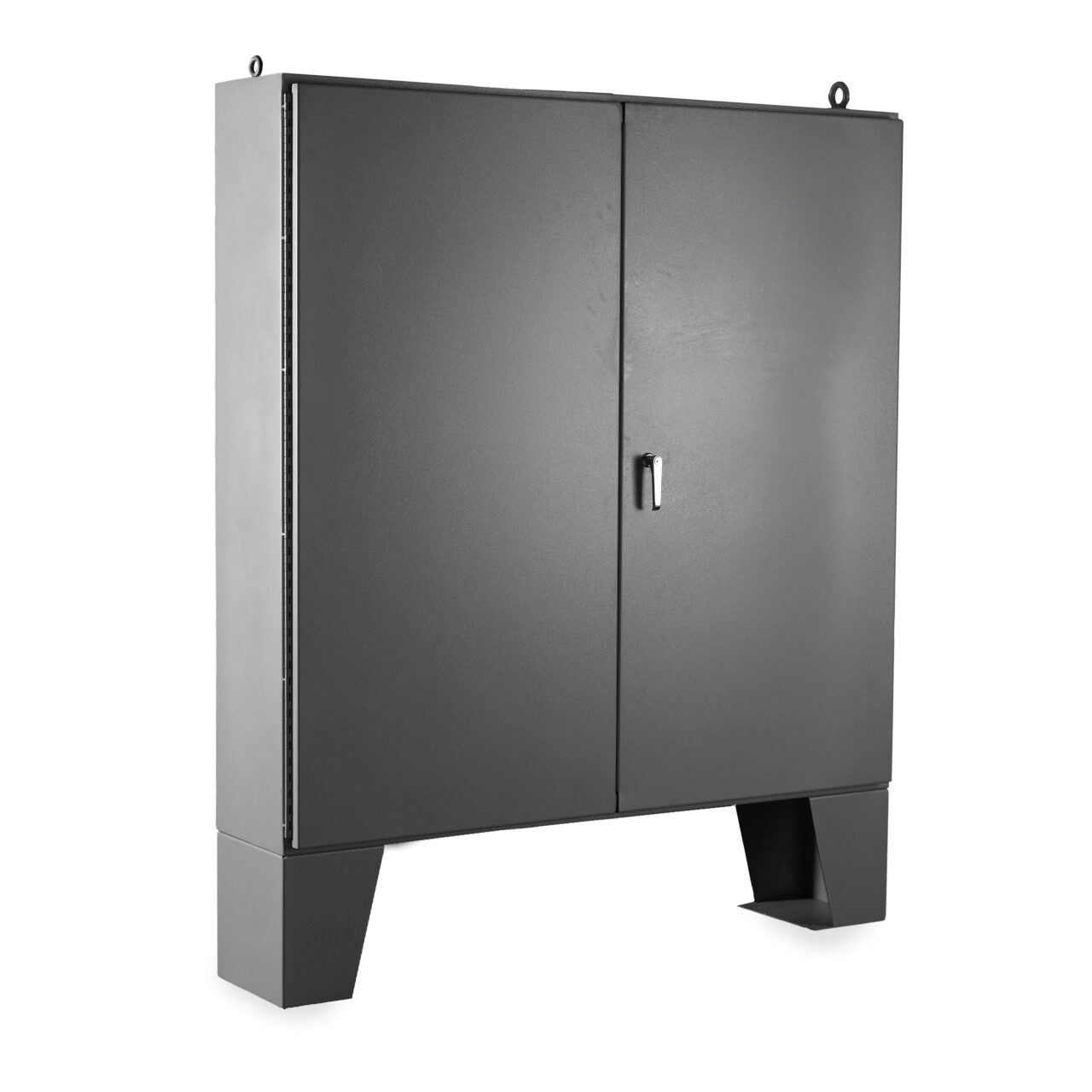

TYPE 12 PAINTED DOUBLE DOOR FLOOR MOUNT ENCLOSURE
TYPE 12 PAINTED DOUBLE DOOR FLOOR MOUNT ENCLOSURE - Image 2
,

TYPE 12 PAINTED DOUBLE DOOR FLOOR MOUNT ENCLOSURE

Construction:
  • 12 INCH FLOOR STANDS ARE WELDED TO ENCLOSURE
  • GASKETED OVERLAPPING DOORS ELIMINATE THE NEED FOR CENTERPOST
  • HEAVY DUTY LIFTING EYES
  • PRINT POCKET
  • HEAVY GAUGE CONTINUOUS HINGE
  • 3 POINT LATCHING MECHANISM OPERATED BY OIL TIGHT KEYLOCKING/PADLOCKING L-HANDLE
  • SEAMS CONTINUOUSLY WELDED AND GROUND SMOOTH
  • OIL RESISTANT GASKET
  • STUDS PROVIDED FOR MOUNTING OPTIONAL PANEL
  • LATCH RODS HAVE ROLLERS FOR EASIER DOOR CLOSING
  • 12 GAUGE PAINT GRIP GALVANNEAL STEEL CODE GAUGE PAINT GRIP GALVANIZED STEEL
Finish:
  • ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL

Indoor use to provide a degree of protection against dust, dirt, fiber, flyings, dripping water and external condensation of non corrosive liquids.

DOWNLOAD SPEC SHEET

Select your size
SKU: DN12 Categories: ,

For large quantities or custom sizes call factory
Enclosure Size HxWxDCatalog NumberWeightUPC_12Digit
54x42x8D604820N12335 lbs806101018049
60x48x8D60488N12254 lbs806101017912
60x48x10D604816N12308 lbs806101018001
60x60x10D606010N12318 lbs806101017936
72x60x10D726010N12377 lbs806101017943
72x72x10D727210N12460 lbs806101017950
60x48x12D604812N12281 lbs806101017967
60x60x12D606012N12337 lbs806101017974
72x60x12D726012N12393 lbs806101017981
60x48x16D604810N12267 lbs806101017929
60x60x16D606016N12367 lbs806101018018
72x60x16D726016N12389 lbs806101018025
72x72x16D727216N12494 lbs806101018032
60x48x20D54428N12231 lbs806101017905
72x60x20D726020N12422 lbs806101018056
72x72x20D727220N12530 lbs806101018063
60x48x24D604824N12362 lbs806101018070
60x60x24D606024N12427 lbs806101018087
72x60x24D726024N12455 lbs806101018094
72x72x24D727224N12566 lbs806101018100
