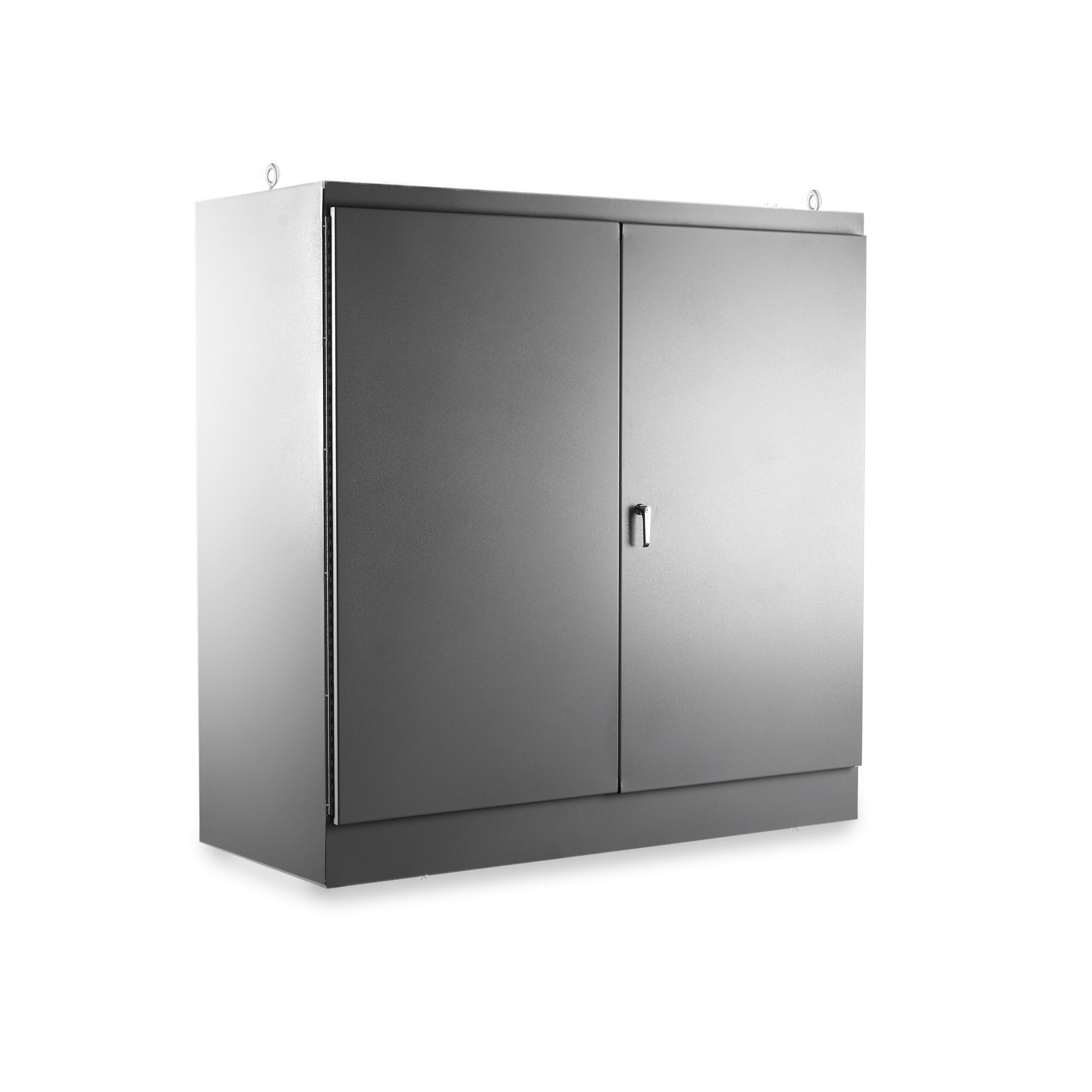

TYPE 12 PAINTED FREESTANDING DOUBLE DOOR ENCLOSURE

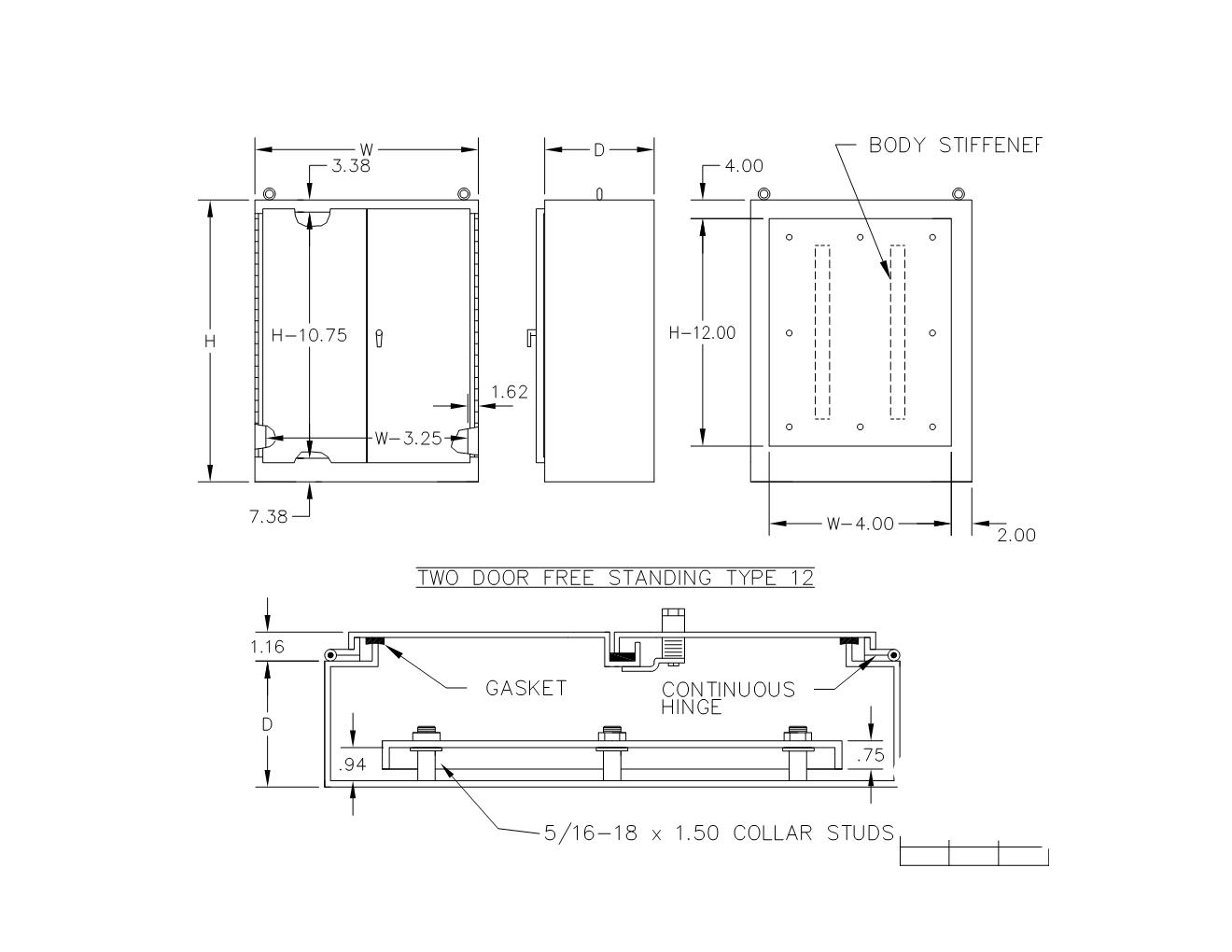

TYPE 12 PAINTED FREESTANDING DOUBLE DOOR ENCLOSURE - Image 2
,

TYPE 12 PAINTED FREESTANDING DOUBLE DOOR ENCLOSURE

Construction:
  • GASKETED OVERLAPPING DOORS ELIMINATE THE NEED FOR CENTERPOST
  • HEAVY DUTY LIFTING EYES
  • PRINT POCKET
  • HEAVY GAUGE CONTINUOUS HINGE
  • OIL RESISTANT GASKET
  • SEAMS CONTINUOUSLY WELDED AND GROUND SMOOTH
  • LATCH RODS HAVE ROLLERS FOR EASIER DOOR CLOSING
  • STUDS PROVIDED FOR MOUNTING OPTIONAL PANEL
  • 12 GAUGE PAINT GRIP GALVANNEAL STEEL CODE GAUGE PAINT GRIP GALVANIZED STEEL
  • 3 POINT LATCHING MECHANISM OPERATED BY OIL TIGHT KEYLOCKING/PADLOCKING L-HANDLE
Finish:
  • ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL

Indoor use to provide a degree of protection against dust, dirt, fiber, flyings, dripping water and external condensation of non corrosive liquids.

DOWNLOAD SPEC SHEET

SKU: DFN12 Categories: ,

For large quantities or custom sizes call factory
Enclosure Size HxWxDCatalog NumberWeightUPC_12Digit
72x48x18DF724818N12373 lbs806101018452
72x60x18DF726018N12443 lbs806101018469
72x72x18DF727218N12513 lbs806101018476
90x72x20DF907220N12637 lbs806101018483
72x48x24DF724824N12418 lbs806101018490
72x60x24DF726024N12492 lbs806101018506
72x72x24DF727224N12566 lbs806101018513
90x72x24DF907224N12678 lbs806101018520
72x60x36DF726036N12591 lbs806101018537
90x72x36DF907236N12816 lbs806101018544
