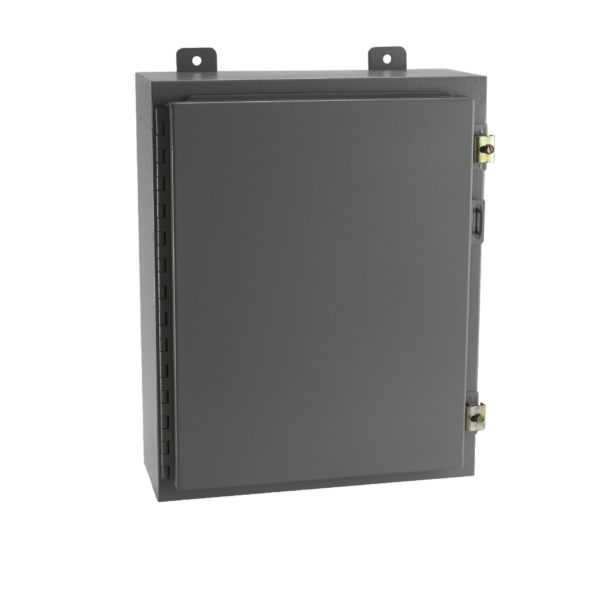

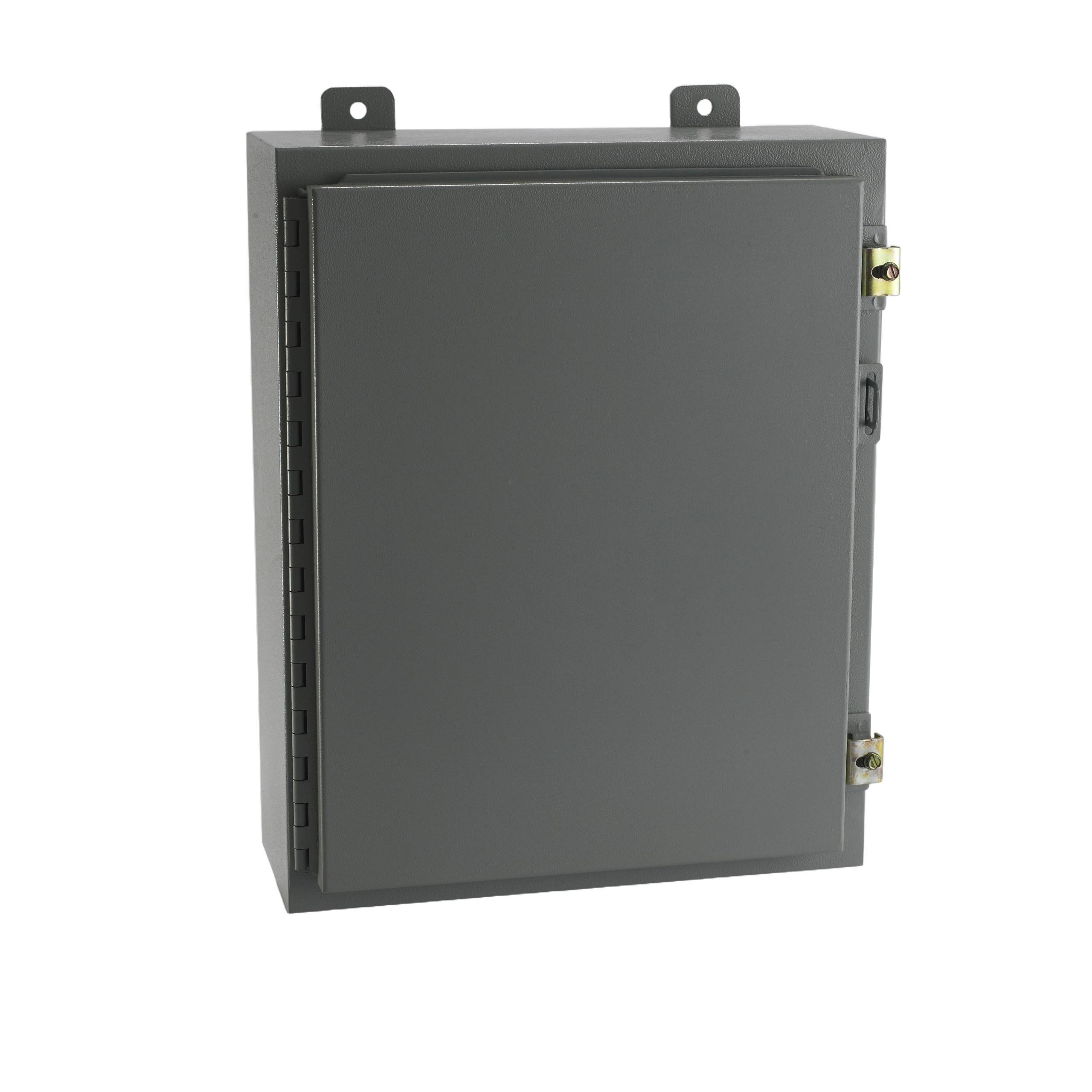

TYPE 12 SINGLE DOOR PAINTED WALL MOUNT HINGED COVER ENCLOSURE W/ CLAMPS
TYPE 12 SINGLE DOOR PAINTED WALL MOUNT HINGED COVER ENCLOSURE W/ CLAMPS - Image 2
,

TYPE 12 SINGLE DOOR PAINTED WALL MOUNT HINGED COVER ENCLOSURE W/ CLAMPS

Construction:
  • CODE GAUGE PAINT GRIP GALVANIZED STEEL
  • SEAMS CONTINUOUSLY WELDED AND GROUND SMOOTH
  • OIL RESISTANT GASKET
  • CONTINUOUS HINGE
  • SCREW CLAMPS ARE QUICK AND EASY TO OPERATE
  • STUDS PROVIDED FOR MOUNTING OPTIONAL BACK PANEL
  • EXTERNAL MOUNTING TABS FOR EASY INSTALLATION
Finish:
  • ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL

Indoor use to provide a degree of protection against dust, dirt, fiber, flyings, dripping water and external condensation of non corrosive liquids.

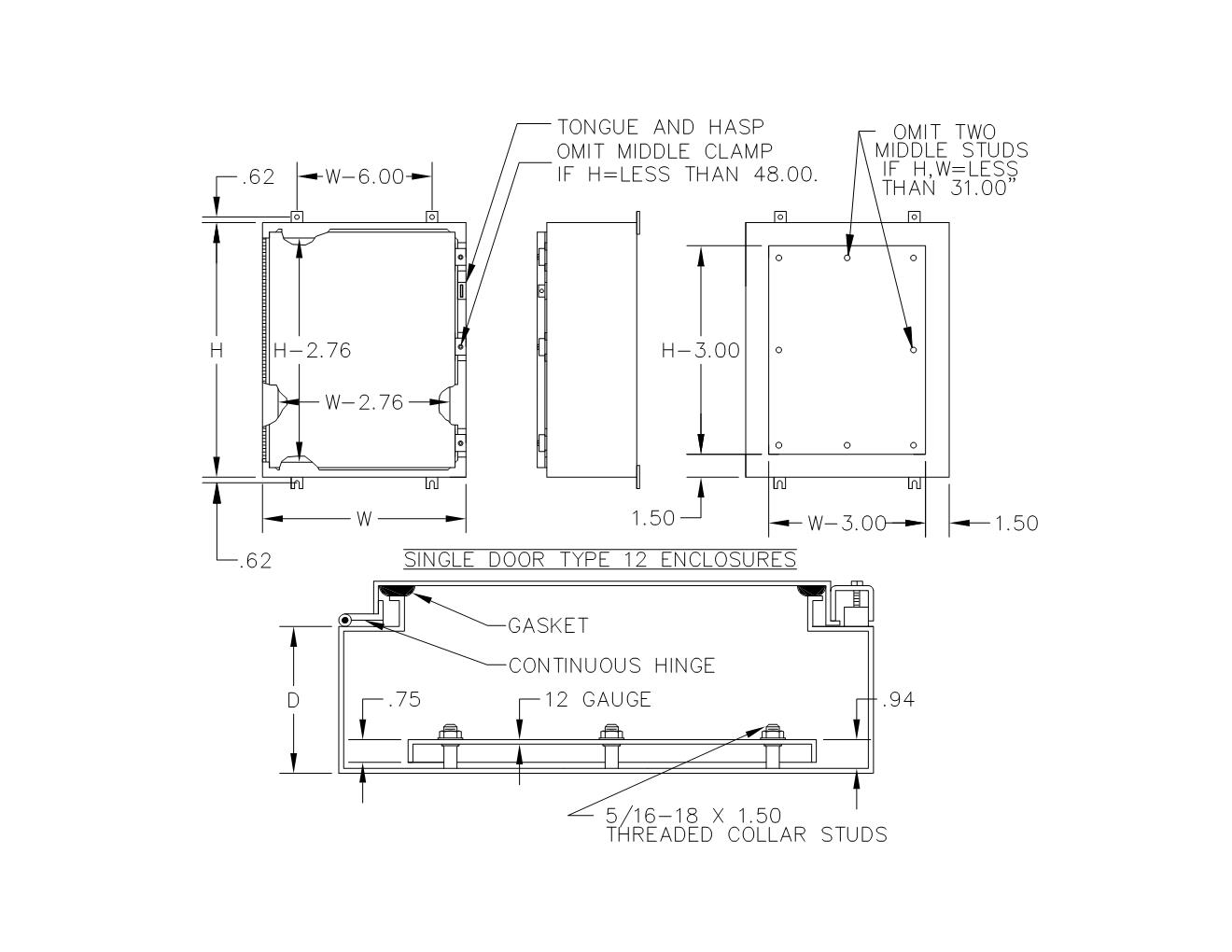

DOWNLOAD SPEC SHEET

SKU: N12 Categories: ,

For large quantities or custom sizes call factory
Enclosure Size HxWxDCatalog NumberWeightUPC_12Digit
16x12x616126N1220 lbs806101016946
16x16x616166N1225 lbs806101016953
20x12x620126N1224 lbs806101016977
16x20x616206N1229 lbs806101016960
18x18x618186N1230 lbs
20x16x620166N1229 lbs806101016984
24x12x624126N1228 lbs806101017004
20x20x620206N1234 lbs806101016991
24x16x624166N1228 lbs806101017011
24x20x624206N1240 lbs806101017028
24x24x624246N1246 lbs806101017035
30x20x630206N1248 lbs806101017042
30x24x630246N1252 lbs806101017059
36x24x636246N1264 lbs806101017066
36x30x636306N1276 lbs806101017073
16x12x816128N1223 lbs806101017080
16x16x816168N1228 lbs806101017097
18x18x818188N1233 lbs
20x16x820168N1232 lbs806101017103
24x12x824128N1231 lbs806101017127
20x20x820208N1238 lbs806101017110
24x16x824168N1237 lbs806101017134
24x20x824208N1244 lbs806101017141
24x24x824248N1250 lbs806101017158
30x20x830208N1252 lbs806101017165
30x24x830248N1260 lbs806101017172
24x36x824368N1270 lbs
30x30x830308N1271 lbs806101017189
36x24x836248N1269 lbs806101017196
36x30x836308N1282 lbs806101017202
42x24x842248N1279 lbs806101017226
36x36x836368N1295 lbs806101017219
42x30x842308N1293 lbs806101017233
42x36x842368N12108 lbs806101017240
48x30x848308N12105 lbs806101017257
48x36x848368N12120 lbs806101017264
60x36x860368N12146 lbs806101017271
16x12x10161210N1225 lbs806101017288
16x16x10161610N12207 lbs
18x18x10181810N1236 lbs
20x16x10201610N1236 lbs806101017295
20x20x10202010N1242 lbs806101017301
24x20x10242010N1248 lbs806101017318
24x24x10242410N1254 lbs806101017325
30x24x10302410N1265 lbs806101017332
30x30x10303010N1277 lbs
36x24x10362410N1275 lbs806101017349
36x30x10363010N1288 lbs806101017356
36x36x10363610N12102 lbs
42x30x10423010N12107 lbs806101017363
42x36x10423610N12115 lbs806101017370
48x30x10483010N12111 lbs806101017387
48x36x10483610N12128 lbs806101017394
60x36x10603610N12155 lbs806101017400
18x18x12181812N1240 lbs
20x16x12201612N1239 lbs806101017417
20x20x12202012N1242 lbs
24x20x12242012N1252 lbs806101017424
24x24x12242412N1259 lbs806101017431
30x24x12302412N1269 lbs806101017448
30x30x12303012N1282 lbs806101017455
36x24x12362412N1280 lbs806101017462
36x30x12363012N1294 lbs806101017479
36x36x12363612N12108 lbs806101017486
48x24x12482412N12102 lbs
42x30x12423012N12106 lbs806101017493
42x36x12423612N12122 lbs806101017509
48x36x12483612N12136 lbs806101017516
60x36x12603612N12166 lbs806101017523
72x36x12723612N12191 lbs806101017530
36x36x14363614N12115 lbs
24x20x16242016N1260 lbs806101017547
24x24x16242416N1268 lbs
30x24x16302416N1279 lbs806101017554
36x30x16363016N12106 lbs806101017561
36x36x16363616N12121 lbs
48x36x16483616N12151 lbs806101017578
60x36x16603616N12184 lbs806101017585
36x36x18363618N12128 lbs
36x30x20363020N12118 lbs806101017592
48x36x20483620N12167 lbs806101017608
60x36x20603620N12201 lbs806101017615
