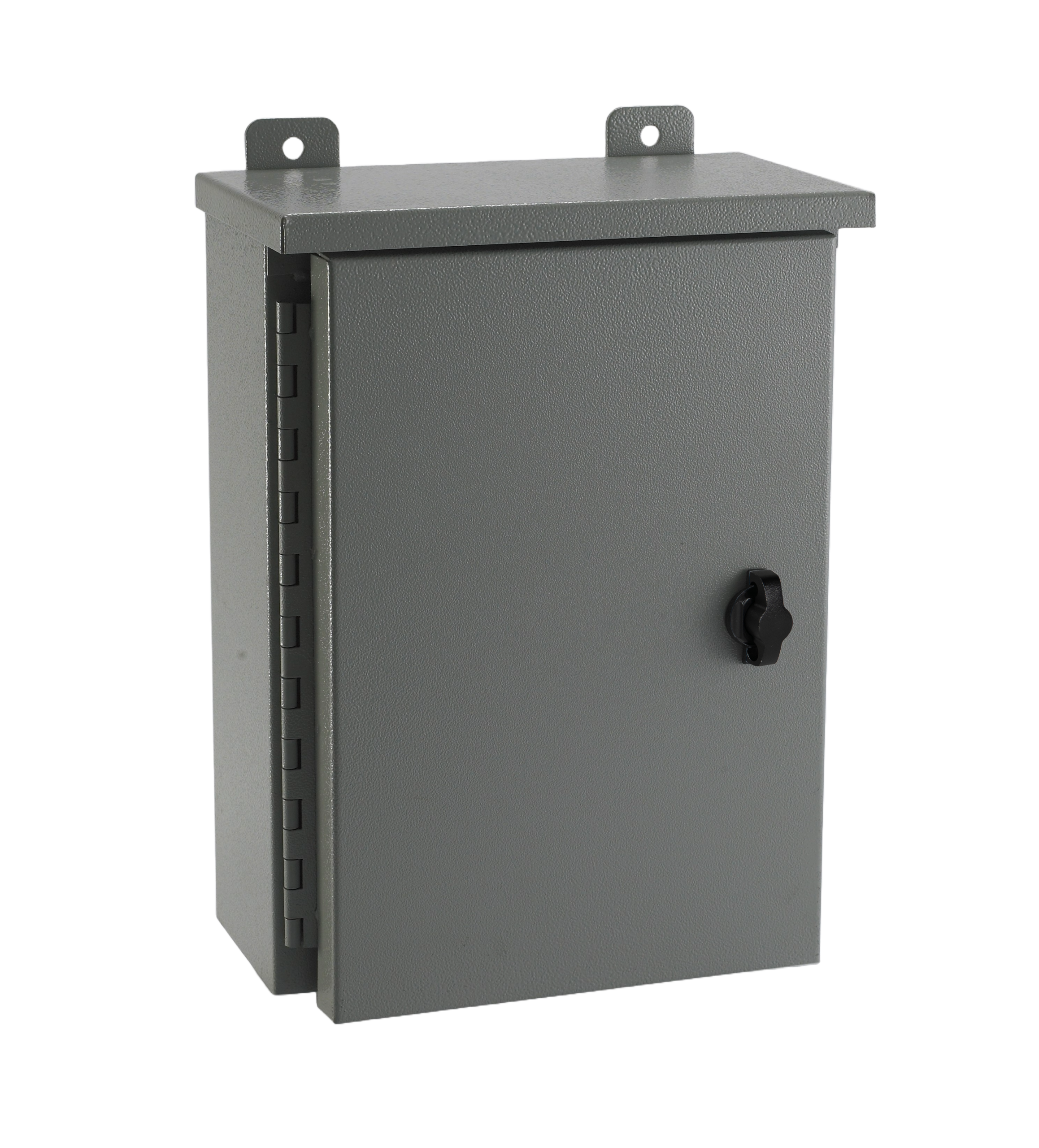

TYPE 3R PAINTED HINGED COVER ENCLOSURE WITH PADLOCKING WING KNOB

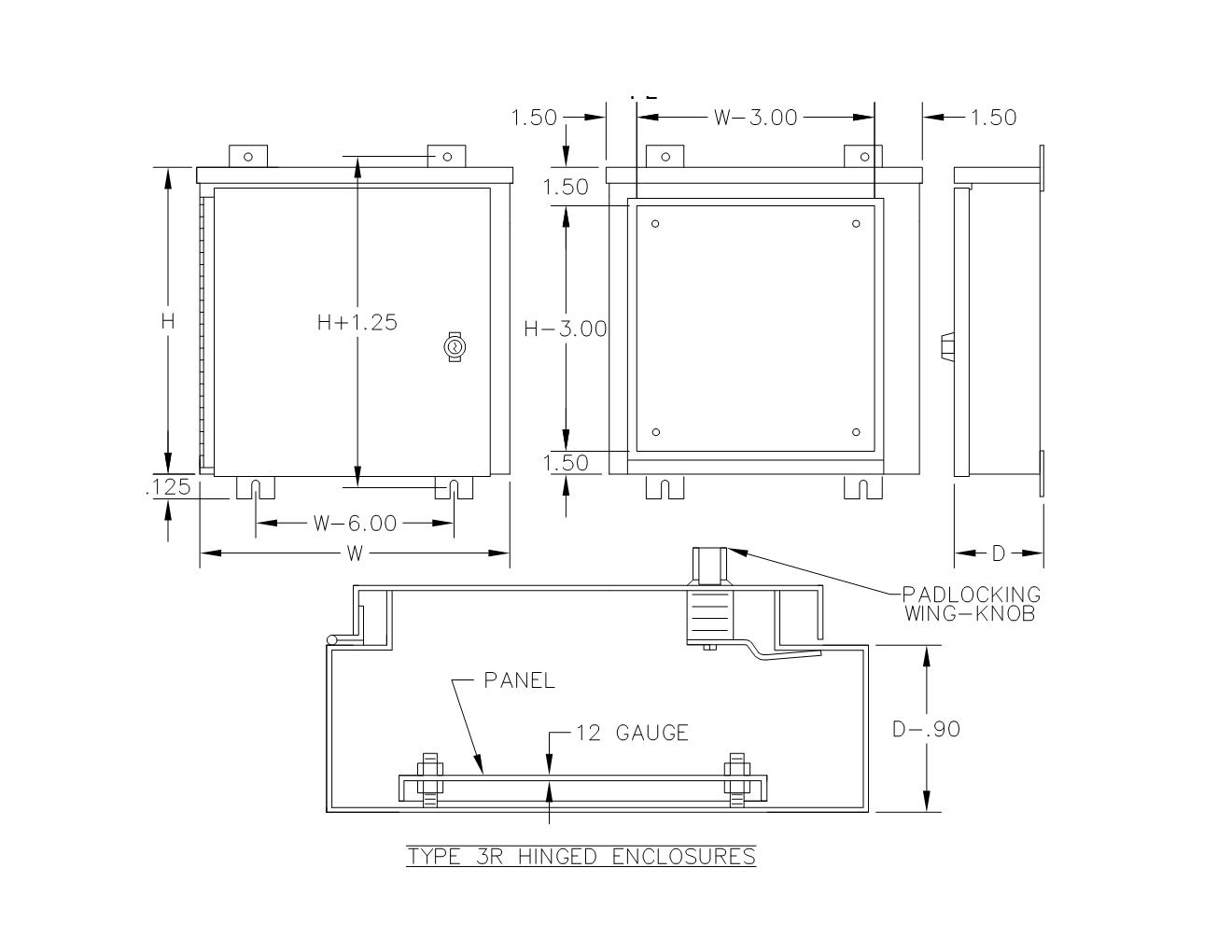

TYPE 3R PAINTED HINGED COVER ENCLOSURE WITH PADLOCKING WING KNOB - Image 2
,

TYPE 3R PAINTED HINGED COVER ENCLOSURE WITH PADLOCKING WING KNOB

Construction:
  • DRIP SHIELD TOP, FRONT, SIDES AND BACK PROTECT FROM FALLING RAIN, SNOW, OR SLEET
  • COVER FASTENED SECURELY WITH PADLOCKING WING KNOB
  • CONTINUOUS HINGE
  • STUDS PROVIDED FOR MOUNTING OPTIONAL PANEL
  • CODE GAUGE PAINT GRIP GALVANIZED STEEL
Finish:
  • ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL

Outdoor use to provide a degree of protection against falling rain; undamaged by the formation of ice on the enclosure.

DOWNLOAD SPEC SHEET

SKU: REPL Categories: ,

For large quantities or custom sizes call factory
Enclosure Size HxWxDCatalog NumberWeightUPC_12Digit
16x12x616126REPL20 lbs806101026112
16x16x616166REPL25 lbs806101026129
18x18x618186REPL30 lbs806101026150
20x16x620166REPL29 lbs806101026136
24x18x624186REPL37 lbs806101026143
24x24x624246REPL46 lbs806101026150
36x36x636366REPL88 lbs806101026167
16x16x816168REPL28 lbs
18x18x818188REPL33 lbs
20x20x820208REPL38 lbs806101026174
24x20x824208REPL44 lbs806101026181
24x24x824248REPL50 lbs806101026198
30x24x830248REPL60 lbs806101026204
30x30x830308REPL68 lbs
36x24x836248REPL69 lbs806101026211
36x30x836308REPL82 lbs806101026228
36x36x836368REPL95 lbs806101026235
24x24x10242410REPL54 lbs806101026242
30x30x10303010REPL77 lbs
36x24x10362410REPL75 lbs806101026259
36x36x10363610REPL101 lbs806101026266
36x24x11362411REPL78 lbs806101034582
24x24x12242412REPL59 lbs806101034254
30x30x12303012REPL82 lbs806101026273
36x24x12362412REPL80 lbs806101026280
36x30x12363012REPL94 lbs806101026297
36x36x12363612REPL108 lbs806101026303
42x30x12423012REPL106 lbs806101026310
42x36x12423612REPL122 lbs806101026327
48x36x12483612REPL136 lbs806101026334
60x36x12603612REPL166 lbs806101026341
36x36x14363614REPL115 lbs
40x32x14403214REPL114 lbs806101034278
54x32x14543214REPL145 lbs806101034261
36x36x16363616REPL121 lbs
36x36x24363624REPL148 lbs
