Type 4, Type 12, Products

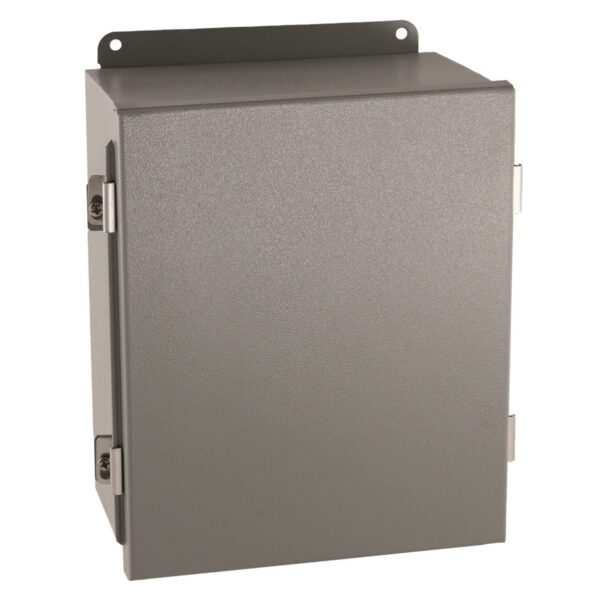

TYPE 4 & 12 PAINTED GALV JIC CLAMP COVER BOX W/ PANEL
Construction:- SCREW CLAMPS ON SIDES ARE QUICK AND EASY TO OPERATE
- EXTERNAL MOUNTING TABS PROVIDED FOR EASY INSTALLATION
- STEEL, PAINTED WHITE BACK PANEL INCLUDED
- OIL RESISTANT GASKET
- SEAMS CONTINUOUSLY WELDED AND GROUND SMOOTH
- CODE GAUGE PAINT GRIP GALVANIZED STEEL
- ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL
Satisfies both UL Type 4 and 12 intended uses. Type 4-Either indoor or outdoor use to provide a degree of protection against falling rain, splashing water, hose directed water; undamaged by the formation of ice on the enclosure. Type 12-Indoor use to provide a degree of protection against dust, dirt, fiber, flyings, dripping water and external condensation of non corrosive liquids.
For large quantities or custom sizes call factory

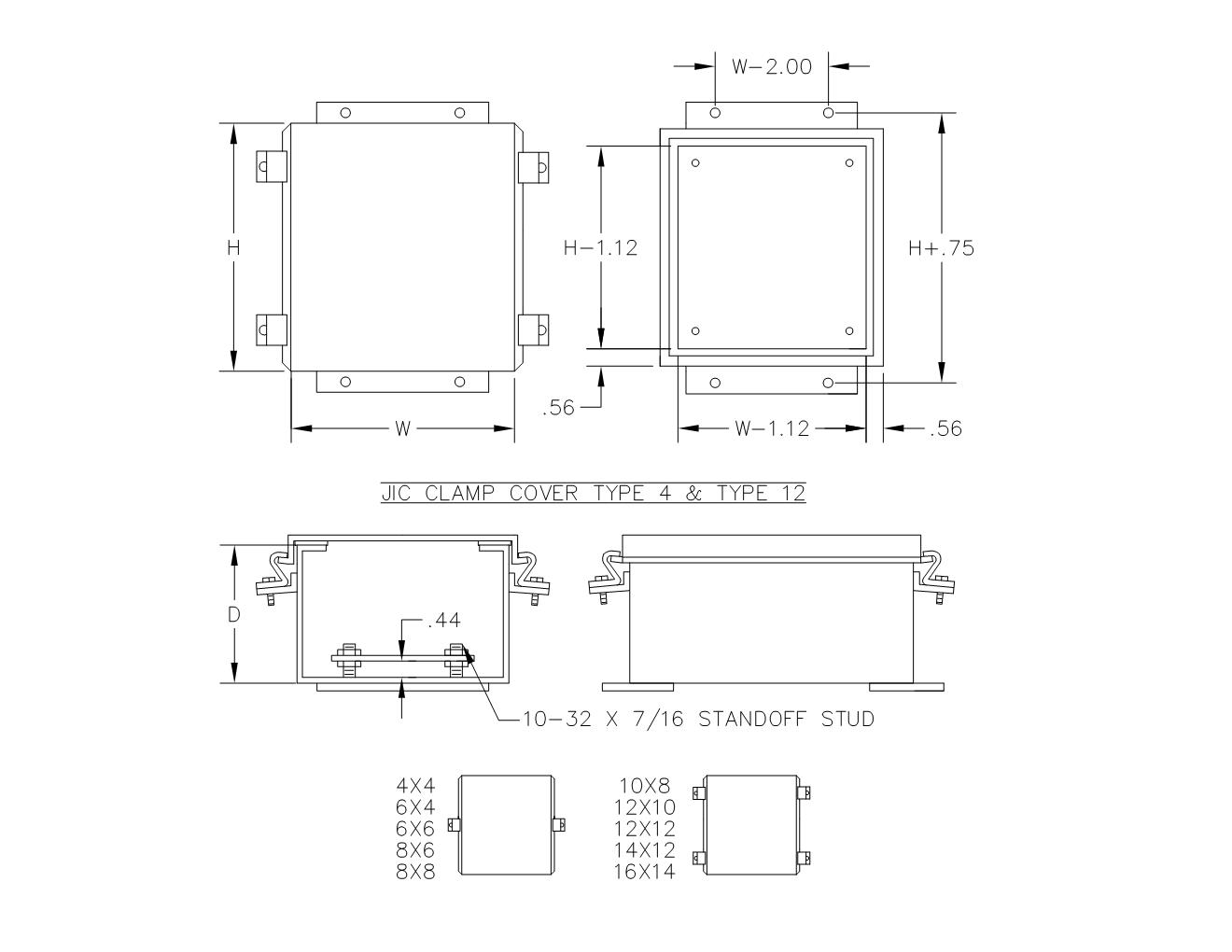

| Enclosure Size HxWxD | Catalog Number | Weight | UPC_12Digit |
|---|---|---|---|
| 4x4x3 | JCC443N412 | 3 lbs | 806101034162 |
| 6x4x4 | JCC644N412 | 4 lbs | 806101034179 |
| 6x6x4 | JCC664N412 | 5 lbs | 806101034186 |
| 8x6x4 | JCC864N412 | 6 lbs | 806101034193 |
| 10x8x4 | JCC1084N412 | 9 lbs | 806101034209 |
| 12x10x6 | JCC12106N412 | 14 lbs | 806101034216 |
| 14x12x6 | JCC14126N412 | 18 lbs | 806101034223 |
| 16x14x6 | JCC16146N412 | 21 lbs | 806101034230 |
