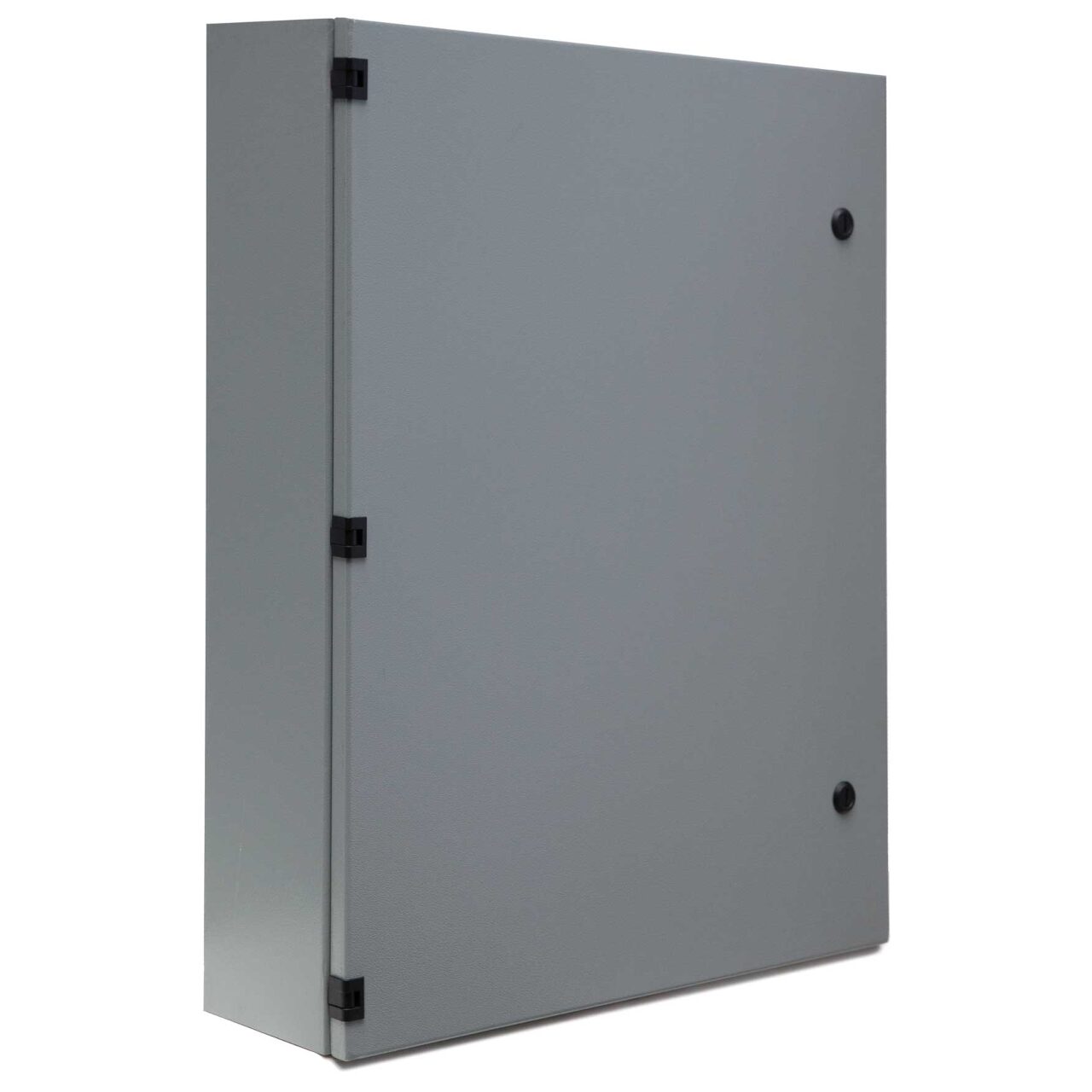

TYPE 4 & 12 SINGLE DOOR PAINTED HINGED ENCLOSURE W/ COINTURN LATCH(S)
TYPE 4 & 12 SINGLE DOOR PAINTED HINGED ENCLOSURE W/ COINTURN LATCH(S) - Image 2
TYPE 4 & 12 SINGLE DOOR PAINTED HINGED ENCLOSURE W/ COINTURN LATCH(S) - Image 3
,
, ,

TYPE 4 & 12 SINGLE DOOR PAINTED HINGED ENCLOSURE W/ COINTURN LATCH(S)

Construction:
  • NEARLY FLUSH QUARTER TURN LATCH , HOLDS DOOR SECURELY CLOSED
  • OFFSET BODY ALLOWS COVER TO BE FLUSH WITH BOX
  • SPECIAL HIDDEN BUTT HINGE WITH REMOVABLE CAPTIVE PIN ALLOWS FOR EASY REMOVAL AND INTERCHANGING OF DOORS
  • OIL-RESISTANT DOOR GASKET
  • CODE GAUGE PAINT GRIP GALVANIZED STEEL
  • STUDS PROVIDED FOR MOUNTING OPTIONAL PANEL
Finish:
  • ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL

Satisfies both UL Type 4 and 12 intended uses. Type 4-Either indoor or outdoor use to provide a degree of protection against falling rain, splashing water, hose directed water; undamaged by the formation of ice on the enclosure. Type 12-Indoor use to provide a degree of protection against dust, dirt, fiber, flyings, dripping water and external condensation of non corrosive liquids.

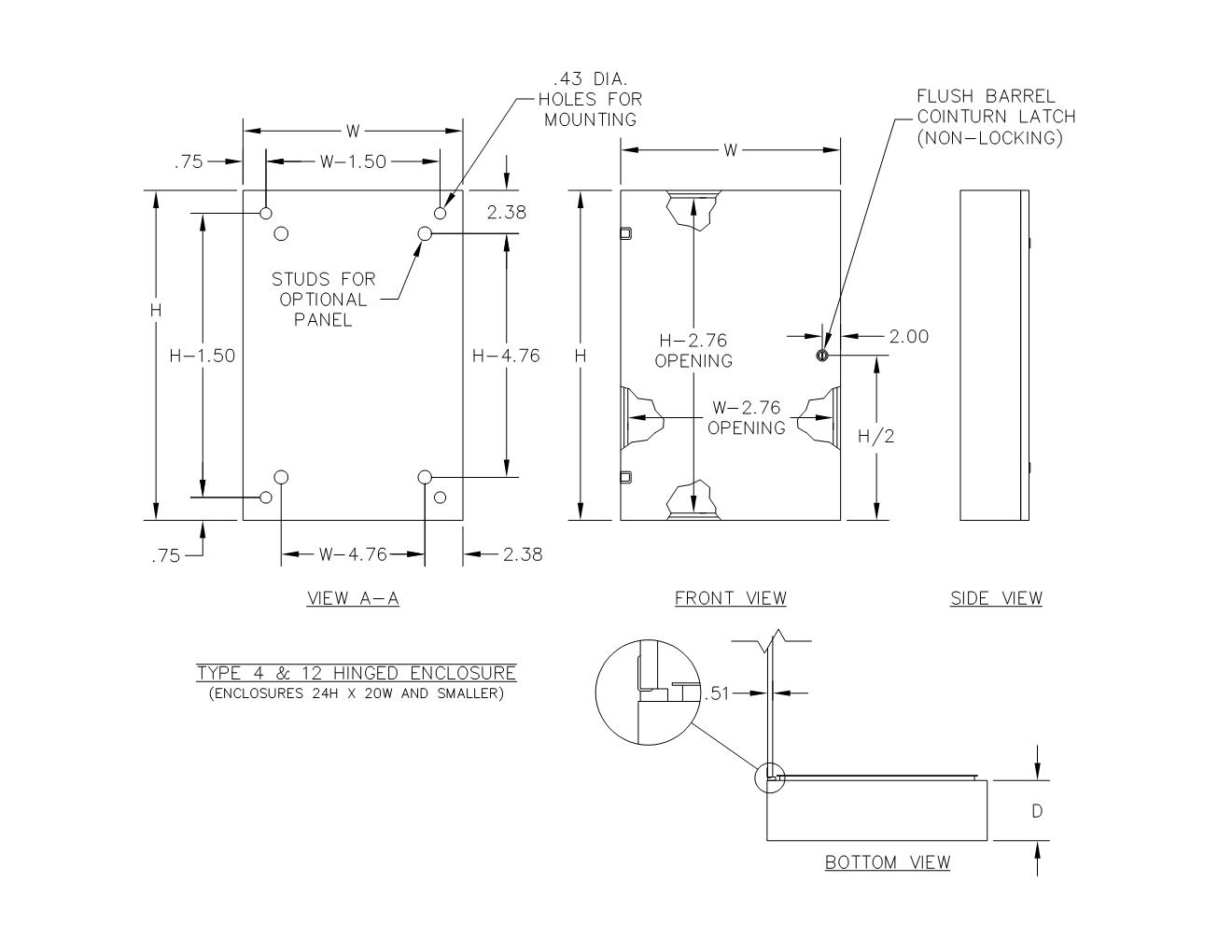

DOWNLOAD SPEC SHEET 24″ HIGH AND SMALLER

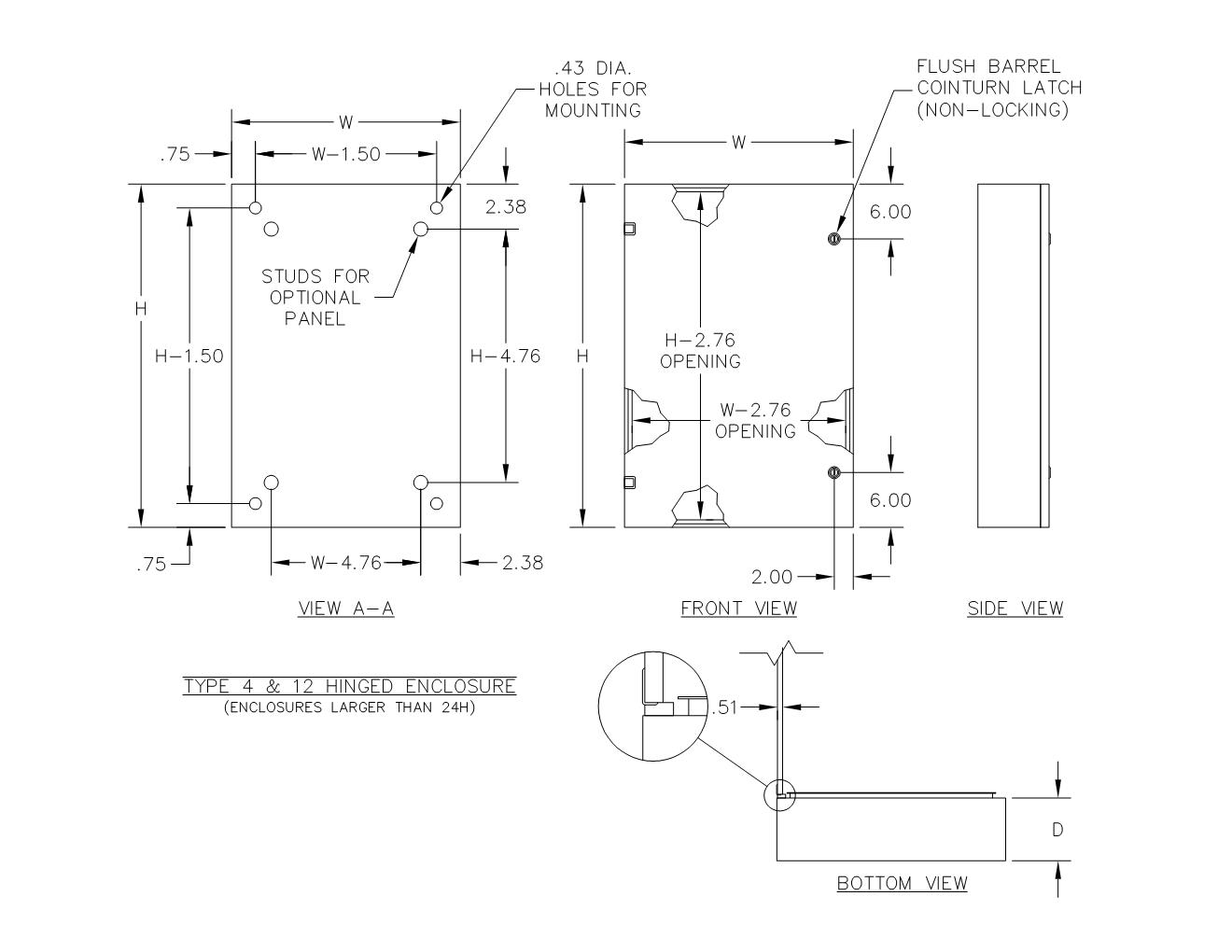

DOWNLOAD SPEC SHEET 25″ HIGH AND LARGER

SKU: N412 Categories: , ,

For large quantities or custom sizes call factory
Enclosure Size HxWxDCatalog NumberWeightUPC_12Digit
12x12x612126N41214 lbs806101026976
16x12x616126N41220 lbs806101027003
16x16x616166N41225 lbs806101027034
16x20x616206N41230 lbs806101027065
20x16x620166N41230 lbs806101027096
24x12x624126N41228 lbs806101027171
20x20x620206N41235 lbs806101027133
24x16x624166N41228 lbs806101027195
24x20x624206N41240 lbs806101027232
24x24x624246N41246 lbs806101027270
30x20x630206N41248 lbs806101027324
30x24x630246N41253 lbs806101027362
30x30x630306N41262 lbs806101027409
36x24x636246N41264 lbs806101027447
36x30x636306N41276 lbs806101027478
36x36x636366N412122 lbs806101027515
12x12x812128N41218 lbs806101026983
16x12x816128N41223 lbs806101027010
16x16x816168N41228 lbs806101027041
16x20x816208N41233 lbs806101027072
20x16x820168N41233 lbs806101027102
20x20x820208N41238 lbs806101027140
24x16x824168N41238 lbs806101027201
20x24x820248N41244 lbs806101027164
24x20x824208N41244 lbs806101027249
24x24x824248N41251 lbs806101027287
30x20x830208N41253 lbs806101027331
24x30x824308N41257 lbs806101027300
30x24x830248N41260 lbs806101027379
30x30x830308N41268 lbs806101027416
36x24x836248N41270 lbs806101027454
36x30x836308N41282 lbs806101027485
36x36x836368N41295 lbs806101027522
16x12x10161210N41226 lbs806101026990
16x16x10161610N412207 lbs806101027027
16x20x10162010N41235 lbs806101027058
20x16x10201610N41236 lbs806101027089
20x20x10202010N41242 lbs806101027119
24x16x10241610N41242 lbs806101027188
20x24x10202410N41248 lbs806101027157
24x20x10242010N41248 lbs806101027218
24x20x10242012N41252 lbs806101027225
24x24x10242410N41255 lbs806101027256
30x20x10302010N41257 lbs806101027317
24x30x10243010N41264 lbs806101027294
30x24x10302410N41265 lbs806101027348
30x30x10303010N41277 lbs806101027386
36x24x10362410N41271 lbs806101027423
36x30x10363010N41288 lbs806101027461
36x36x10363610N412102 lbs806101027492
20x20x12202012N41242 lbs806101027126
24x24x12242412N41259 lbs806101027263
30x24x12302412N41270 lbs806101027355
30x30x12303012N41282 lbs806101027393
36x24x12362412N41280 lbs806101027430
36x36x12363612N412108 lbs806101027508
