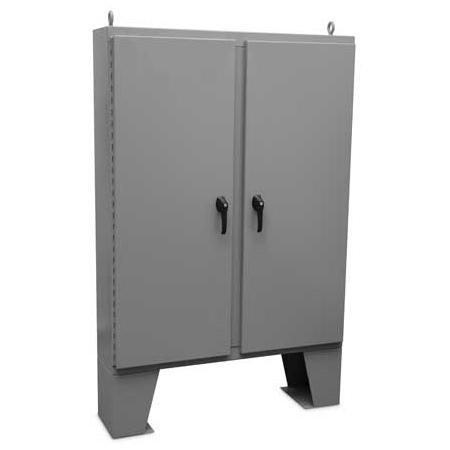

TYPE 4 PAINTED DOUBLE DOOR FLOOR MOUNT ENCLOSURE WITH 3-POINT LATCH & KEYLOCKING/PADLOCKING HANDLE
TYPE 4 PAINTED DOUBLE DOOR FLOOR MOUNT ENCLOSURE WITH 3-POINT LATCH & KEYLOCKING/PADLOCKING HANDLE - Image 2
,

TYPE 4 PAINTED DOUBLE DOOR FLOOR MOUNT ENCLOSURE WITH 3-POINT LATCH & KEYLOCKING/PADLOCKING HANDLE

Construction:
  • 12 INCH FLOOR STANDS WELDED TO ENCLOSURE
  • UNI-STRUT PROVIDED FOR MOUNTING OPTIONAL PANEL
  • OIL-RESISTANT DOOR GASKET
  • LIFTING EYES FOR EASY HANDLING
  • 12 GAUGE PAINT GRIP GALVANNEAL STEEL
  • SEAMS CONTINUOUSLY WELDED AND GROUND SMOOTH
  • LATCH RODS HAVE ROLLERS FOR EASIER DOOR CLOSING
  • HEAVY GAUGE CONTINUOUS HINGE
  • 3 POINT LATCHING MECHANISM OPERATED BY KEYLOCKING / PADLOCKING L-HANDLE
  • PRINT POCKET
Finish:
  • ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL

Either indoor or outdoor use to provide a degree of protection against falling rain, splashing water, hose directed water; undamaged by the formation of ice on the enclosure.

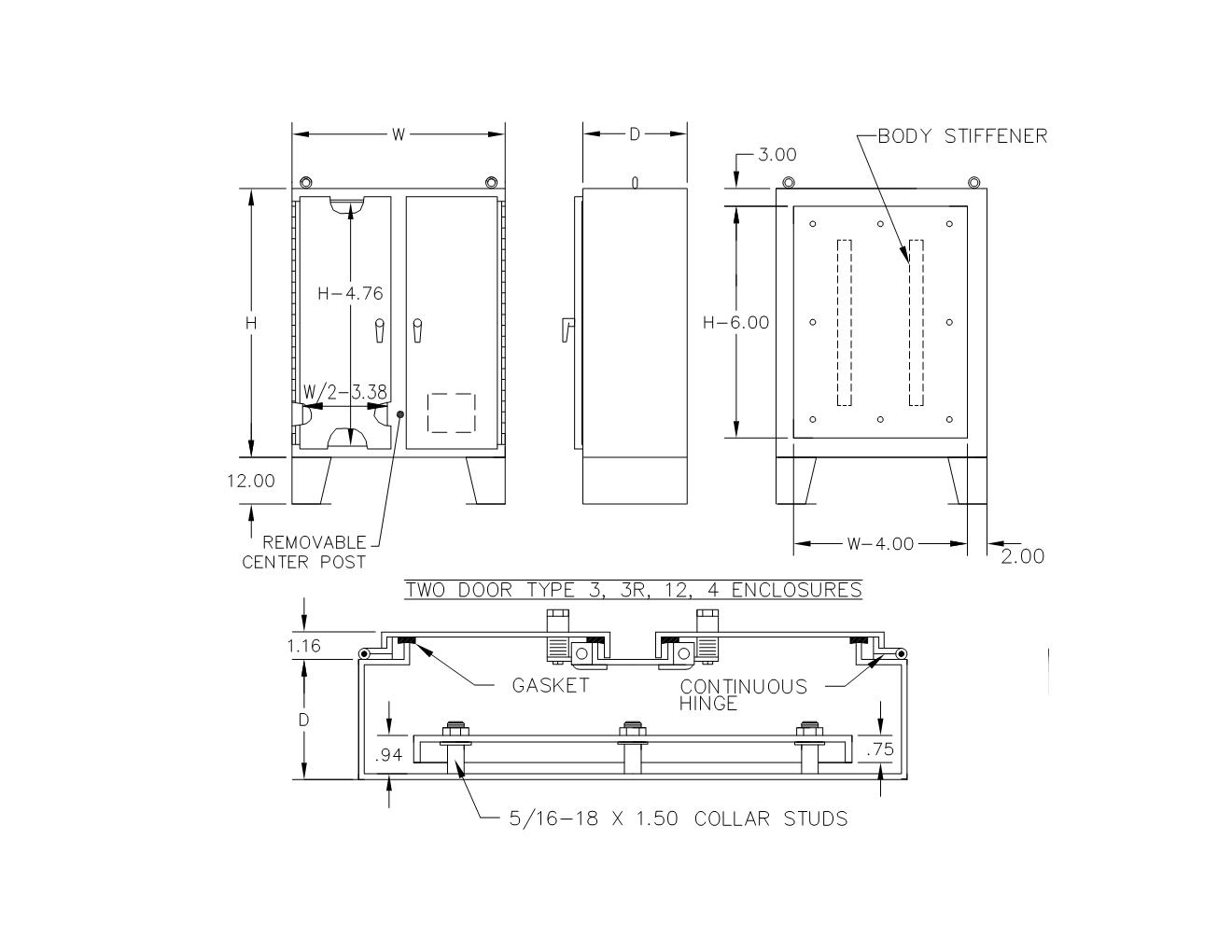

DOWNLOAD SPEC SHEET

SKU: DN43PT Categories: ,

For large quantities or custom sizes call factory
Enclosure Size HxWxDCatalog NumberWeightUPC_12Digit
62x48x8D62488N43PT254 lbs806101034308
62x48x10D624810N43PT275 lbs806101031611
62x60x10D626010N43PT319 lbs806101034315
74x60x10D746010N43PT377 lbs806101034322
74x72x10D747210N43PT461 lbs806101034339
62x48x12D624812N43PT284 lbs806101031680
62x60x12D626012N43PT347 lbs806101031697
74x60x12D746012N43PT403 lbs806101031703
74x72x12D747212N43PT469 lbs806101031710
62x48x16D624816N43PT308 lbs806101034346
62x60x16D626016N43PT367 lbs806101034353
74x60x16D746016N43PT390 lbs806101034360
74x72x16D747216N43PT495 lbs806101034377
62x48x18D624818N43PT330 lbs806101031727
62x60x18D626018N43PT392 lbs806101031628
74x60x18D746018N43PT453 lbs806101031635
74x72x18D747218N43PT524 lbs806101031642
62x48x20D624820N43PT335 lbs806101034384
62x60x20D626020N43PT407 lbs806101034438
74x60x20D746020N43PT423 lbs806101034391
74x72x20D747220N43PT531 lbs806101034407
62x48x24D624824N43PT362 lbs806101034414
62x60x24D626024N43PT427 lbs806101034421
74x72x24D747224N43PT579 lbs806101031734
