Products, Type 4

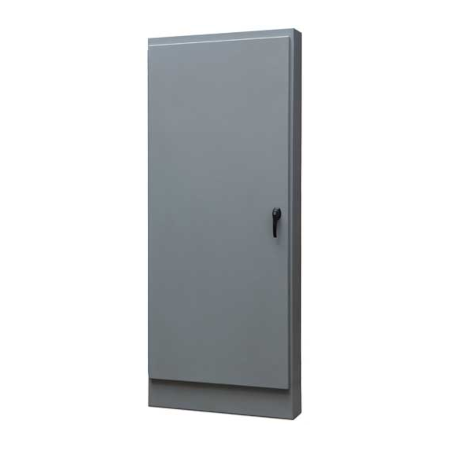

TYPE 4 PAINTED FREESTANDING SINGLE DOOR ENCLOSURE WITH 3 POINT LATCH & KEYLOCKING/PADLOCKING HANDLE
Construction:- 3 POINT LATCHING MECHANISM OPERATED BY KEYLOCKING / PADLOCKABLE HANDLE
- MEETS INDUSTRY STANDARDS FOR TYPE 12 USE
- OPTIONAL UNI-STRUT OR STUDS PROVIDED FOR MOUNTING BACK PANEL
- REMOVABLE PRINT POCKET
- OIL-RESISTANT DOOR GASKET
- SEAMS CONTINUOUSLY WELDED AND GROUND SMOOTH
- HEAVY GAUGE CONTINUOUS HINGE
- 12 GAUGE PAINT GRIP GALVANNEAL STEEL
- LIFTING EYES FOR EASY HANDLING
- ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL
Either indoor or outdoor use to provide a degree of protection against falling rain, splashing water, hose directed water; undamaged by the formation of ice on the enclosure.
For large quantities or custom sizes call factory
| Enclosure Size HxWxD | Catalog Number | Weight | UPC_12Digit |
|---|---|---|---|
| 60x24x18 | F602418N43PT | 214 lbs | 806101033721 |
| 72x24x18 | F722418N43PT | 234 lbs | 806101031871 |
| 72x30x18 | F723018N43PT | 269 lbs | 806101031888 |
| 72x36x18 | F723618N43PT | 303 lbs | 806101031895 |
| 90x24x20 | F902420N43PT | 299 lbs | 806101031901 |
| 90x36x20 | F903620N43PT | 406 lbs | 806101031918 |
| 72x24x24 | F722424N43PT | 270 lbs | 806101031932 |
| 60x36x24 | F603624N43PT | 326 lbs | 806101033738 |
| 72x30x24 | F723024N43PT | 307 lbs | 806101031949 |
| 72x36x24 | F723624N43PT | 344 lbs | 806101031956 |
| 90x36x24 | F903624N43PT | 415 lbs | 806101031963 |
| 72x36x30 | F723630N43PT | 385 lbs | 806101031970 |
| 72x36x36 | F723636N43PT | 425 lbs | 806101031987 |
| 90x36x36 | F903636N43PT | 509 lbs | 806101031994 |
