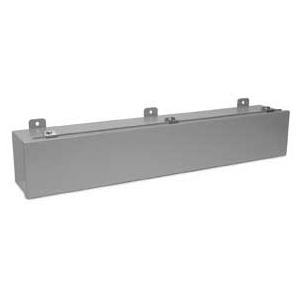

TYPE 4 PAINTED JIC-HINGED TROUGH

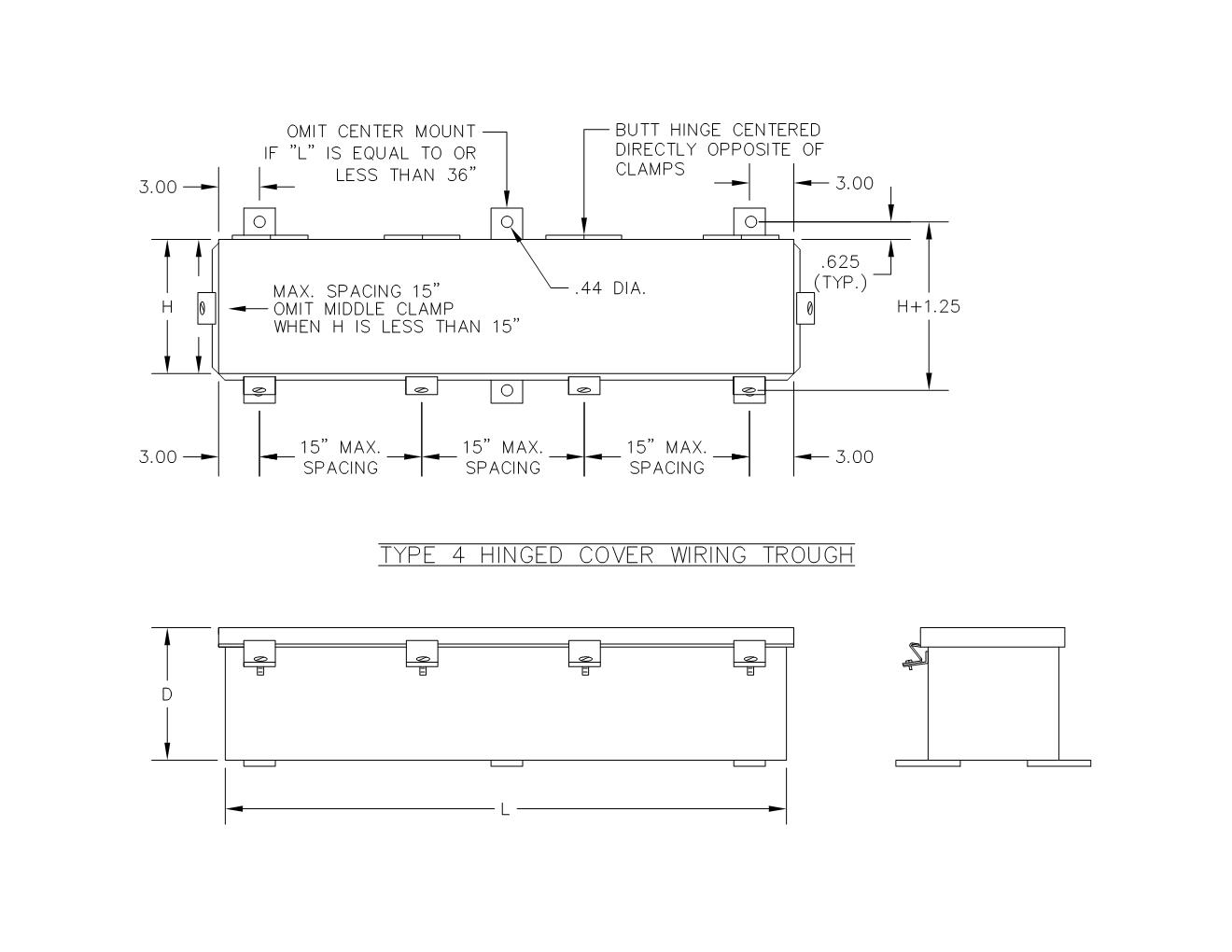

TYPE 4 PAINTED JIC-HINGED TROUGH - Image 2
,

TYPE 4 PAINTED JIC-HINGED TROUGH

Construction:
  • BUTT HINGES
  • SCREW CLAMPS ARE QUICK AND EASY TO OPERATE
  • EXTERNAL MOUNTING TABS FOR EASY INSTALLATION
  • CODE GAUGE PAINT GRIP GALVANIZED STEEL
  • SEAMS CONTINUOUSLY WELDED AND GROUND SMOOTH
  • OIL RESISTANT GASKET
Finish:
  • ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL

Either indoor or outdoor use to provide a degree of protection against falling rain, splashing water, hose directed water; undamaged by the formation of ice on the enclosure.

DOWNLOAD SPEC SHEET

Select your size
SKU: JON4 Categories: ,

For large quantities or custom sizes call factory
Trough Size LxHxDCatalog NumberWeightUPC_12Digit
12x4x41-44JON46 lbs806101033950
24x4x42-44JON413 lbs806101033967
36x4x43-44JON415 lbs806101033974
48x4x44-44JON421 lbs806101033981
60x4x45-44JON426 lbs806101033998
72x4x46-44JON431 lbs806101034001
12x6x61-66JON49 lbs806101034018
24x6x62-66JON417 lbs806101034025
36x6x63-66JON424 lbs806101034032
48x6x64-66JON431 lbs806101034049
60x6x65-66JON438 lbs806101034056
72x6x66-66JON442 lbs806101034063
12x8x81-88JON413 lbs806101034070
24x8x82-88JON422 lbs806101034087
36x8x83-88JON431 lbs806101034094
48x8x84-88JON441 lbs806101034100
60x8x85-88JON450 lbs806101034117
24x12x122-1212JON437 lbs806101034124
36x12x123-1212JON441 lbs806101034131
48x12x124-1212JON462 lbs806101034148
60x12x125-1212JON476 lbs806101034155
72x12x126-1212JON491 lbs
