Type 4X, Products

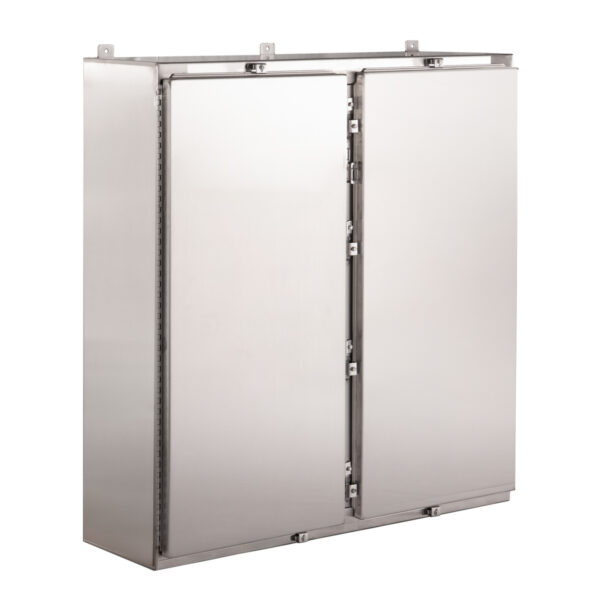

TYPE 4X 304 STAINLESS STEEL HINGED DOUBLE DOOR WALL MOUNT ENCLOSURE W/ CLAMPS
Construction:- SEAMS CONTINUOUSLY WELDED AND GROUND SMOOTH
- DOOR CLAMPS ON THREE SIDES OF EACH DOOR ASSURE WATER TIGHT SEAL
- CODE GAUGE TYPE 304 STAINLESS STEEL
- REMOVABLE CENTERPOST FOR EASY PANEL INSTALLATION
- OIL RESISTANT GASKET
- TONGUE AND HASP FOR PADLOCKING
- STUDS PROVIDED FOR MOUNTING OPTIONAL PANEL
- HEAVY GAUGE CONTINUOUS HINGE
- NUMBER 3 BRUSHED FINISH
Either indoor or outdoor use to provide a degree of protection against falling rain, splashing water, hose directed water; undamaged by the formation of ice on the enclosure; resists corrosion.
For large quantities or custom sizes call factory
| Enclosure Size HxWxD | Catalog Number | Weight | UPC_12Digit |
|---|---|---|---|
| 24x42x8 | SDW24428N4X | 83 lbs | 806101034452 |
| 24x48x8 | SDW24488N4X | 102 lbs | 806101034469 |
| 30x42x10 | SDW304210N4X | 105 lbs | 806101034476 |
| 30x48x10 | SDW304810N4X | 118 lbs | 806101034483 |
| 30x60x10 | SDW306010N4X | 143 lbs | 806101034490 |
| 36x42x12 | SDW364212N4X | 129 lbs | 806101034506 |
| 36x48x12 | SDW364812N4X | 151 lbs | 806101034513 |
| 42x42x12 | SDW424212N4X | 141 lbs | 806101034537 |
| 42x48x12 | SDW424812N4X | 177 lbs | 806101034544 |
| 48x48x12 | SDW484812N4X | 247 lbs | 806101034568 |
| 36x60x12 | SDW366012N4X | 126 lbs | 806101034520 |
| 42x60x12 | SDW426012N4X | 267 lbs | 806101034551 |
