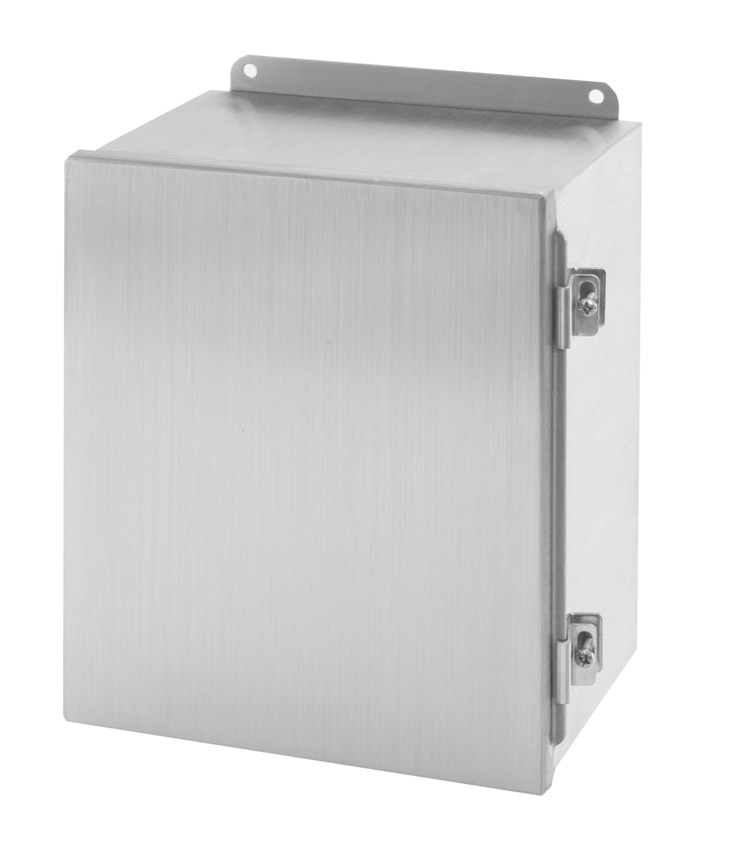

TYPE 4X,12 304 STAINLESS STEEL HINGED COVER ENCLOSURE W/ CLAMPS
TYPE 4X,12 304 STAINLESS STEEL HINGED COVER ENCLOSURE W/ CLAMPS - Image 2
,

TYPE 4X,12 304 STAINLESS STEEL HINGED COVER ENCLOSURE W/ CLAMPS

Construction:
  • SEAMS CONTINUOUSLY WELDED AND GROUND SMOOTH
  • CODE GAUGE TYPE 304 STAINLESS STEEL
  • SCREW CLAMPS ARE QUICK AND EASY TO OPERATE
  • OIL RESISTANT GASKET
  • STUDS PROVIDED FOR MOUNTING OPTIONAL PANEL
Finish:
  • NUMBER 3 BRUSHED FINISH

Satisfies both UL Type 4X and 12 intended uses. Type 4X-Either indoor or outdoor use to provide a degree of protection against falling rain, splashing water, hose directed water; undamaged by the formation of ice on the enclosure; resists corrosion. Type 12-Indoor use to provide a degree of protection against dust, dirt, fiber, flyings, dripping water and external condensation of non corrosive liquids.

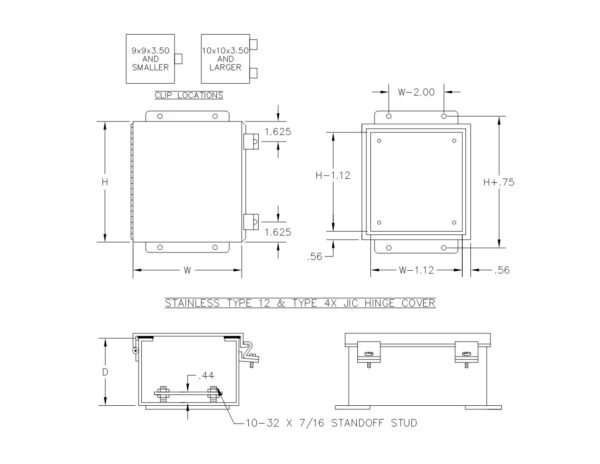

DOWNLOAD SPEC SHEET

SKU: SJHN4X12 Categories: ,

For large quantities or custom sizes call factory
Enclosure Size HxWxDCatalog NumberWeightUPC_12Digit
4x4x4SJH444N4X123 lbs806101031420
6x6x4SJH664N4X125 lbs806101018797
8x6x4SJH864N4X126 lbs806101018803
8x8x4SJH884N4X128 lbs806101018810
10x8x4SJH1084N4X129 lbs806101018827
10x10x4SJH10104N4X1211 lbs806101031345
12x12x4SJH12124N4X1214 lbs806101031376
6x6x6SJH666N4X126 lbs806101031444
8x8x6SJH886N4X129 lbs806101031475
10x8x6SJH1086N4X1211 lbs806101031352
12x8x6SJH1286N4X1213 lbs806101033141
10x10x6SJH10106N4X1213 lbs806101031338
12x10x6SJH12106N4X1214 lbs806101018834
12x12x6SJH12126N4X1216 lbs806101018841
14x12x6SJH14126N4X1218 lbs806101018858
16x14x6SJH16146N4X1222 lbs806101018865
12x12x8SJH12128N4X1219 lbs806101031390
14x12x8SJH14128N4X1221 lbs806101033158
16x14x8SJH16148N4X1225 lbs806101033134
12x12x12SJH121212N4X1222 lbs
