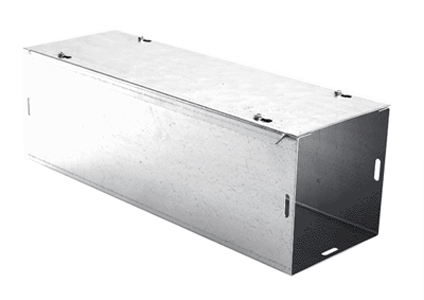

TYPE 1 GALVANIZED SCREW COVER WIREWAY NO KO'S
,

TYPE 1 GALVANIZED SCREW COVER WIREWAY NO KO’S

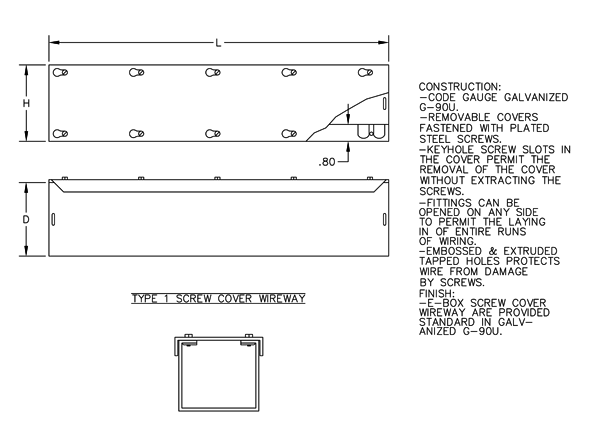

Construction:
  • REMOVABLE COVER FASTENED WITH PLATED STEEL SCREWS
  • CODE GAUGE G-60 or G-90 GALVANIZED STEEL
  • KEYHOLE SCREW SLOTS IN THE CORNER PERMIT THE REMOVAL OF THE COVER WITHOUT EXTRACTING THE SCREWS
  • EMBOSSED AND EXTRUDED TAPPED HOLES PROTECTS WIRE FROM DAMAGE BY SCREWS
  • AVAILABLE IN FLAT COVER UPON REQUEST
Finish:
  • TYPE 1 SCREW COVER WIREWAY ARE PROVIDED IN G-60 or G-90 GALVANIZED STEEL

Indoor use primarily to provide protection against contact with the enclosed equipment and against a limited amount of falling dirt.

DOWNLOAD SPEC SHEET

SKU: SW Categories: ,

For large quantities or custom sizes call factory
Wireway Size LxHxDCatalog NumberWeightUPC_12Digit
12x4x41-44SW5 lbs806101008309
18x4x41.6-44SW7 lbs
24x4x42-44SW10 lbs806101008316
36x4x43-44SW15 lbs806101008323
48x4x44-44SW20 lbs806101008330
60x4x45-44SW25 lbs806101008347
72x4x46-44SW29 lbs806101008354
84x4x47-44SW34 lbs806101008361
96x4x48-44SW39 lbs806101008378
119x4x410-44SW49 lbs806101008385
48x6x44-64SW25 lbs
119x6x410-64SW54 lbs
12x6x61-66SW7 lbs806101008491
18x6x61.6-66SW10 lbs
24x6x62-66SW14 lbs806101008507
30x6x62.6-66SW17 lbs
36x6x63-66SW21 lbs806101008514
48x6x64-66SW28 lbs806101008521
60x6x65-66SW35 lbs806101008538
72x6x66-66SW42 lbs806101008545
84x6x67-66SW50 lbs806101008552
96x6x68-66SW57 lbs806101008569
119x6x610-66SW71 lbs806101008576
24x12x62-126SW20 lbs
36x12x63-126SW35 lbs
36x16x63-166SW64 lbs
12x8x81-88SW9 lbs806101008682
18x8x81.6-88SW13 lbs
24x8x82-88SW19 lbs806101008699
36x8x83-88SW28 lbs806101008705
48x8x84-88SW37 lbs806101008712
60x8x85-88SW46 lbs806101008729
72x8x86-88SW56 lbs806101008736
84x8x87-88SW65 lbs806101008743
96x8x88-88SW74 lbs806101008750
119x8x810-88SW93 lbs806101008767
72x12x86-128SW74 lbs
12x10x101-1010SW11 lbs806101008873
24x10x102-1010SW23 lbs806101008880
30x10x102.6-1010SW28 lbs
36x10x103-1010SW34 lbs806101008897
48x10x104-1010SW46 lbs806101008903
60x10x105-1010SW57 lbs806101008910
72x10x106-1010SW69 lbs806101008927
84x10x107-1010SW80 lbs806101008934
96x10x108-1010SW91 lbs806101008941
119x10x1010-1010SW114 lbs806101008958
12x12x121-1212SW14 lbs806101009061
24x12x122-1212SW27 lbs806101009078
36x12x123-1212SW41 lbs806101009085
48x12x124-1212SW54 lbs806101009092
60x12x125-1212SW68 lbs806101009108
72x12x126-1212SW82 lbs806101009115
84x12x127-1212SW95 lbs806101009122
96x12x128-1212SW109 lbs806101009139
119x12x1210-1212SW136 lbs806101009146
24x14x142-1414SW31 lbs
36x14x143-1414SW56 lbs
48x14x144-1414SW72 lbs
72x14x146-1414SW96 lbs
84x14x147-1414SW111.16 lbs
96x14x148-1414SW135.38 lbs
119x16x1210-1612SW152 lbs
119x14x1410-1414SW152 lbs
119x18x1210-1812SW162 lbs
48x18x124-1812SW78 lbs
96x18x128-1812SW144.6 lbs
24x16x162-1616SW35 lbs
36x16x163-1616SW64 lbs
48x16x164-1616SW83 lbs
60x16x165-1616SW91 lbs
72x16x166-1616SW75 lbs
96x16x168-1616SW154.72 lbs
119x16x1610-1616SW173 lbs
24x18x182-1818SW40 lbs
36x18x183-1818SW72 lbs
48x18x184-1818SW93 lbs
60x18x185-1818SW103 lbs
72x18x186-1818SW85 lbs
84x18x187-1818SW142.92 lbs
90x18x187.6-1818SW64.8 lbs
96x18x188-1818SW174.06 lbs
119x18x1810-1818SW195 lbs
36x24x243-2424SW96 lbs
48x24x244-2424SW124 lbs
60x24x245-2424SW137 lbs
72x24x246-2424SW113 lbs
96x24x248-2424SW232.08 lbs
108x24x249-2424SW245.16 lbs
119x24x2410-2424SW260 lbs
