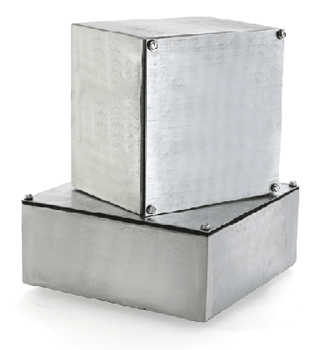

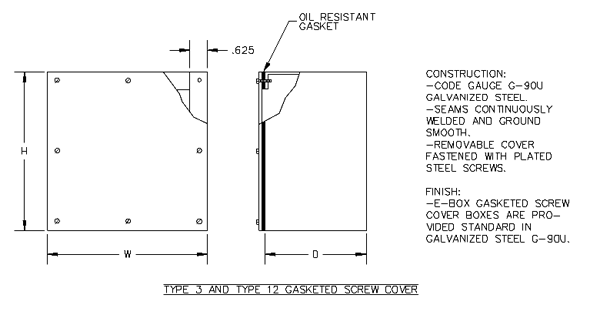

TYPE 3 & 12 PAINTED GASKETED SCREW COVER BOX
Construction:- CODE GAUGE PAINT GRIP GALVANIZED STEEL
- SEAMS CONTINUOUSLY WELDED AND GROUND SMOOTH
- GASKETED REMOVEABLE COVER FASTENED WITH PLATED STEEL SCREWS
- ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL
Satisfies both UL Type 3 and 12 intended uses. Type 3-Outdoor use to provide a degree of protection against wind blown dust and wind blown rain; undamaged by the formation of ice on the enclosure. Type 12-Indoor use to provide a degree of protection against dust, dirt, fiber, flyings, dripping water and external condensation of non corrosive liquids.
For large quantities or custom sizes call factory
| Enclosure Size HxWxD | Catalog Number | Weight | UPC_12Digit |
|---|---|---|---|
| 4x4x4 | 444SG | 3 lbs | 806101013402 |
| 6x6x4 | 664SG | 4 lbs | 806101013419 |
| 8x6x4 | 864SG | 5 lbs | 806101013426 |
| 8x8x4 | 884SG | 7 lbs | 806101013433 |
| 10x8x4 | 1084SG | 8 lbs | 806101013440 |
| 10x10x4 | 10104SG | 9 lbs | 806101013457 |
| 12x10x4 | 12104SG | 10 lbs | 806101013464 |
| 12x12x4 | 12124SG | 12 lbs | 806101013471 |
| 16x16x4 | 16164SG | 19 lbs | |
| 18x18x4 | 18184SG | 23 lbs | |
| 6x6x6 | 666SG | 5 lbs | 806101013488 |
| 8x8x6 | 886SG | 8 lbs | 806101013495 |
| 12x6x6 | 1266SG | 9 lbs | 806101013501 |
| 10x10x6 | 10106SG | 11 lbs | 806101013518 |
| 14x8x6 | 1486SG | 12 lbs | |
| 12x12x6 | 12126SG | 15 lbs | 806101013525 |
| 15x12x6 | 15126SG | 17 lbs | 806101013532 |
| 15x15x6 | 15156SG | 20 lbs | 806101013549 |
| 16x16x6 | 16166SG | 22 lbs | |
| 24x8x6 | 2486SG | 20 lbs | |
| 24x18x6 | 24186SG | 33 lbs | 806101013563 |
| 24x24x6 | 24246SG | 41 lbs | 806101013570 |
| 30x30x6 | 30306SG | 62 lbs | |
| 36x36x6 | 36366SG | 113 lbs | |
| 8x8x8 | 888SG | 8 lbs | 806101013587 |
| 12x12x8 | 12128SG | 16 lbs | 806101013594 |
| 18x8x8 | 1888SG | 5 lbs | |
| 16x16x8 | 16168SG | 25 lbs | |
| 18x18x8 | 18188SG | 29 lbs | 806101013600 |
| 20x20x8 | 20208SG | 35 lbs | |
| 24x24x8 | 24248SG | 50 lbs | 806101013617 |
| 30x24x8 | 30248SG | 60 lbs | 806101013624 |
| 36x20x8 | 36208SG | 58 lbs | |
| 30x30x8 | 30308SG | 65 lbs | 806101013648 |
| 36x24x8 | 36248SG | 64 lbs | 806101013631 |
| 36x30x8 | 36308SG | 76 lbs | 806101013655 |
| 46x24x8 | 46248SG | 79 lbs | |
| 36x36x8 | 36368SG | 122 lbs | |
| 18x18x10 | 181810SG | 33 lbs | 806101013662 |
| 30x24x10 | 302410SG | 60 lbs | 806101013686 |
| 30x30x10 | 303010SG | 71 lbs | 806101013709 |
| 36x24x10 | 362410SG | 69 lbs | 806101013693 |
| 36x30x10 | 363010SG | 82 lbs | 806101013716 |
| 36x36x10 | 363610SG | 130 lbs | |
| 48x48x10 | 484810SG | 210 lbs | |
| 12x12x12 | 121212SG | 21 lbs | |
| 18x18x12 | 181812SG | 36 lbs | 806101013723 |
| 24x24x12 | 242412SG | 54 lbs | 806101013730 |
| 32x18x12 | 321812SG | 56 lbs | |
| 30x30x12 | 303012SG | 76 lbs | 806101013747 |
| 36x24x12 | 362412SG | 75 lbs | |
| 32x32x12 | 323212SG | 85 lbs | |
| 36x30x12 | 363012SG | 88 lbs | |
| 36x36x12 | 363612SG | 139 lbs | 806101013754 |
| 48x24x12 | 482412SG | 95 lbs | |
| 48x28x12 | 482812SG | 106 lbs | |
| 42x42x12 | 424212SG | 183 lbs | |
| 48x36x12 | 483612SG | 176 lbs | |
| 48x48x12 | 484812SG | 222 lbs | |
| 60x60x12 | 606012SG | 328 lbs | |
| 24x24x16 | 242416SG | 64 lbs | |
| 36x36x16 | 363616SG | 162 lbs | |
| 48x48x16 | 484816SG | 246 lbs | |
| 24x24x18 | 242418SG | 68 lbs | |
| 36x24x18 | 362418SG | 91 lbs | |
| 36x36x18 | 363618SG | 167 lbs | |
| 48x24x18 | 482418SG | 93 lbs | |
| 48x36x18 | 483618SG | 208 lbs | |
| 48x48x18 | 484818SG | 258 lbs | |
| 24x24x24 | 242424SG | 81 lbs | |
| 36x36x24 | 363624SG | 194 lbs | |
| 48x36x24 | 483624SG | 239 lbs | |
| 48x48x24 | 484824SG | 294 lbs | |
| 60x48x24 | 604824SG | 341 lbs | |
| 60x60x24 | 606024SG | 418 lbs | |
| 36x36x36 | 363636SG | 248 lbs | |
| 48x30x36 | 483036SG | 197 lbs | |
| 48x36x36 | 483636SG | 302 lbs | |
| 48x48x36 | 484836SG | 366 lbs | |
| 18x1x86 | 18186SG | 26 lbs | 806101013556 |
