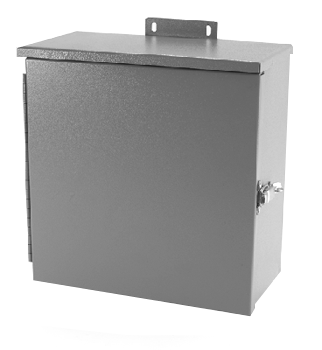

TYPE 3R PAINTED SMALL HINGED COVER ENCLOSURE

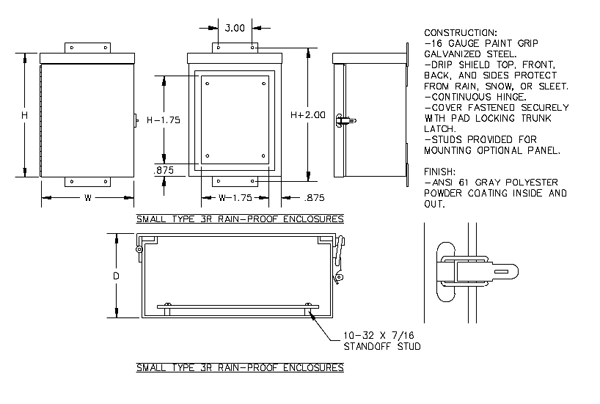

Construction:
  • COVER FASTENED SECURELY WITH PADLOCKING WING KNOB
  • DRIP SHIELD TOP, FRONT, SIDES AND BACK PROTECT FROM FALLING RAIN, SNOW, OR SLEET
  • CODE GAUGE PAINT GRIP GALVANIZED STEEL
  • STUDS PROVIDED FOR MOUNTING OPTIONAL PANEL
  • CONTINUOUS HINGE
Finish:
  • ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL

Outdoor use to provide a degree of protection against falling rain; undamaged by the formation of ice on the enclosure.

DOWNLOAD SPEC SHEET

SKU: RES Categories: ,

For large quantities or custom sizes call factory
Enclosure Size HxWxDCatalog NumberWeightUPC_12Digit
6x6x4664RES7 lbs806101034599
8x6x4864RES7 lbs806101034605
8x8x4884RES8 lbs
10x10x410104RES9 lbs
12x12x412124RES14 lbs
6x6x6666RES7 lbs
8x8x6886RES8 lbs806101034612
10x8x61086RES10 lbs806101015321
10x10x610106RES12 lbs806101015338
12x10x612106RES13 lbs806101015345
12x12x612126RES15 lbs806101015352
14x12x614126RES13 lbs806101034629
10x10x810108RES13 lbs
12x12x812128RES18 lbs
12x12x10121210RES22 lbs
12x12x12121212RES22 lbs
