TYPE 4X FIBERGLASS HINGED SCREW COVER ENCLOSURE
TYPE 4X FIBERGLASS HINGED SCREW COVER ENCLOSURE - Image 2
,

TYPE 4X FIBERGLASS HINGED SCREW COVER ENCLOSURE

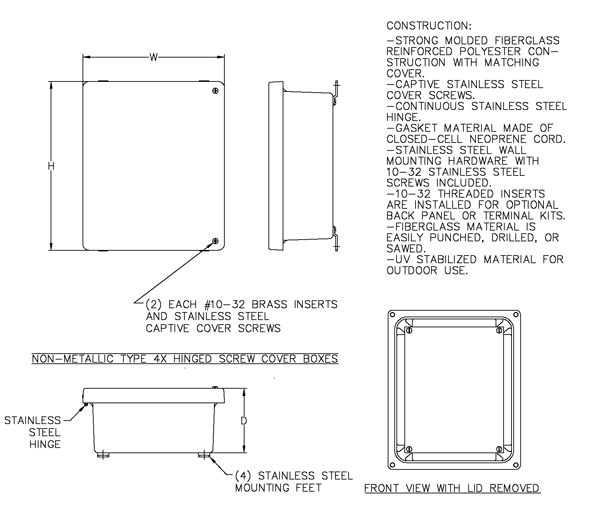

Construction:
  • CONTINUOUS STAINLESS STEEL HINGE
  • UV STABILIZED MATERIAL FOR OUTDOOR USE
  • FIBERGLASS MATERIAL IS EASILY PUNCHED, DRILLED OR SAWED
  • 10-32 THREADED INSERTS ARE INSTALLED FOR OPTIONAL BACK PANEL OR TERMINAL KITS
  • STAINLESS STEEL WALL MOUNTING HARDWARE WITH 10-32 STAINLESS STEEL SCREWS INCLUDED
  • GASKET MATERIAL MADE OF CLOSED-CELL NEOPRENE CORD
  • CAPTIVE STAINLESS STEEL SCREWS
  • STRONG MOLDED FIBERGLASS REINFORCED POLYESTER CONSTRUCTION WITH MATCHING COVER
Finish:
  • Fiberglass

Either indoor or outdoor use to provide a degree of protection against falling rain, splashing water, hose directed water; undamaged by the formation of ice on the enclosure; resists corrosion.

DOWNLOAD SPEC SHEET

Select your size
SKU: NJHSC Categories: ,

For large quantities or custom sizes call factory
Enclosure Size HxWxDCatalog NumberWeightUPC_12Digit
6x6x4NJHSC6644 lbs806101027584
8x6x4NJHSC8644 lbs806101027591
10x8x6NJHSC10866 lbs806101027553
12x10x6NJHSC121068 lbs806101027560
14x12x6NJHSC1412612 lbs806101027577
